275A Battery Bus Bar M8 M4 Power Distribution Block for LiFePO4 Battery Systems
Description
Simplify your battery system wiring with the LiTime 275A Battery Bus Bar. Designed for high-current DC power distribution, this bus bar supports up to 275A continuous current and is compatible with 12.8V, 25.6V, 38.4V, 48V, and 51.2V battery systems, making it suitable for a wide range of LiFePO4 energy storage applications.
Featuring an M8 + M4 dual-terminal design, nickel-plated purple copper conductors, stainless steel fasteners, and a UL94-V0 flame-retardant housing, it helps centralize battery and load connections, reduce wiring complexity and connection loss, and improve long-term system reliability. Ideal for solar storage, RV, marine, off-grid, mobile surveillance, and multi-battery power systems.
Key Features:
- 275A continuous current capacity for medium and high-current systems
- Wide voltage compatibility: 12.8V / 25.6V / 38.4V / 48V / 51.2V

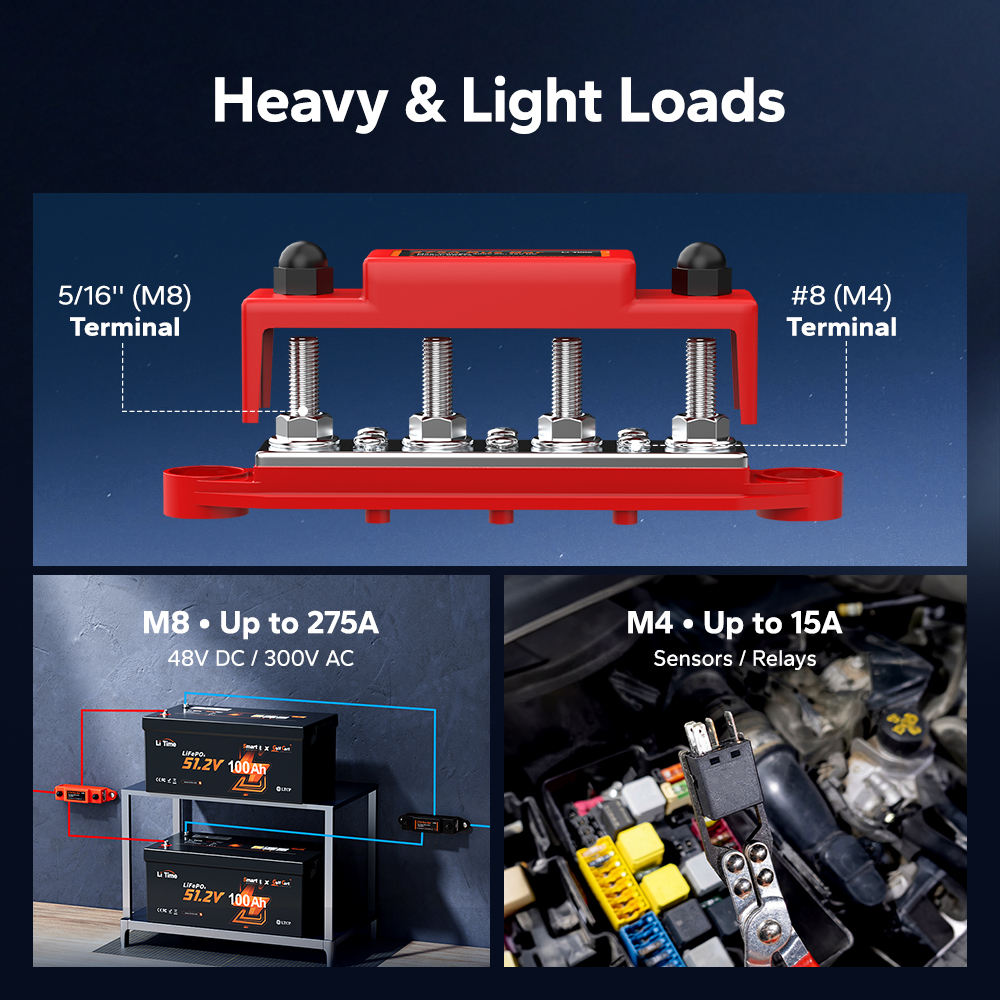

- M8 + M4 dual-terminal design for main and auxiliary connections

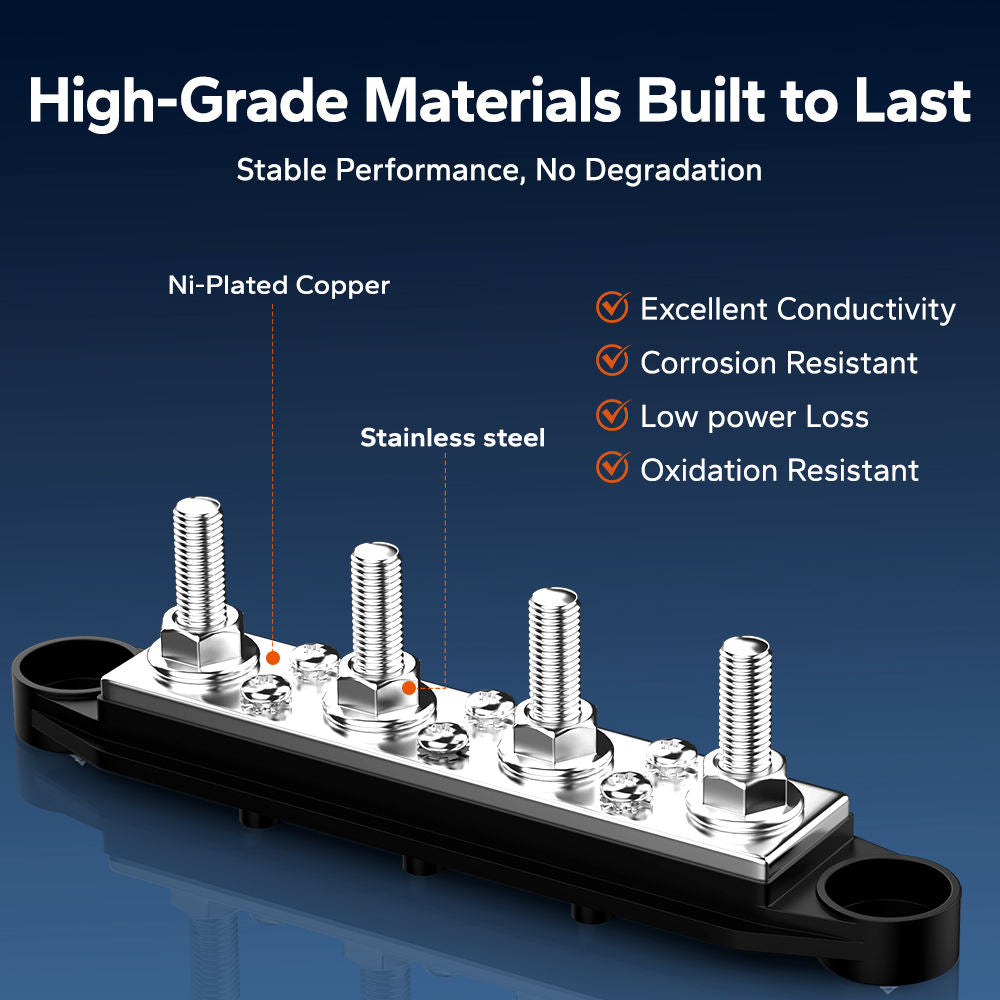

- Nickel-plated purple copper for good conductivity and corrosion resistance
- Stainless steel fasteners for stable long-term connections

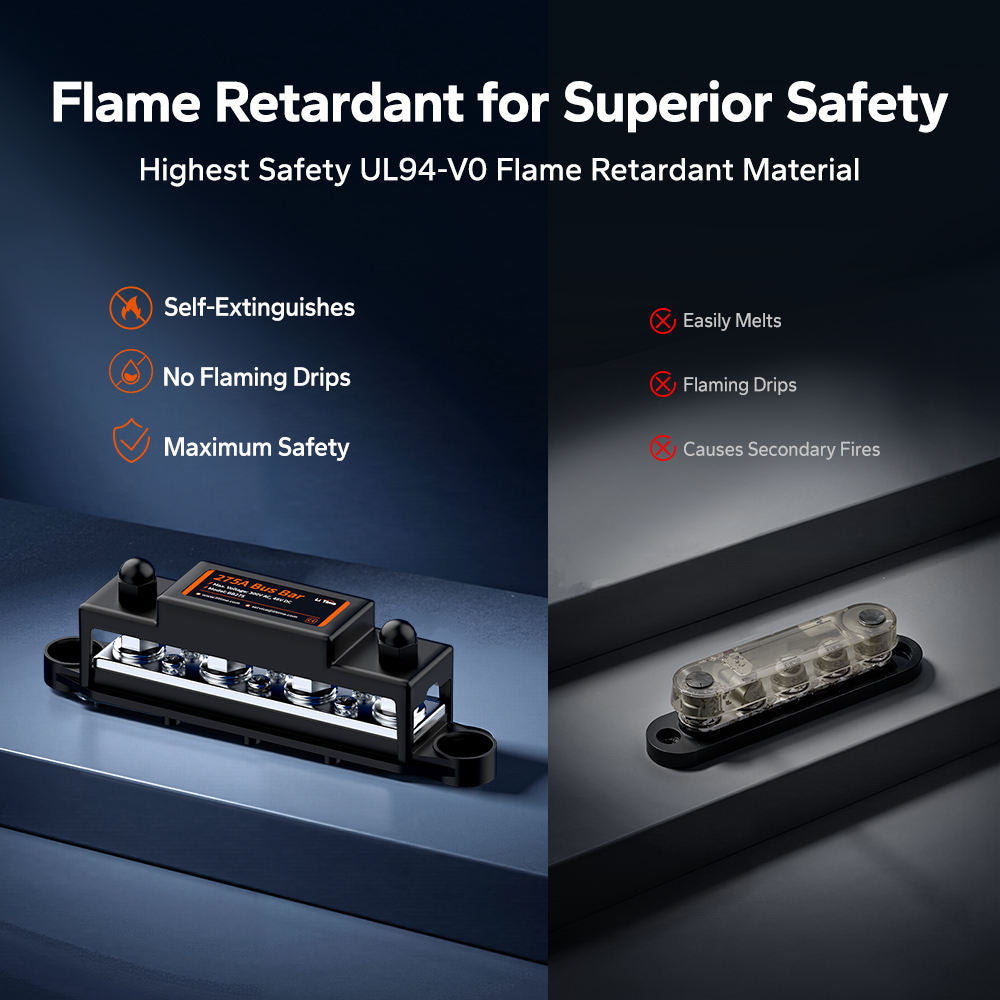

- UL94-V0 flame-retardant housing for enhanced safety

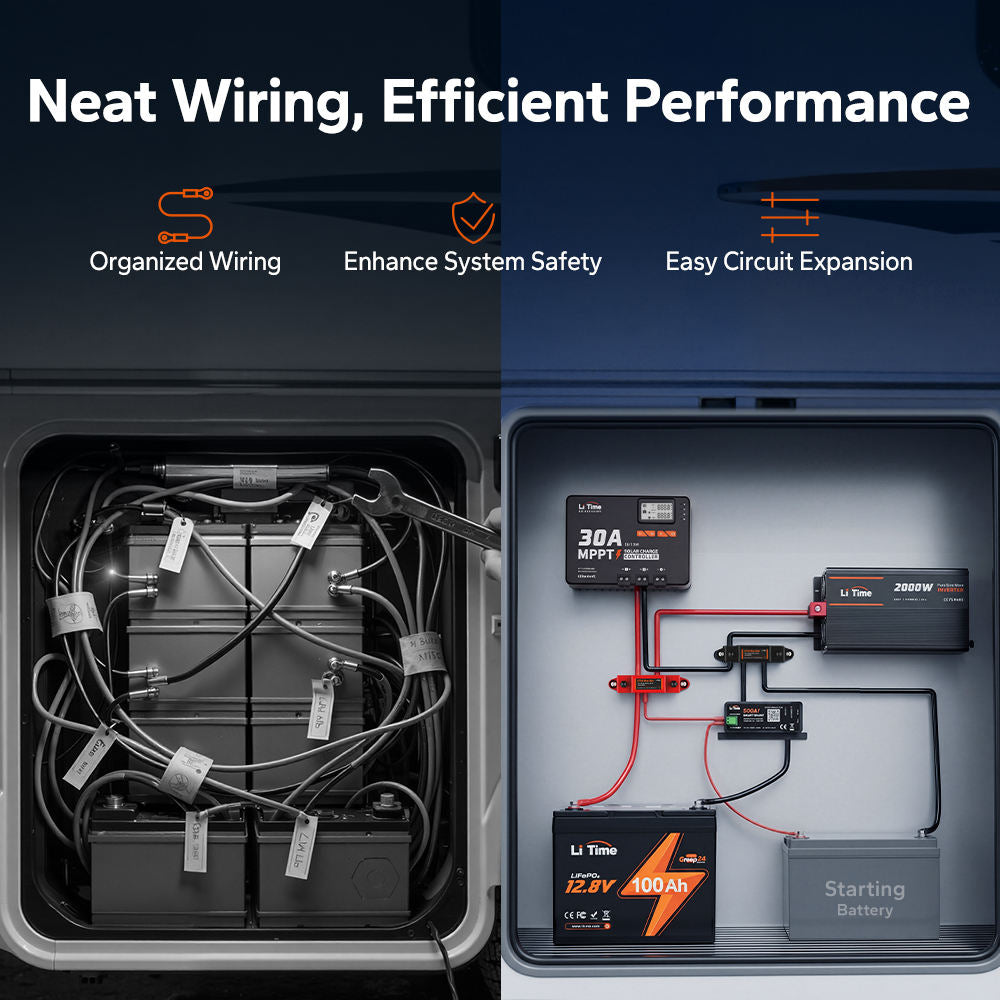

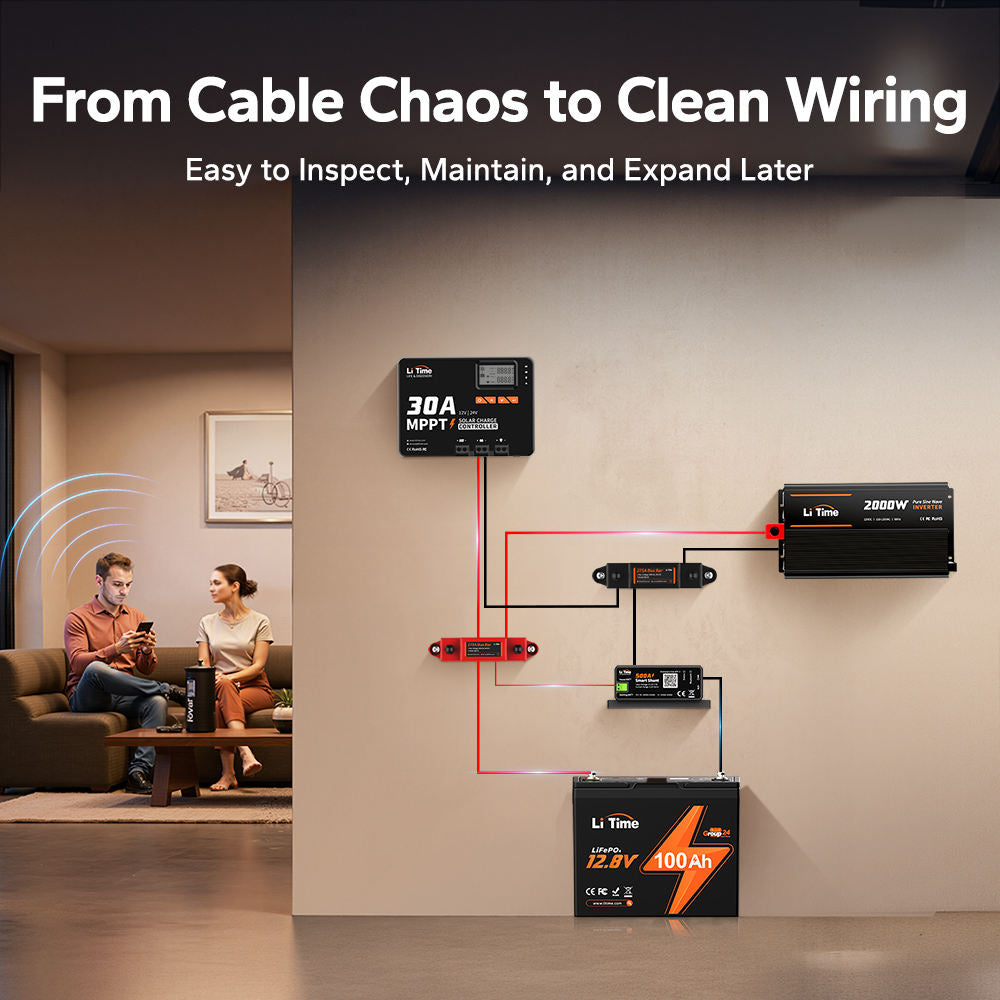

- Helps create cleaner, simpler, and more organized battery wiring
- Ideal for LiFePO4 battery systems, solar storage, RV, marine, off-grid, and security power applications
Specification Of 275A Battery Bus Bar M8 M4 Power Distribution Block for LiFePO4 Battery Systems
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Bus Bar Specification | Max. Operating Voltage | 48V |
| Compatible Battery System Voltage | 12.8V / 16V / 25.6V / 38.4V / 48V / 51.2V | |
| Max. Continuous Current | 275A | |
| Terminal Size | M8 | |
| Bus Bar Material | Nickel-Plated Copper | |
| Bolt Material | Stainless Steel | |
| General Specification | Net Weight | 1.01 lbs / 0.46 kg |
| Dimensions | 166 × 34 × 49.9 mm / 6.54 × 1.34 × 1.96 in | |
| Color | Black and Red | |
