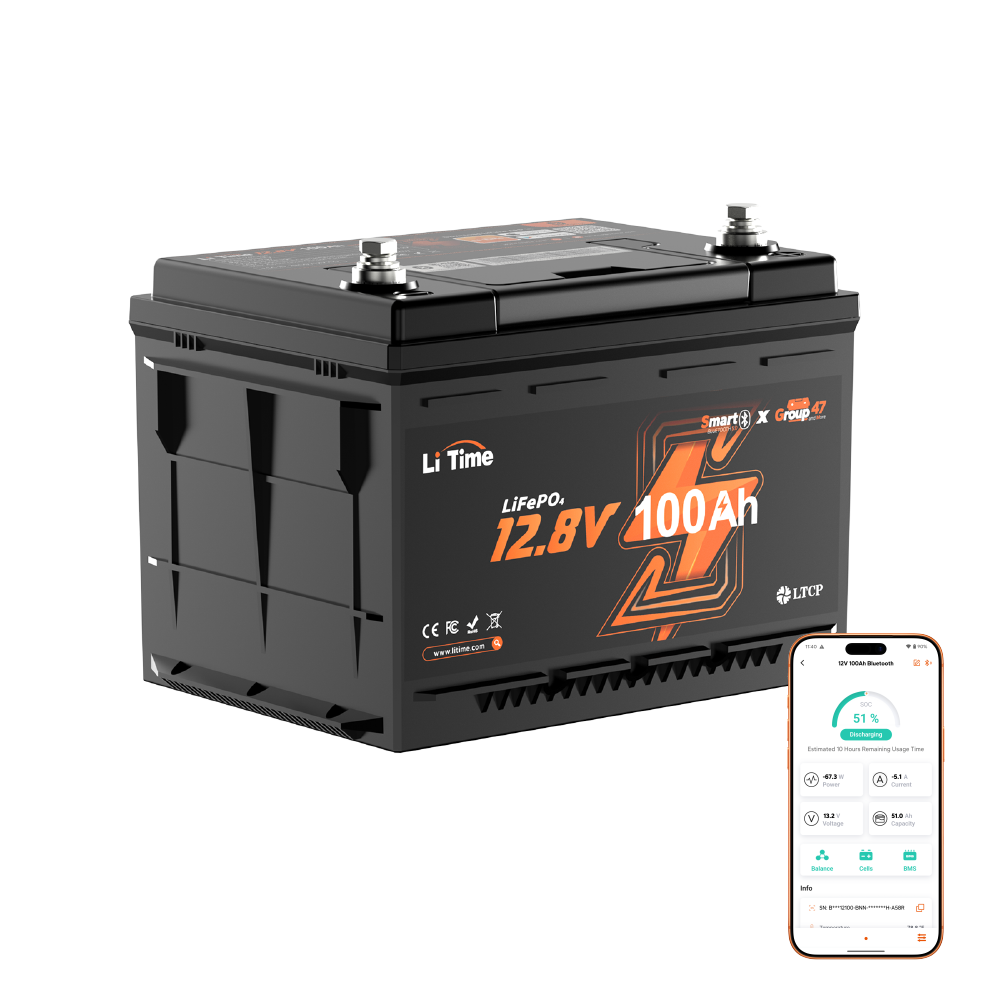

LiTime 12V 100Ah Group 47 (DIN H5) Bluetooth LiFePO4 Battery


Compact 12V 100Ah LiFePO4 battery designed for European RVs, marine systems and off-grid applications where installation height and battery compartment space are limited.

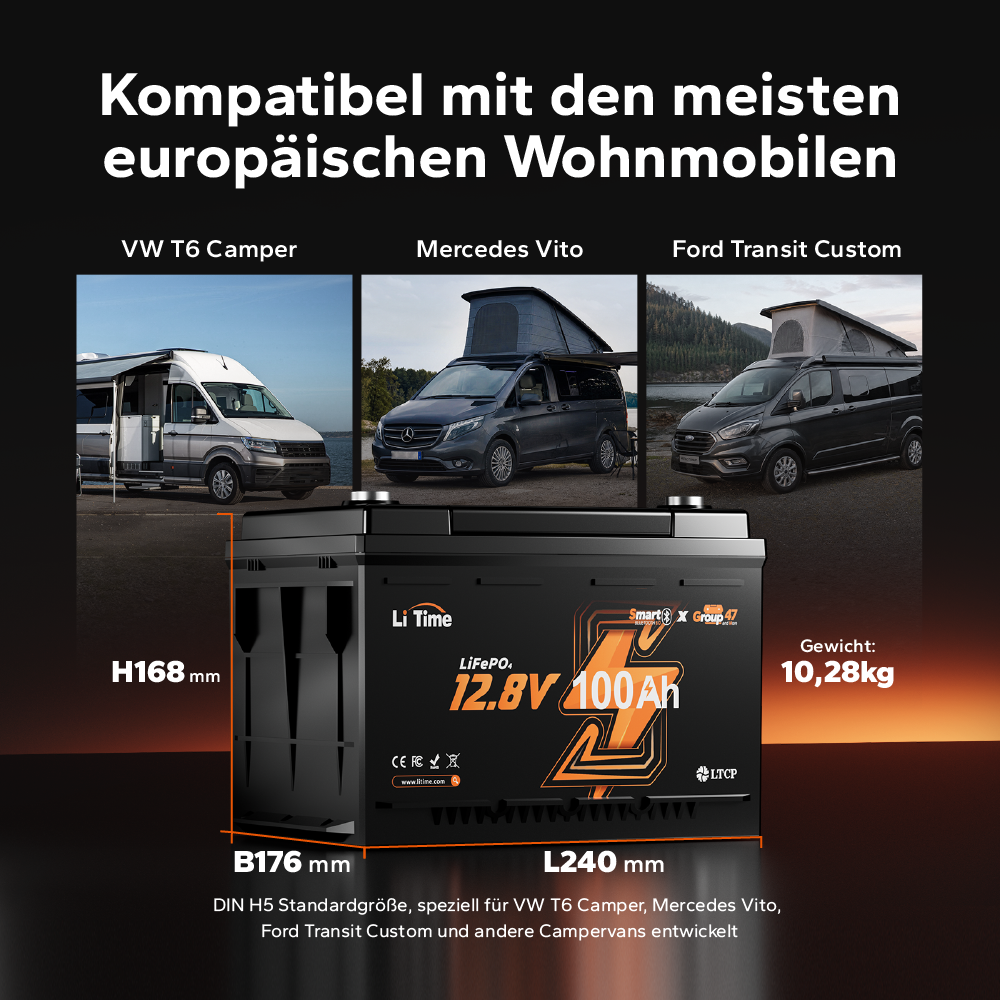

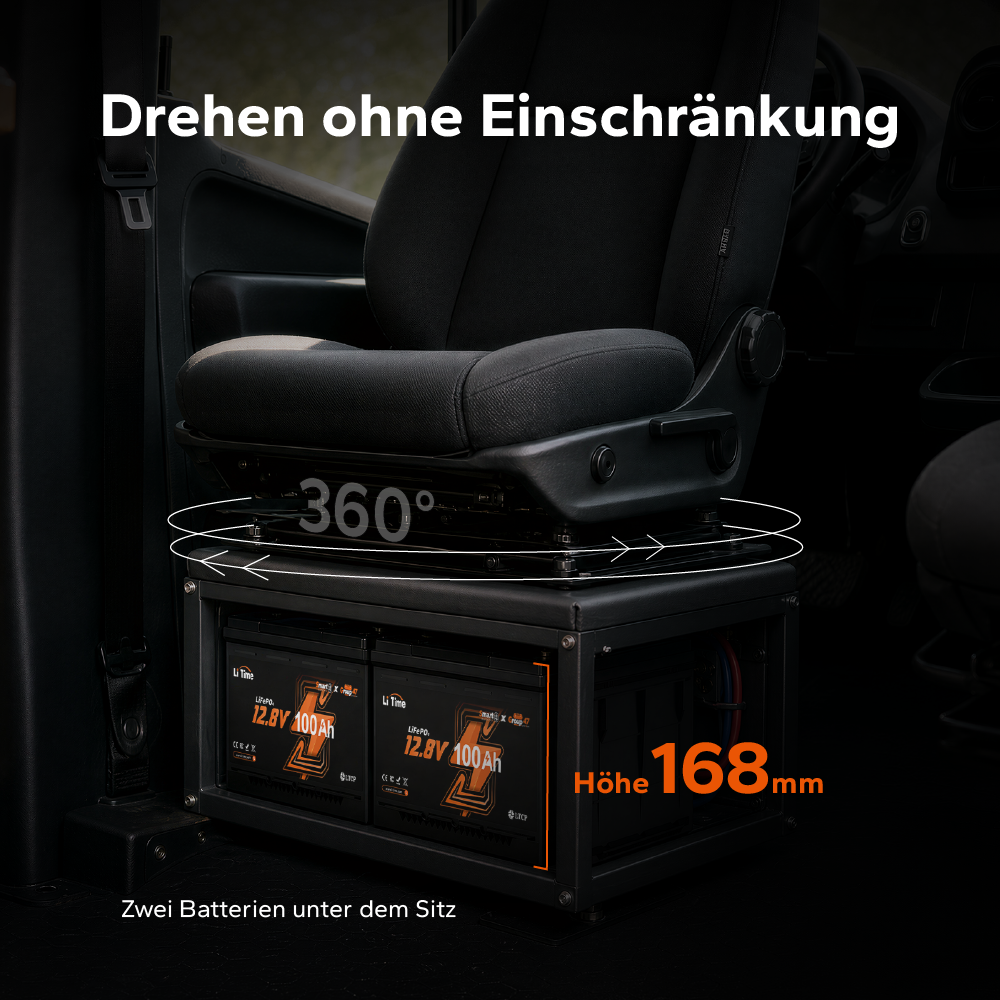

Group 47 / DIN H5 Fit: 240 × 176 × 168 mm compact size with only 168 mm height, suitable for European RV battery compartments and under-seat installations.
Bluetooth Monitoring: Check battery status, SOC, voltage, current and temperature more conveniently through Bluetooth monitoring.
1280Wh Energy Capacity: 12.8V 100Ah battery provides 1280Wh energy with 100A continuous discharge capability for common RV and marine loads.
Low-Temperature Protection: Charging cuts off at 0°C / 32°F and recovers at 5°C / 41°F, helping protect the battery during cold-weather use.
Scalable 4P4S System: Supports up to 4 batteries in series and 4 in parallel, allowing expansion for larger RV, marine and off-grid power systems.
Long-Life LiFePO4 Design: 4000+ cycle life and 5-year warranty support help reduce long-term replacement frequency.
IP65 Protected Housing: Durable ABS enclosure with IP65 protection supports reliable use in RV, marine and outdoor energy applications.


Specification Of LiTime 12V 100Ah Group 47 (DIN H5) Bluetooth LiFePO4 Battery

CHARACTERISTICS PARAMETERS
Basic Specification Nominal Voltage 12.8V
Nominal Capacity 100Ah
Nominal Energy 1280Wh
Internal Resistance ≤40mΩ
Function Bluetooth
Max. Continuous Output Power 1280W
BMS Board 100A
Max. Batteries in Series and Parallel 4P4S
System Max. Extended Power 20.48kW
System Max. Extended Energy 20.48kWh
Charge Specification Max. Continuous Charging Current 100A(1C)
Recommended Charging Current 20A(0.2C)
Recommended Charging Voltage 14.4±0.2V
Discharge Specification Max. Continuous Discharging Current 100A(1C)
Peak Discharging Current 500A(5C)
Environment Specification Storage Temperature Range -10℃ to 50 ℃ / 14℉ to 122 ℉
Recommended Storage Temperature 10℃ to 35 ℃ / 50℉ to 95 ℉
Charging Temperature Range 0℃ to 50 ℃ / 32℉ to 122 ℉
Discharging Temperature Range -20℃ to 60 ℃ / -4℉ to 140 ℉
Mechanical Specification Dimension L9.45*6.93*6.61 inch /240*176*168mm
Weight 10.28kg/22.66lbs
Terminal Type M8*16 mm
Terminal Torque 13±1 N·m
Case Material ABS
IP Rating IP65
Cell Type-chemistry LiFePO4
BCI Group47
Safety Specification Protection Over-temperature
Low-temperature cut-off
Over-discharge
Over-current
Over-voltage
Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.



Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.



Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

FAQ

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.
