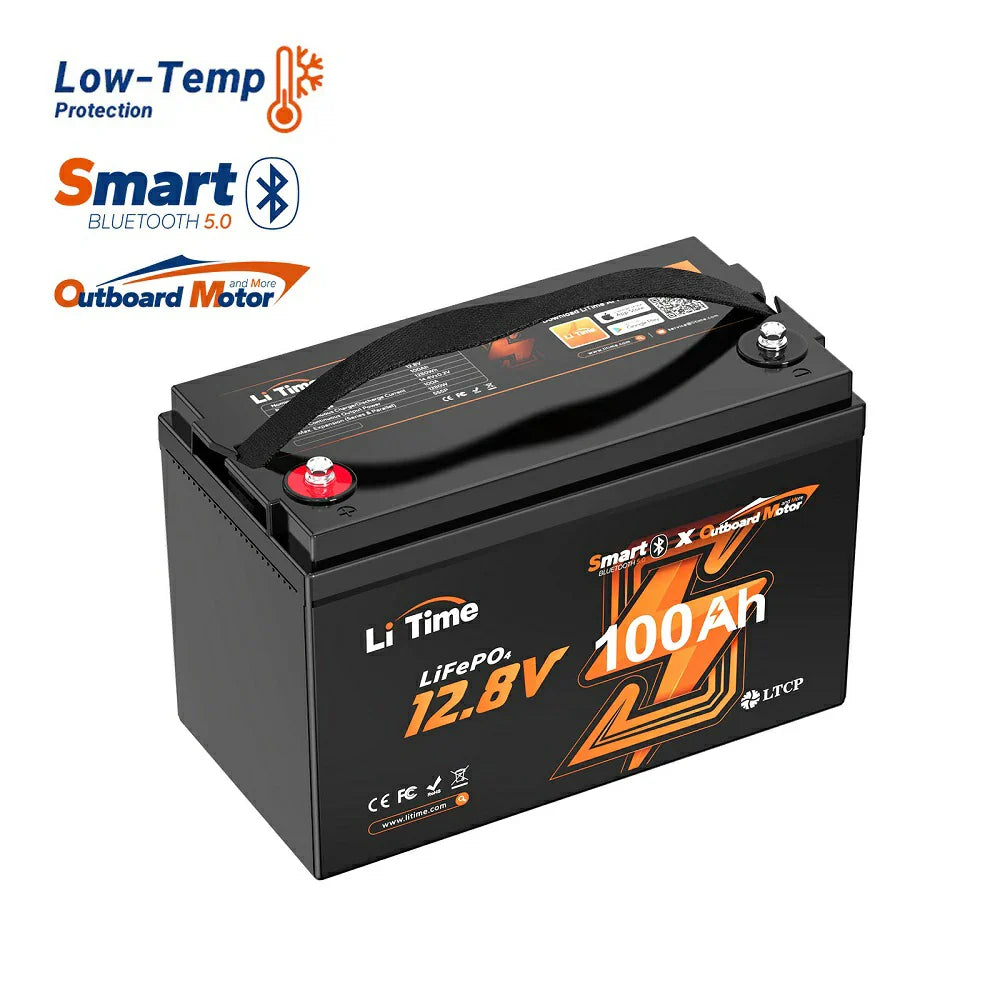

LiTime 12V 100Ah Bluetooth LiFePO4 Battery for Marine Outboard Motor RV and Off Grid Systems
1. Smart Bluetooth 5.0 Monitoring
Built-in Bluetooth 5.0 enables convenient battery status monitoring through a smartphone, allowing users to check battery performance and operating conditions more efficiently.
2. 1280Wh Power with 100A BMS
12.8V 100Ah capacity provides 1280Wh energy and up to 1280W continuous output, supported by a built-in 100A BMS for reliable charge and discharge protection.
3. Designed for Marine & Outboard Motor Applications
Developed for marine batteries and electric outboard motors, while also supporting trolling motors, RVs, camping and residential energy storage applications.
4. Low-Temperature Charge & Discharge Protection
Automatically stops charging at 0°C / 32°F and discharging at -20°C / -4°F, helping protect the battery when operating in cold environments.
5. Expandable up to 32kWh
Supports configurations up to 5P5S, providing a maximum system voltage of approximately 60V and system energy capacity up to 32kWh for larger power requirements.
6. 4000-Cycle Service Life & 5-Year Warranty
Designed for 4000 deep cycles and backed by a 5-year warranty, reducing replacement frequency for commercial and long-term applications.
7. IP65 Durable ABS Housing
The IP65-rated ABS enclosure provides protection against dust and water exposure, making the battery suitable for demanding marine, RV and outdoor environments.
8. High-Power Discharge Capability
Supports 100A continuous discharge and up to 500A peak discharge for 1 second, providing additional current capability for demanding startup and transient loads.
Specification Of LiTime 12V 100Ah Bluetooth LiFePO4 Battery for Marine Outboard Motor RV and Off Grid Systems
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 1280Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 1280W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 5P5S | |
| System Max. Extended Power | 32kW | |
| System Max. Extended Energy | 32kWh | |
| Charge Specification | Max. Continuous Charging Current | 100A |
| Recommended Charging Current | 20A | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 500A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ ~ 50℃ (14°F ~ 122°F) |
| Recommended Storage Temperature | 10℃ ~ 35℃ (50°F ~ 95°F) | |
| Charging Temperature Range | 0℃ ~ 50℃ (32°F ~ 122°F) | |
| Discharging Temperature Range | -20℃ - 60℃ (-4°F - 140°F) | |
| Mechanical Specification | Dimension | L13*W6.77*H8.5 inch /330*172*216mm |
| Weight | Approx. 22.58 lbs/10.24kg | |
| Terminal Type | M8*16mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | Group31 | |
| Safety Specification | Certifications | FCC,CE,RoHS,UN38.3 |
| Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
|
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
