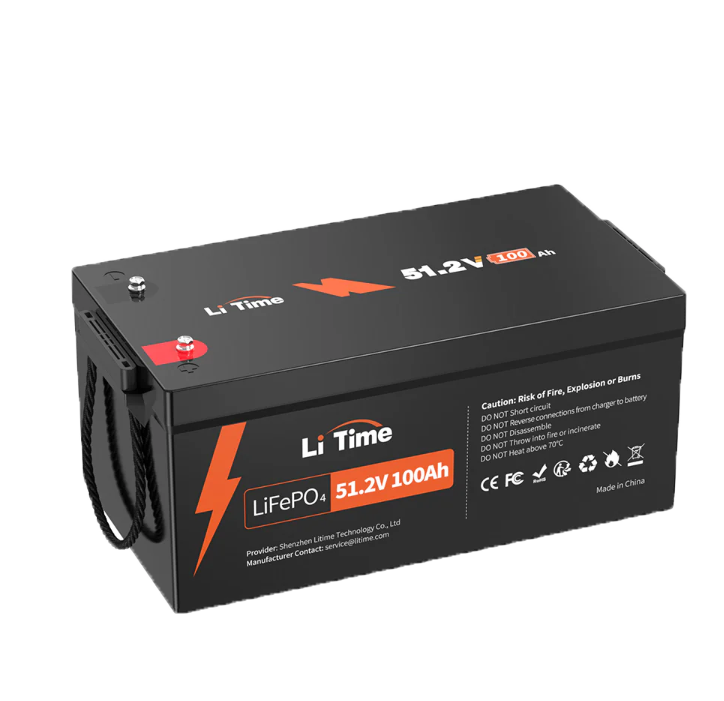

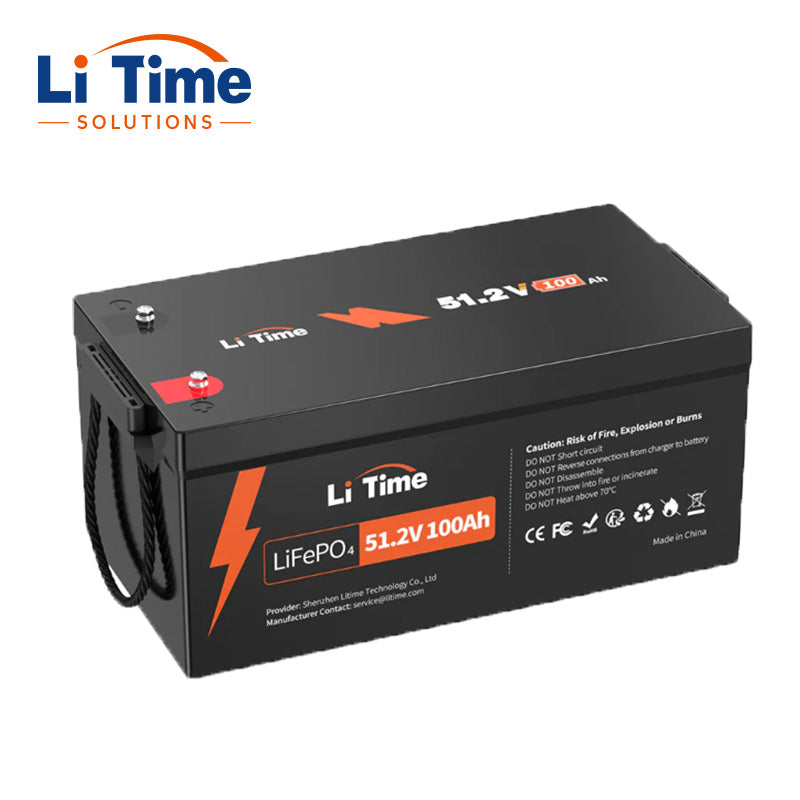

51.2V 100Ah BASIC LiFePO4 Battery with 4P Parallel Expansion IP65 Protection
Power your solar storage, off-grid and backup power systems with LiTime 51.2V 100Ah BASIC LiFePO4 Battery. This prismatic lithium iron phosphate battery delivers stable 51.2V DC power with reliable energy density, providing clean and consistent electricity for solar energy storage, off-grid power systems, backup power and other energy storage applications.
Featuring a 100Ah rated capacity with 5120Wh total energy, up to 4000 deep cycles, and 100A continuous charge/discharge current with 400A instantaneous discharge capability, it supports 4P parallel connection to scale up your energy capacity as needed. Built-in multiple protection functions, IP65 protection rating, and a wide operating temperature range ensure safe, stable and long-lasting performance in various working environments.
Key Features:
- 51.2V 100Ah prismatic LiFePO4 battery with 5120Wh total energy for reliable power supply
- Up to 4000 deep cycle life for long service life and low long-term cost

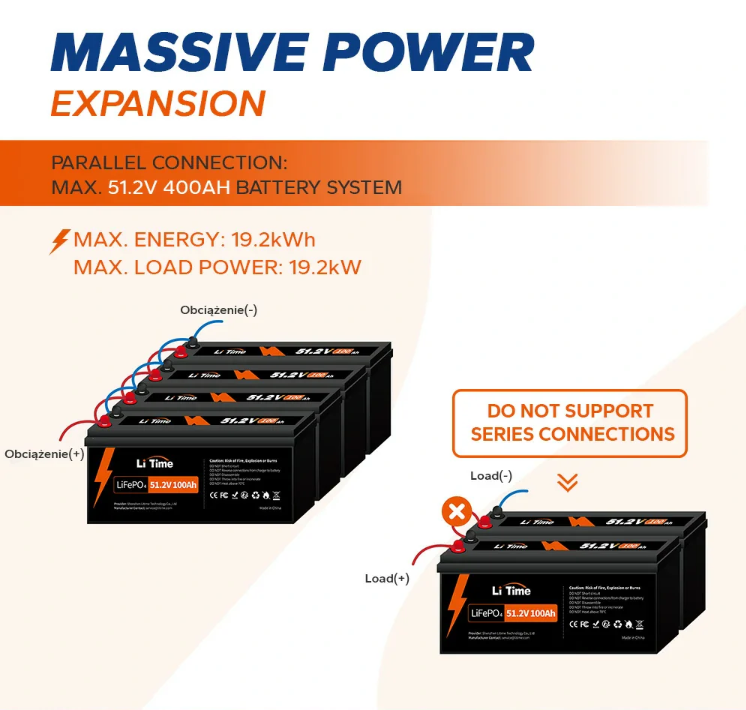

- Supports 4P parallel connection for flexible energy capacity expansion
- 100A continuous charge/discharge & 400A peak discharge for diverse load demands
- Built-in multiple protections & IP65 protection rating for safe and dependable operation
- Ideal for solar energy storage, off-grid power systems, backup power and other energy storage applications
Specification Of 51.2V 100Ah BASIC LiFePO4 Battery with 4P Parallel Expansion IP65 Protection
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 5120Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Basic | |
| Max. Continuous Output Power | 5120W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 4P1S | |
| System Max. Extended Power | 20480W | |
| System Max. Extended Energy | 20480Wh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 57.6±0.8V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 400A(4C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |

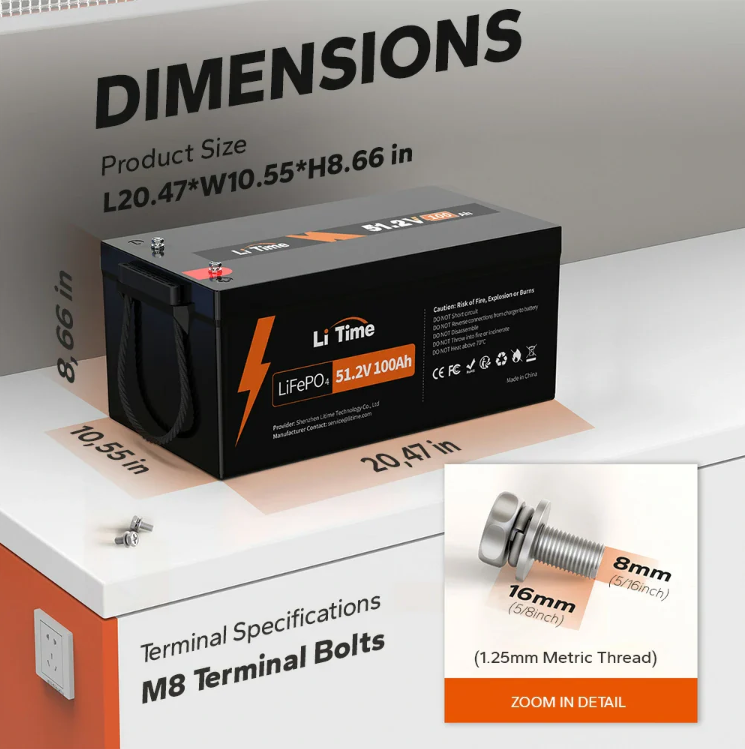

| Mechanical Specification | Dimension | Approx. 520*268*220mm/20.47*10.55*8.66inch |
| Weight | Approx. 75.13 lbs/34.39kg | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 106.2 to 123.9 inch·lbs | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | group8D | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Over-discharge Over-current Over-voltage Short-circuit |
|
