51.2V 100Ah Bluetooth LiFePO4 Battery for Agricultural Automation Equipment
High-capacity 51.2V LiFePO4 battery designed for smart agriculture, agricultural transporters, automated farm machinery and greenhouse mobile equipment
· Built for Smart Agriculture: Provides stable 51.2V power for agricultural transporters, automated machinery, greenhouse mobile equipment and other farm automation platforms.
· 5120Wh High Capacity: Delivers reliable energy for long operating hours, helping equipment run longer across farms, orchards, plantations and greenhouse environments.

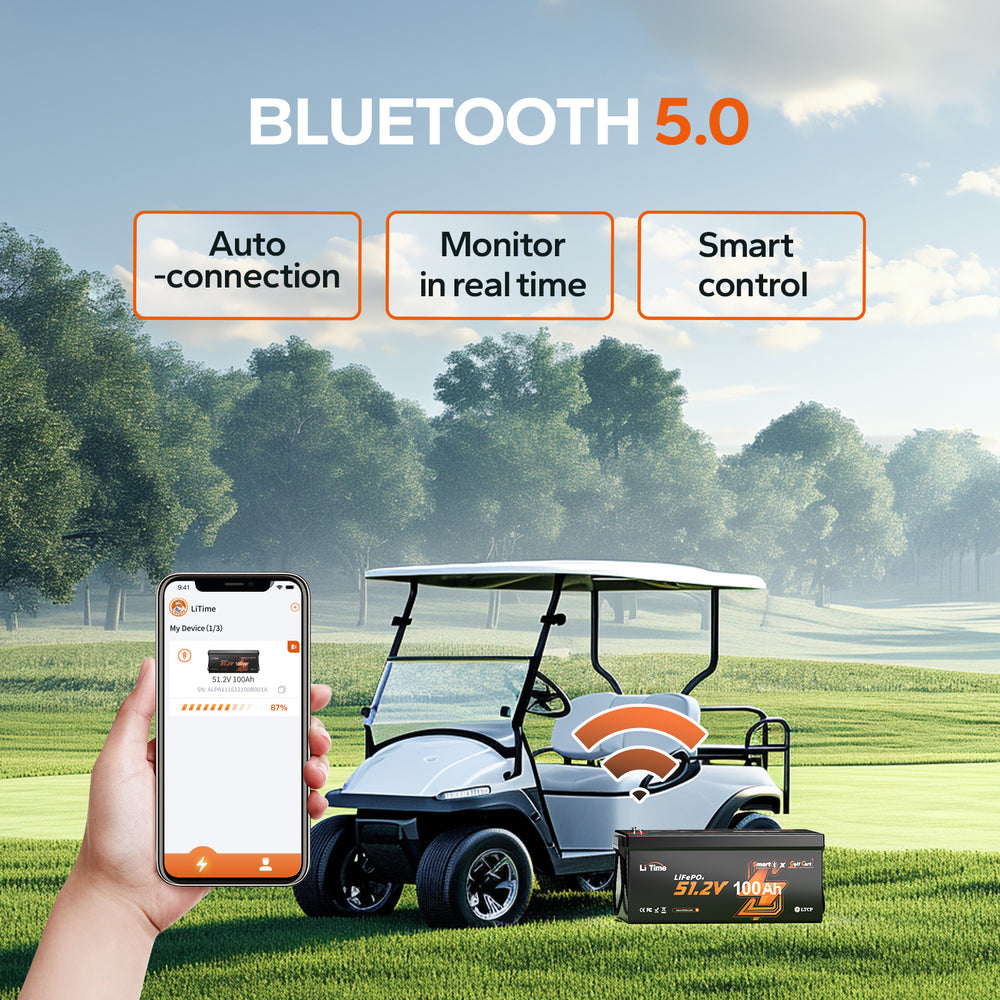

· Smart Bluetooth Monitoring: Easily check battery status, voltage, current, temperature and capacity through the LiTime App, improving field maintenance efficiency.

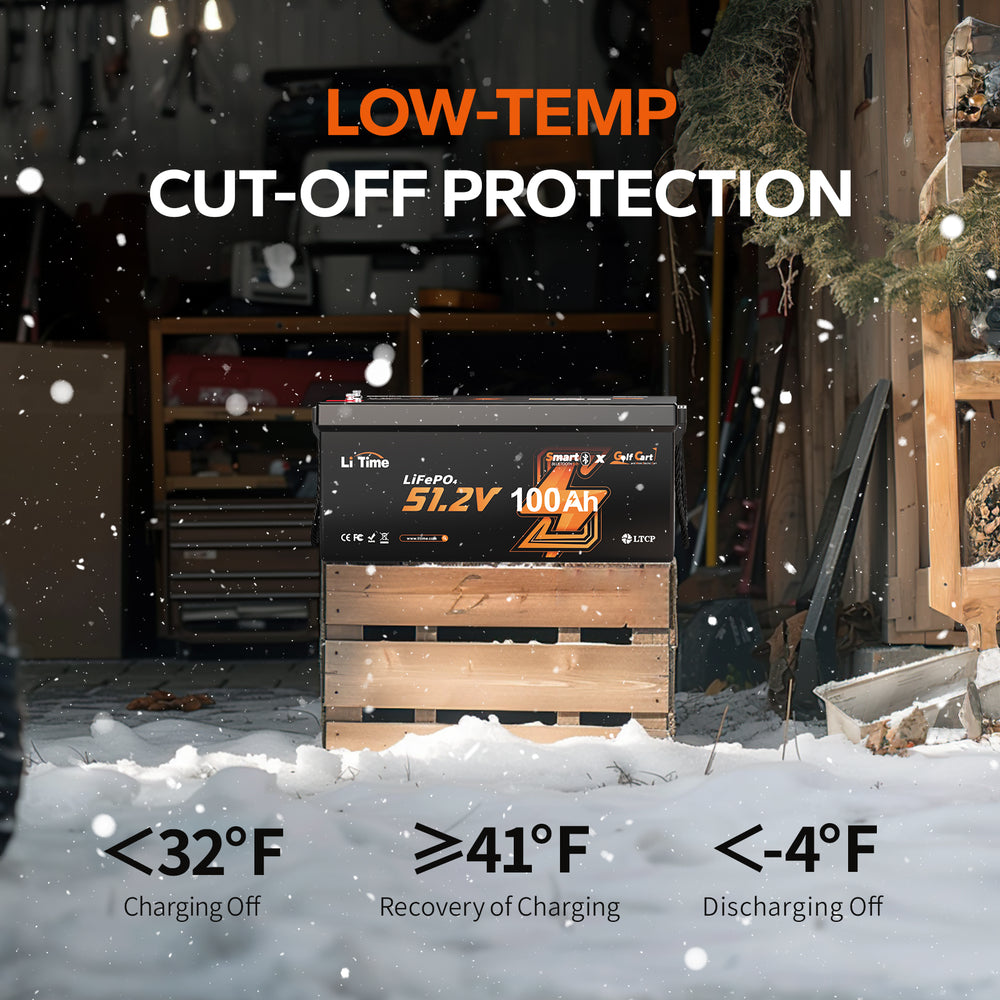

· 200A BMS Protection: Advanced protection against overcharge, over-discharge, over-current, short circuit, high temperature and low-temperature charging.
· 4000+ Cycles Lifespan: Built with LiFePO4 technology for long service life, reducing battery replacement frequency and long-term maintenance costs.
· High Output for Heavy-Duty Use: Supports 100A continuous discharge and up to 600A peak discharge for frequent start-stop operation and demanding agricultural workloads.
· Expandable 48V Platform: Supports up to 4 batteries in parallel, allowing equipment manufacturers to scale capacity for different runtime and load requirements.
· Rugged Outdoor Design: IP65-rated housing helps protect against dust, water and harsh outdoor working conditions in farms, orchards and open-field environments.
· Wide Applications: Ideal for agricultural transporters, smart farm machinery, greenhouse mobile equipment, inspection vehicles, irrigation support systems and robotics in agriculture.
Specification Of 51.2V 100Ah Bluetooth LiFePO4 Battery for Agricultural Automation Equipment
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 51.2V |
| Nominal Capacity | 100A | |
| Nominal Energy | 5120Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 5120W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 4P1S | |
| System Max. Extended Power | 20.48Kw | |
| System Max. Extended Energy | 20.48Kwh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 57.6±0.8V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 600A(6C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L23.43*W12.99*H11.81 inch /595&330*300mm |
| Weight | 36.25Kg | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | Group 8D | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
