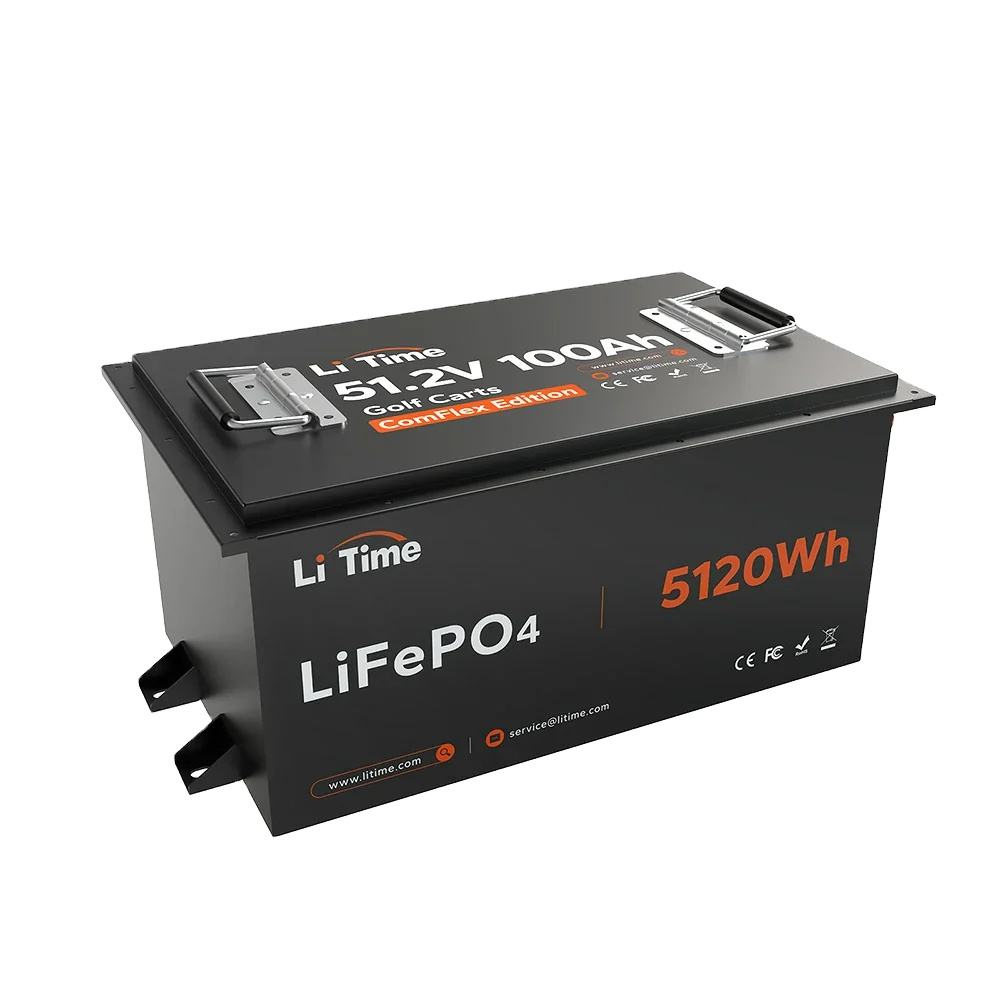

LiTime 51.2V 100Ah ComFlex LiFePO4 Battery with CAN & RS485 for Agricultural Robots and Smart Farm Machinery
Communication-ready 51.2V LiFePO4 battery designed for agricultural robots, smart farm machinery, agricultural AMRs and automation equipment requiring system-level integration
· Built for Robotics in Agriculture: Provides stable 51.2V power for agricultural robots, autonomous transporters, smart farm machinery and greenhouse mobile equipment.
· CAN & RS485 Communication: Supports data interaction with vehicle controllers, external displays, remote monitoring platforms and whole-machine control systems.
· Real-Time Battery Visibility: Enables monitoring of voltage, current, SOC, temperature, system status and protection status to support smarter equipment management.
· 5120Wh High Capacity: Delivers reliable energy for long operating hours across farms, orchards, plantations and greenhouse environments.
· 200A BMS Protection: Advanced protection against overcharge, over-discharge, over-current, short circuit, high temperature and low-temperature charging.
· High Output for Frequent Start-Stop Use: Supports 100A continuous discharge and up to 600A peak discharge for demanding agricultural workloads and mobile equipment.
· Expandable 48V Platform: Supports up to 8 batteries in parallel, helping equipment manufacturers scale capacity for different runtime, load and integration requirements.
· Rugged SPCC Housing: Durable steel housing and IP66-rated protection help improve reliability in dusty, wet and outdoor agricultural working conditions.
· Wide Applications: Ideal for agricultural robots, smart farm machinery, agricultural AMRs, autonomous transporters, greenhouse mobile equipment and intelligent inspection vehicles.
Specification Of LiTime 51.2V 100Ah ComFlex LiFePO4 Battery with CAN & RS485 for Agricultural Robots and Smart Farm Machinery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 51.2V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 5120Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | ComFlex | |
| Max. Continuous Output Power | 5120W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 8P1S | |
| System Max. Extended Power | 40960KW | |
| System Max. Extended Energy | 40960KWh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 57.6±0.8V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 600A(6C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L25.87*W18.31*H14.37 inch /657*465*365mm |
| Weight | Approx. 98.57 lbs/44.71kg | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | SPCC | |
| IP Rating | IP66 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
