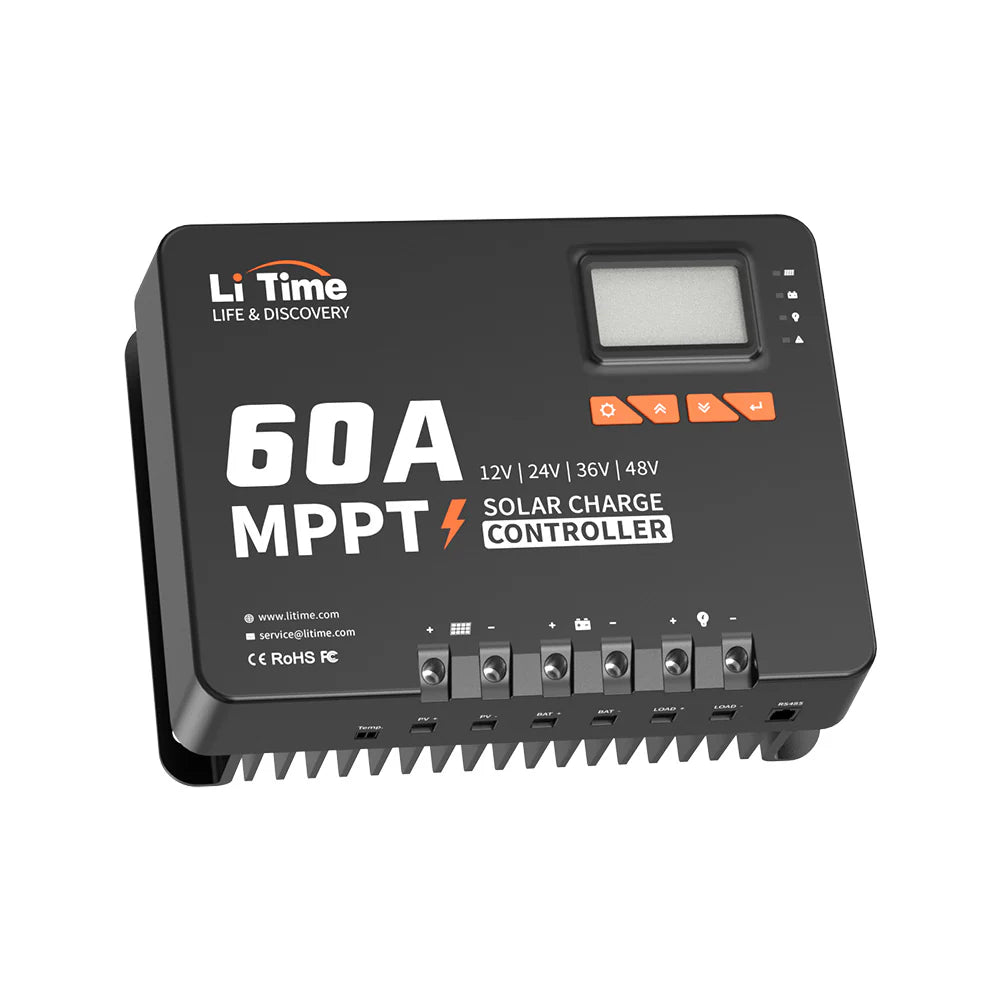

48V 60A MPPT 12V/24V/36V/48V Bluetooth Solar Charge Controller


【Advanced 99% Tracking Technology】LiTime's 60A MPPT Solar Charge Controller features advanced Maximum Power Point Tracking technology that continuously tracks the array's maximum power point, ensuring maximum power is utilized to charge the battery. The tracking efficiency is no less than 99%, and the peak conversion efficiency is up to 97%.

【Bluetooth Function】The LiTime 12V/24V/36V/48V MPPT Controller equipped with a built-in Bluetooth module, customers do not need to purchase another Bluetooth module, which can achieve remote control and display usage information.

【LCD Screen & LED Indicators】The LiTime MPPT controller is equipped with an LCD screen that displays system operation information and 4 buttons to navigate the menus. Multiple LED indicators display the status of the solar panel array, battery, loads, and controller.

【Excellent Heat Dissipation & Multiple Protections】Constructed with die-cast aluminum, the LiTime MPPT controller provides excellent heat dissipation to reduce power loss. Additionally, multiple protections are built-in to ensure the controller is fully protected from Reverse Connection, Overpower, Overvoltage, Short-circuit, and Over-temperature.

【Compatible with Multiple Batteries】The LiTime MPPT controller is compatible with Sealed, Gel, and Lead-Acid batteries by adjusting the parameters. It also features LiFePO4 Battery Charging Mode, making it easy to charge LiFePO4 batteries.

【Additional Components】The copper wire connector equipped in the accessory can increase the contact area between the wire and MPPT during installation, increasing the ability to transmit current.

Specification Of 48V 60A MPPT 12V/24V/36V/48V Bluetooth Solar Charge Controller

CHARACTERISTICS PARAMETERS
Battery & System Specification Nominal System Voltage 12V / 24V / 36V / 48V (Auto)
Battery Voltage Range 9–64VDC
Rated Charging Current 60A
Rated Load Current 20A
Solar Input Specification Max. PV Open Circuit Voltage 150VDC
Max. PV Input Power 900W at 12V / 1800W at 24V / 2600W at 36V / 3200W at 48V
Performance & Communication Communication Bluetooth
Conversion Efficiency 97%
No-load Current 10mA at 12V / 6mA at 24V / 5mA at 36V / 4mA at 48V
General Specification IP Rating IP32
Net Weight 10.03 lbs / 4.55 kg
Dimensions 308 × 210 × 102.7 mm / 12.13 × 8.27 × 4.04 in
Color Black
