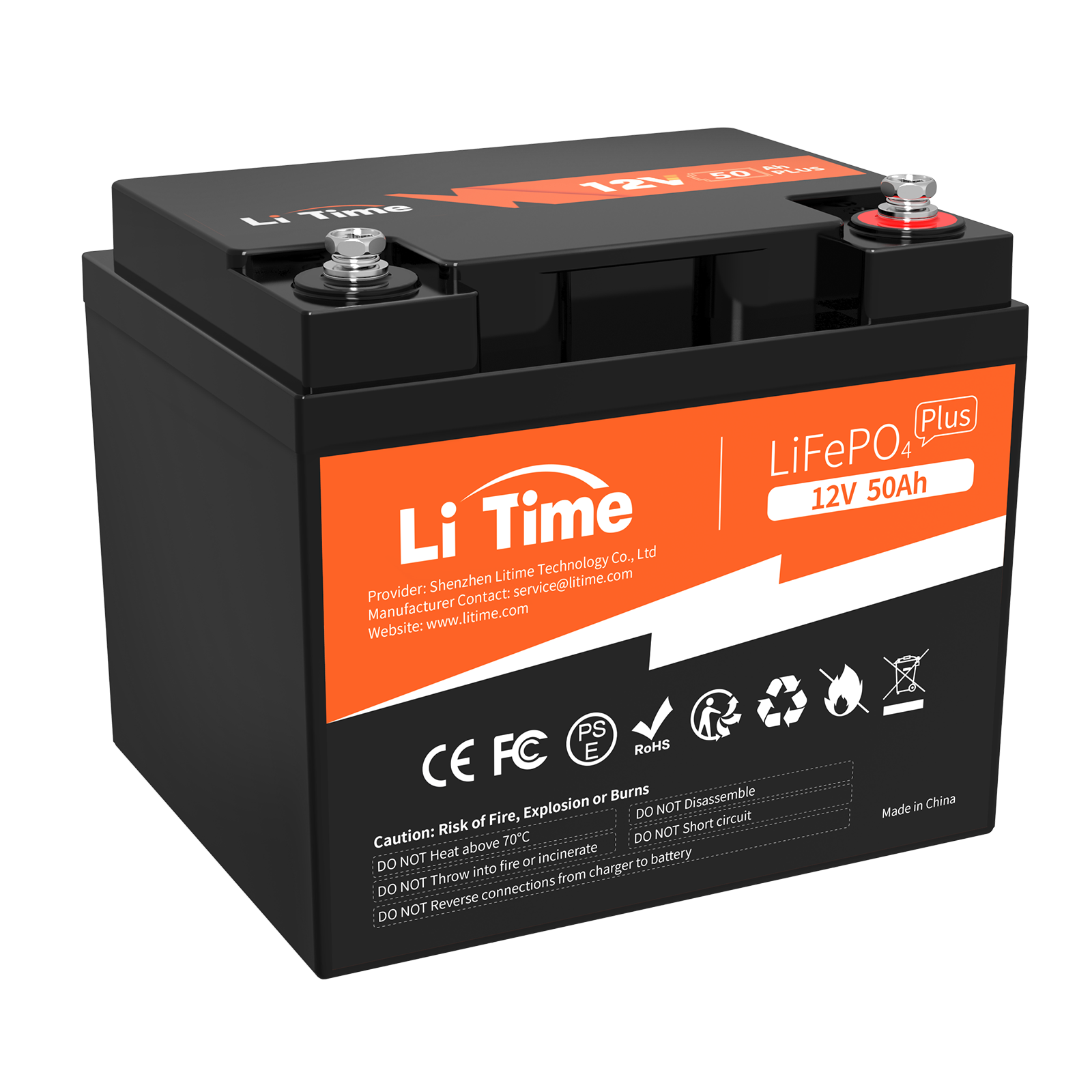

Compact 12V 50Ah Deep Cycle LiFePO4 Battery for Marine, RV and Scalable Power Systems
1. 640Wh Reliable Power
12.8V 50Ah capacity with 640Wh energy and 640W continuous output for deep-cycle applications.
2. 50A BMS Protection
Built-in 50A BMS provides reliable battery management for stable daily operation.
3. 4000-Cycle Service Life
Designed for 4000 deep cycles, reducing replacement frequency and long-term operating costs.
4. Compact & Lightweight Design

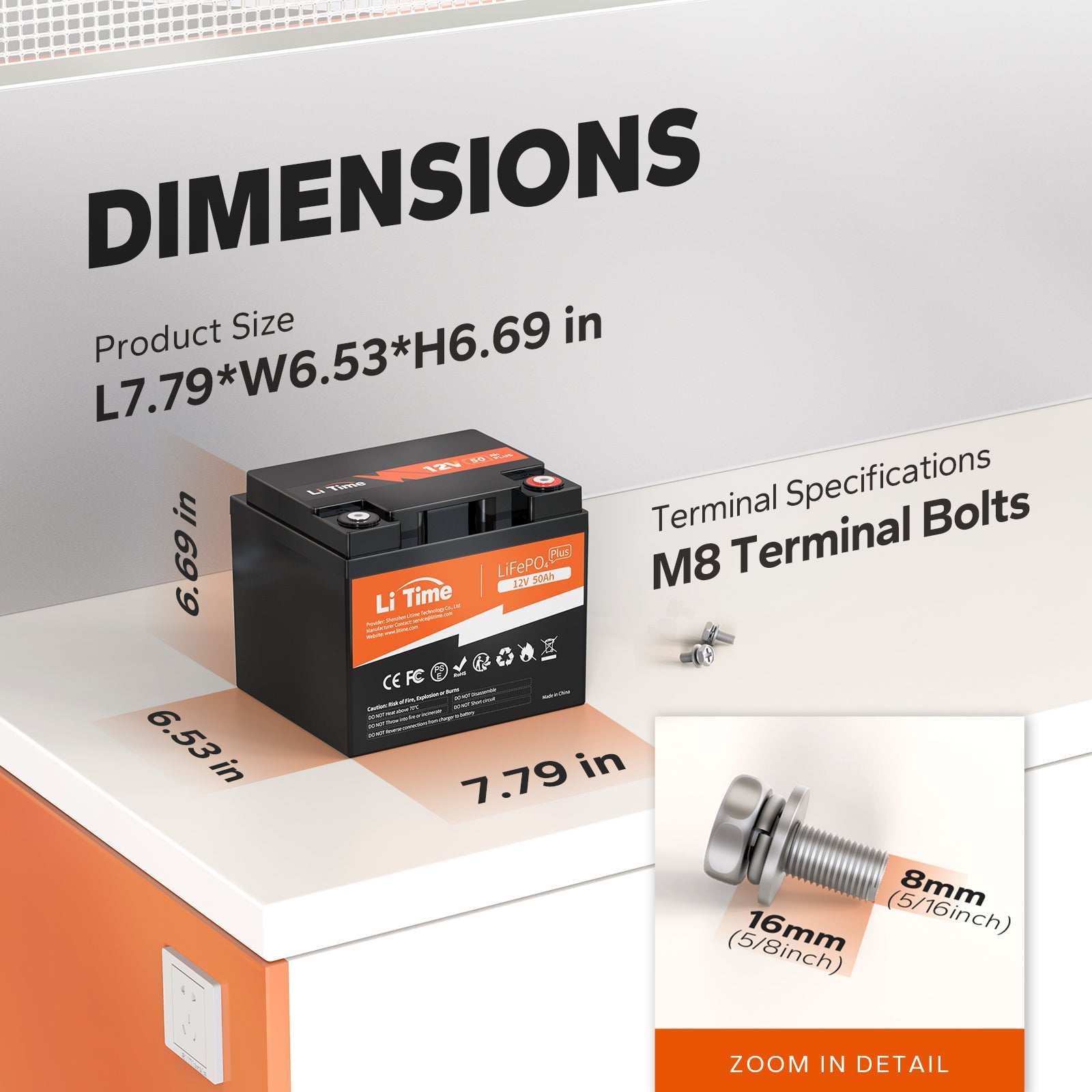

Only 5.29kg / 11.66lbs, with a compact 195 × 166 × 172mm footprint for space-efficient installation.
5. Expandable up to 10.24kWh
Supports 4S4P configuration, allowing scalable systems up to 10.24kWh for larger power requirements.
6. IP65 Durable Protection
IP65-rated ABS housing supports reliable use in marine, RV and outdoor power applications.
Specification Of Compact 12V 50Ah Deep Cycle LiFePO4 Battery for Marine, RV and Scalable Power Systems
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Mechanical Specification | Weight | 11.66lbs/5.29kg |
| Terminal Type | M8*14 mm | |
| Terminal Torque | 106.2 to 123.9 | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
|
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
