LiTime 100A MPPT 12V/24V/36V/48V Bluetooth Solar Charge Controller


LiTime MPPT’s Revolutionary Upgrade – Smarter, Safer, and More User-Friendly.

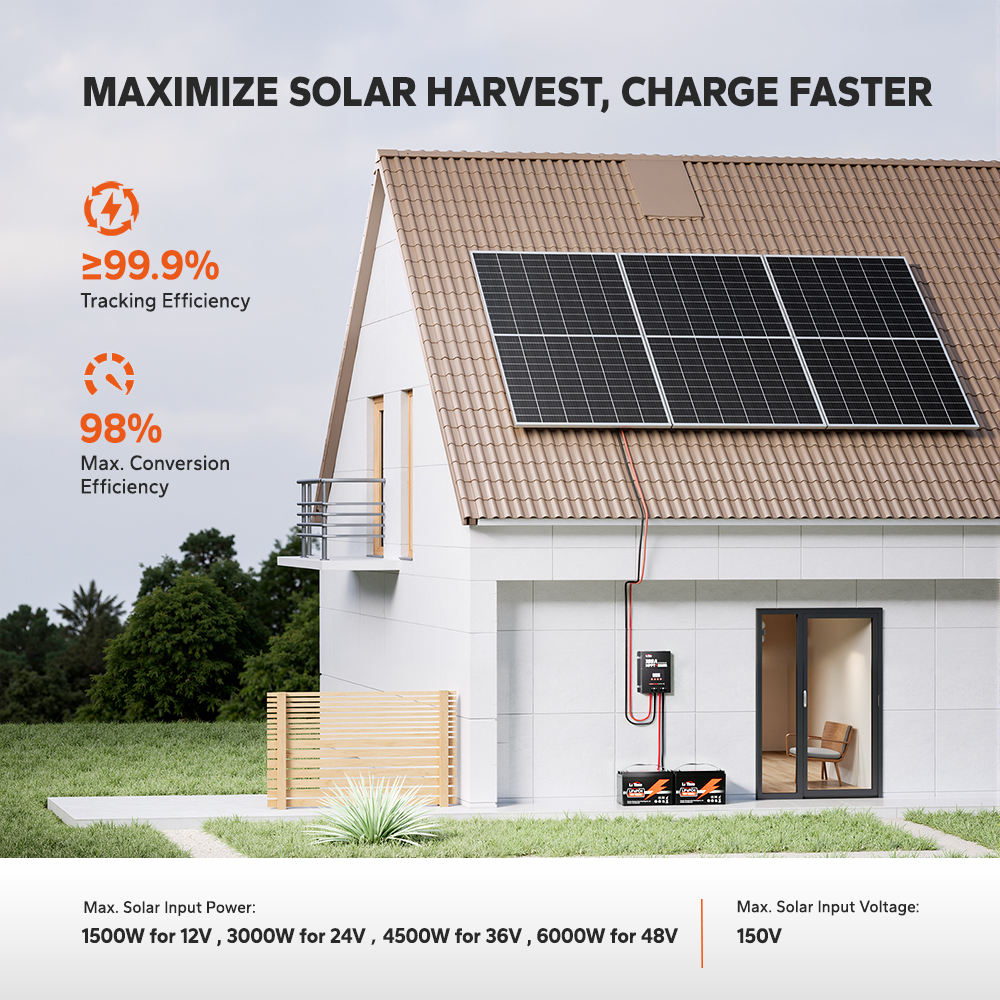

Maximized Energy Efficiency: >99.9% tracking efficiency & 98% peak conversion efficiency, converting every ray of sunlight into usable power. With 30% higher tracking efficiency than PWM, it ensures optimal charging, even on cloudy days.
Upgraded-Secure Bluetooth Monitor: Real-time tracking, history review, and parameter adjustments via your phone. Advanced password protection prevents data tampering.

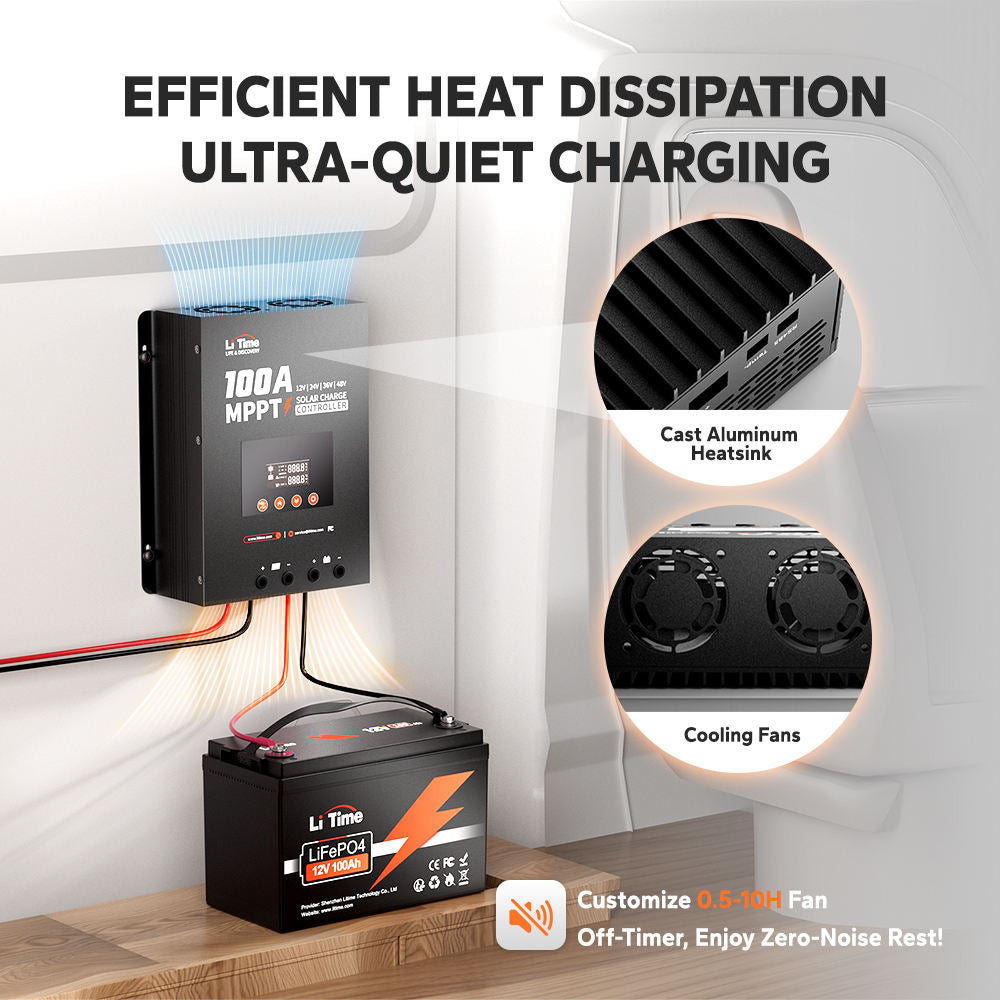

Dual Cooling & Newly Silent Mode: Customizes 0.5-10H fan shut-off time, so enjoy your ultra-quiet naps! Aluminum heatsink & cooling fan, ensure stable operation.

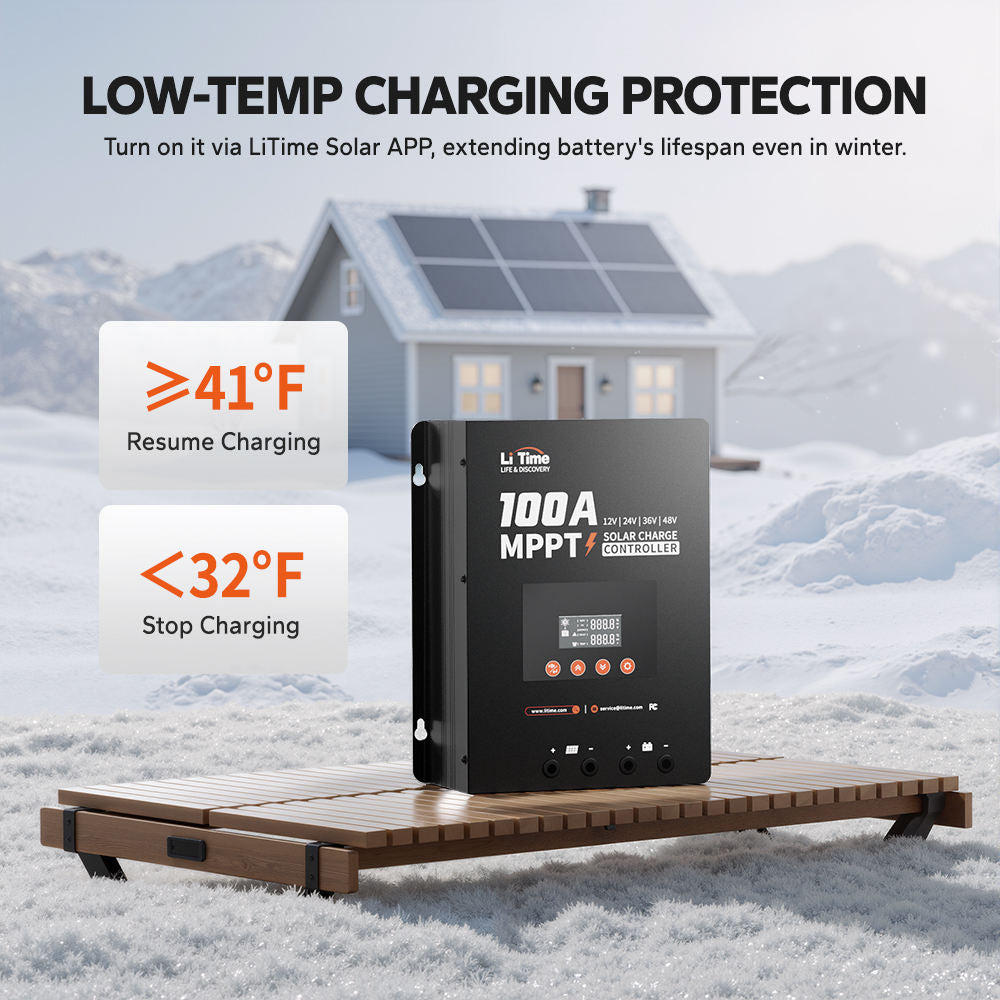

Low-Temp Charging Protection: Automatically cuts off charging at <32℉, and resumes at ≥41℉, preventing battery damage and extending its lifespan.
All-Around Protection: 8 levels of safety protection, including PV over voltage, night anti-reverse charging, PV reverse polarity, etc. Supports smarter charging modes to enhance battery safety.
Backlit LCD Screen: Built-in LCD with adjustable backlight, providing real-time info with clear visibility day or night.
Wide Compatibility: Compatible with 12V/24V/36V/48V systems and various battery types, including LI, SEL, GEL, FLD, USE.
Power Anywhere, Anytime: Perfect for off-grid, home storage, solar systems, and RVs, enabling a complete solar solution.

Specification Of LiTime 100A MPPT 12V/24V/36V/48V Bluetooth Solar Charge Controller

CHARACTERISTICS PARAMETERS
Battery & System Specification Nominal System Voltage 12V / 24V / 36V / 48V
Battery Voltage Range 9–64VDC
Rated Charging Current 100A
Solar Input Specification Max. PV Open Circuit Voltage 150VDC
Max. PV Input Power 1500W at 12V / 3000W at 24V / 4500W at 36V / 6000W at 48V
Performance & Communication Communication Bluetooth
Conversion Efficiency 98%
No-load Power Consumption <1W
General Specification IP Rating IP21
Net Weight 5.49 lbs / 2.49 kg

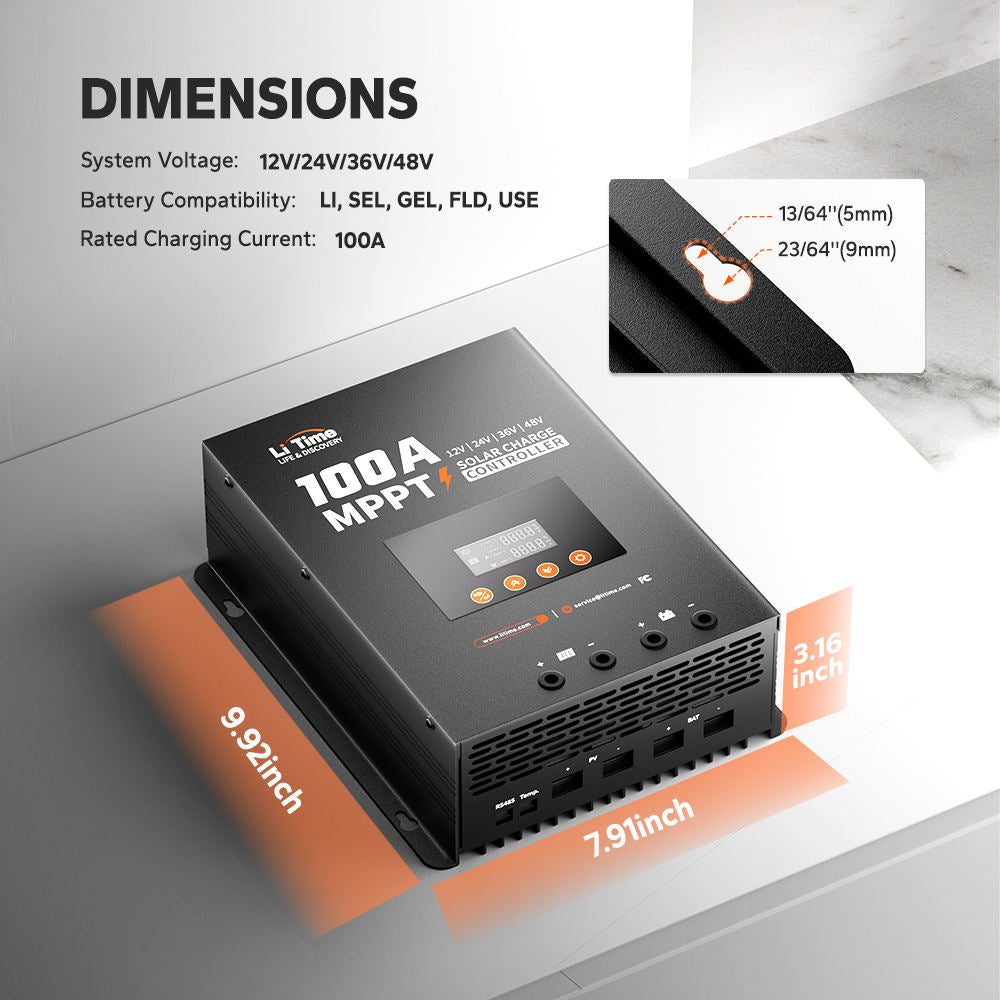

Dimensions 252 × 201 × 80.3 mm / 9.92 × 7.91 × 3.16 in

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.



Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.



Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

FAQ

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.
