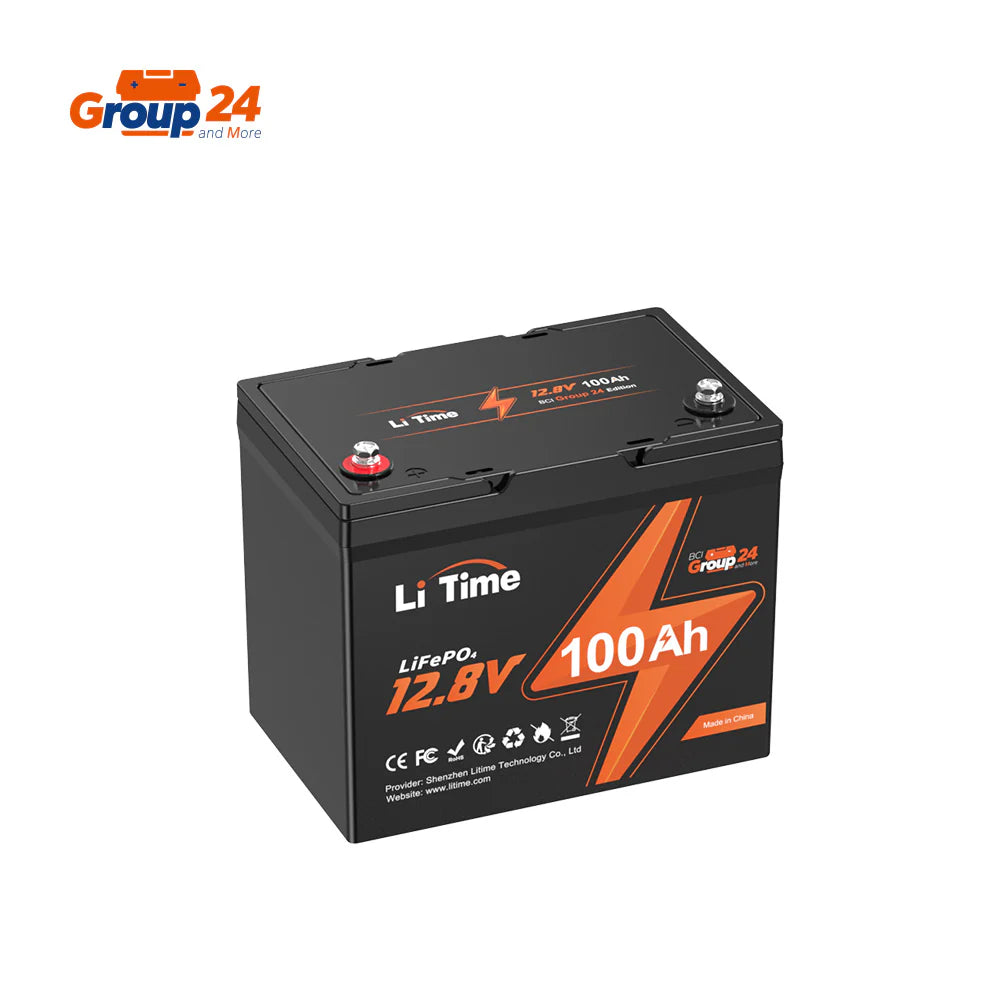

LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
Affordable BCI group 24 deep cycle battery, Compatible with All Types of RVs on the Market
- 2/3 Lighter, 1/4 Smaller, 2X energy of 12V100Ah Lead-Acid battery.
- 1280Wh of Energy, 1280W of Output Power.
- 8X Higher Mass Energy Density (60.95Wh/lbs VS. 7.23Wh/lbs of Group 24 AGM Battery).
- EV Grade-A Cells, 4000+ cycles @100%DOD.
- LiTime's 100A BMS (over-charging, over-discharging, over-current, over-temperature, and short-circuit protection).
- 100A Continuous Discharge/Charge Current, 400A/1S Continuous Discharge Current.
- 10+ Years Lifespan & 5 Years Warranty.
- 20.48kWh Expandable Energy (Max. 4P4S).
- 10X Charging Efficiency, 2X Operating Time.
- Suitable for RVs/Camping/Trolling Motor/Solar/Home Storage/Off-grid.
- IP65 Waterproof.
- Clean/Eco-friendly/Cost-effective.
- Low TCO & Zero Maintenance Fee.
- Optional Feature: Bluetooth, Low-temperature cut-off protection, Self-heating.

LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
Sale price$0.00
Specification Of LiTime 12V 100Ah Group 24 Deep Cycle LiFePO4 Lithium Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8V |
| Nominal Capacity | 1280Ah | |
| Nominal Energy | 1280Wh | |
| Internal Resistance | ≤40mΩ | |
| Max. Continuous Output Power | 1280W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 4P4S | |
| System Max. Extended Power | 20480KWh | |
| System Max. Extended Energy | 20480KWh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 400A(4C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L10.24*W6.61*H8.27 inch /260*168*210mm |
| Weight | Approx. 22.16 lbs/10.051 kg | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | Group24 | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
