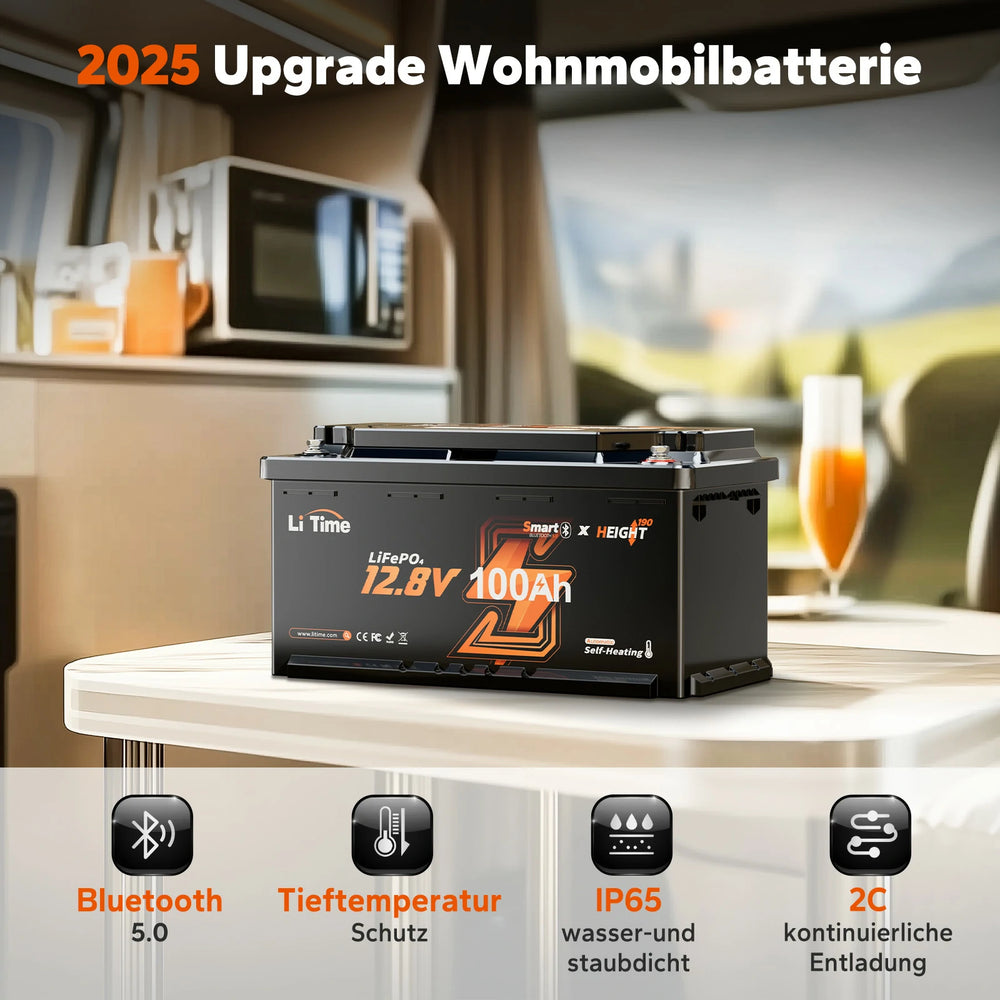

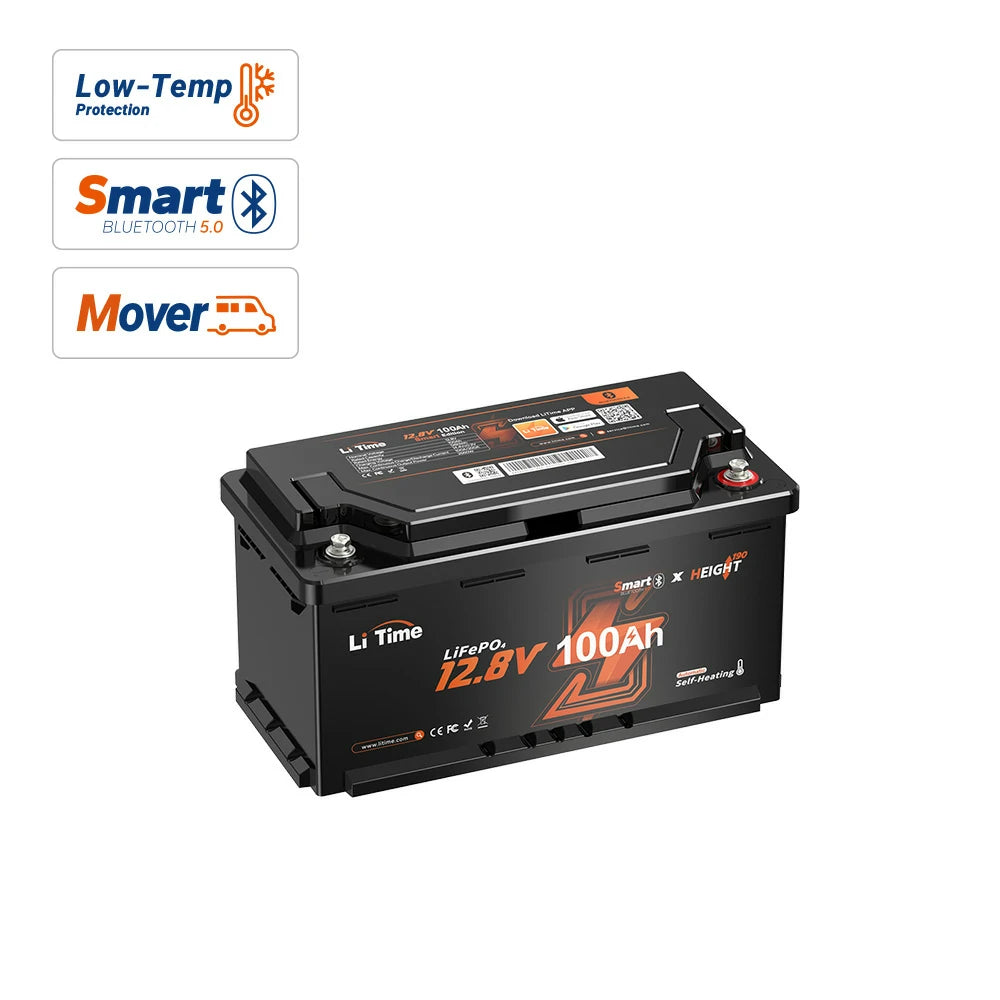

LiTime 12V 100Ah H190 Bluetooth Self-Heating LiFePO4 Battery
Smart 12V 100Ah LiFePO4 battery designed for European RVs, camper vans and off-grid power systems. Its compact H190 housing combines Bluetooth monitoring, built-in self-heating and high-current output for space-limited installations and cold-weather use.
[1280Wh Energy Capacity] - Delivers 12.8V 100Ah capacity with 200A continuous discharge, providing up to 2560W of continuous power for compatible 12V systems.

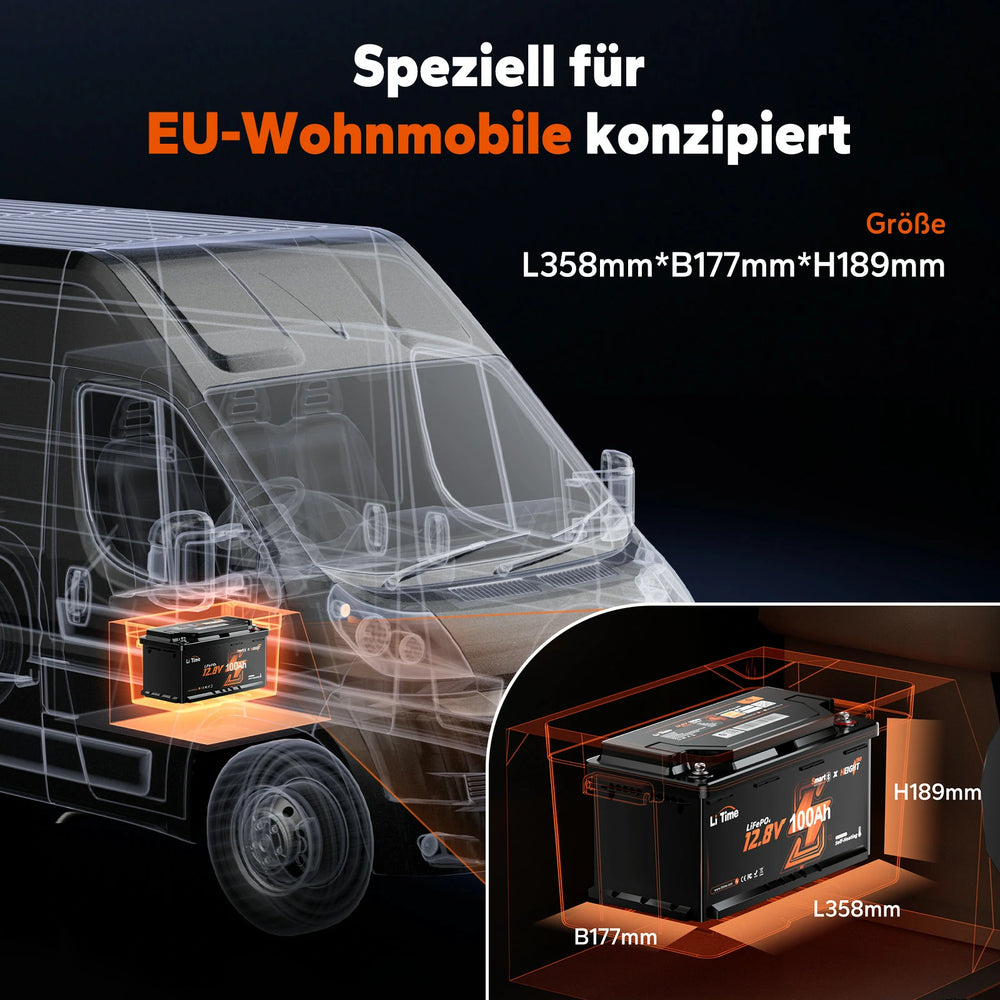

[Compact H190 Design] - Measures 358 × 177 × 189mm, making it suitable for European RV battery compartments with limited height.

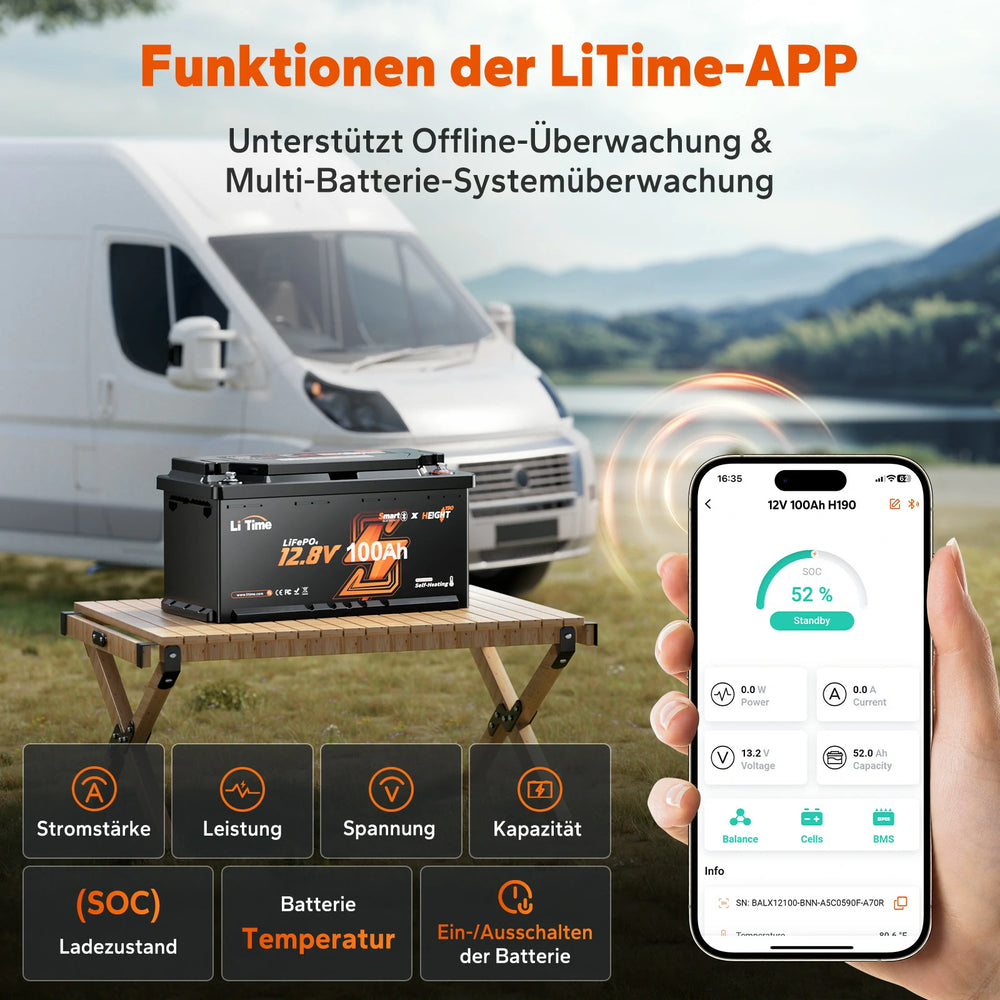

[Bluetooth 5.0 Monitoring] - Connect to the LiTime App to view battery data and monitor operating status conveniently.

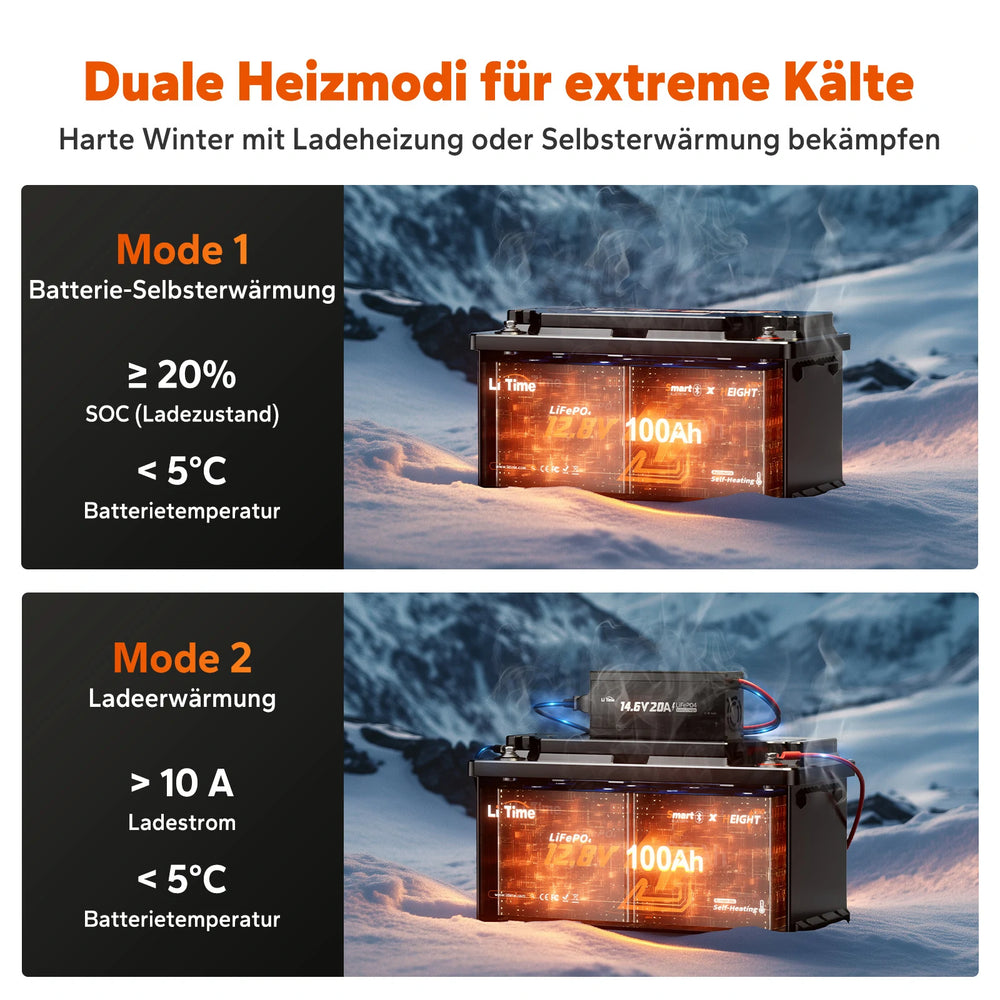

[Built-In Self-Heating] - Supports charging in cold conditions through an integrated heating function. Self-heating requires at least 10A charging current.
[High-Current Performance] - Supports up to 1000A peak discharge for 1 second, helping accommodate short-duration power demands from compatible equipment.
[Expandable Battery System] - Supports up to 4 batteries in series and 4 in parallel, allowing energy storage expansion up to 20.48kWh.
[Long-Life LiFePO4 Technology] - Provides 4,000 cycles and comes with a 5-year warranty.
[IP65 Protected Housing] - Durable ABS enclosure with IP65 protection helps resist dust and water exposure.
[B2B RV Power Applications] - Suitable for RV manufacturers, camper van conversion companies, battery distributors and system integrators sourcing compact, high-output lithium battery solutions.
Specification Of LiTime 12V 100Ah H190 Bluetooth Self-Heating LiFePO4 Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 1280Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Max Smart Self-Heating | |
| Max. Continuous Output Power | 2560W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 4P4S | |
| System Max. Extended Power | 40960W | |
| System Max. Extended Energy | 20480Wh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 200A(2C) |
| Peak Discharging Current | 1000A(10C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | -20℃ to 50 ℃ / -4℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | 358*177*189mm/ 14.1*6.97*7.44inch |
| Weight | 11.15Kg/24.93lbs | |
| Terminal Type | M8*14 mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | H190 | |

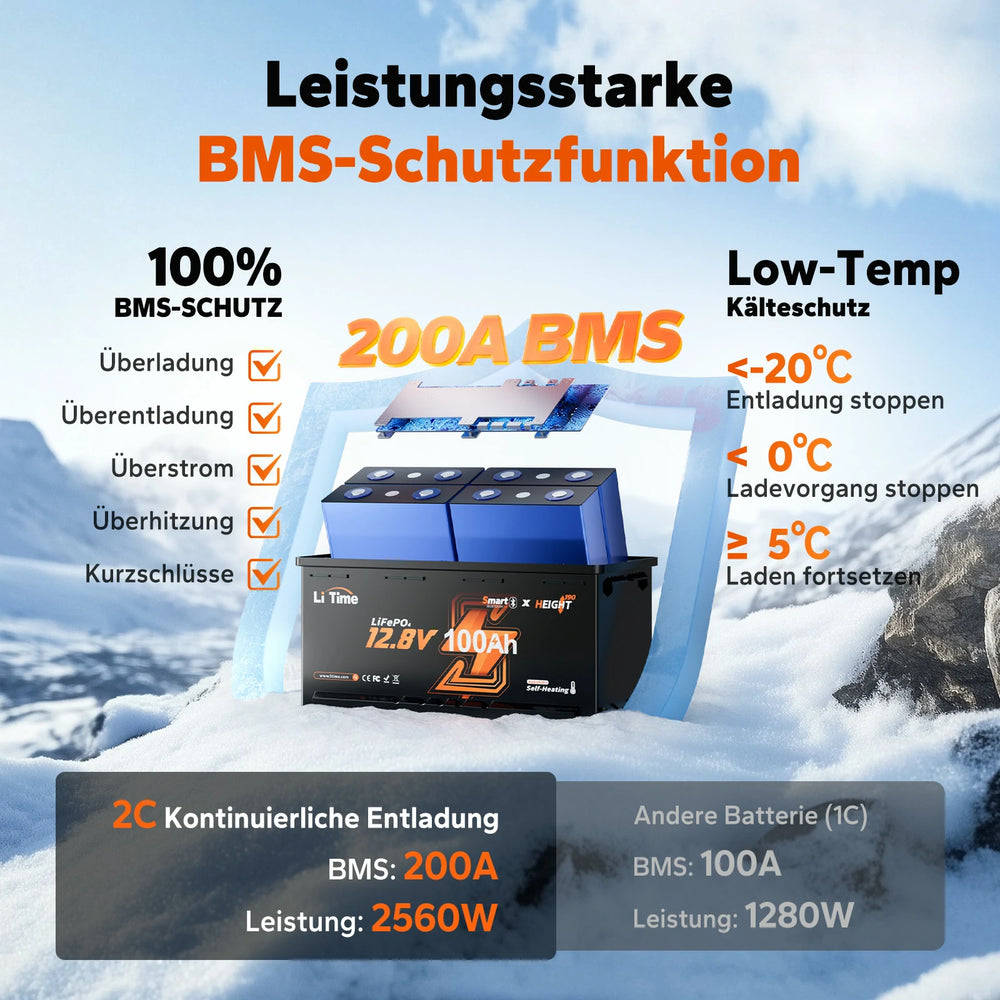

| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
