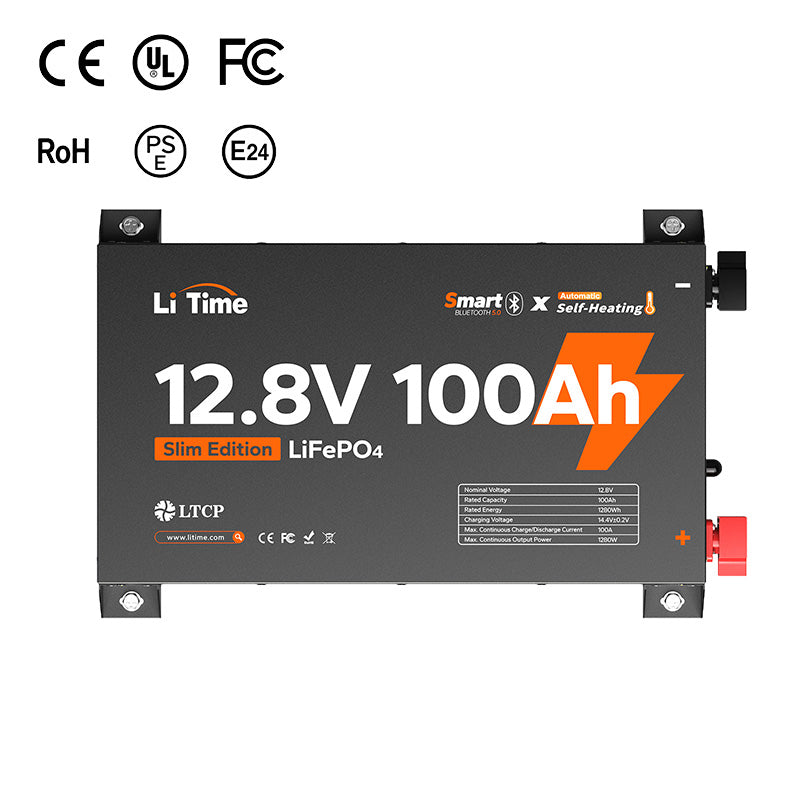

LiTime 12V 100Ah Slim Bluetooth Self-Heating LiFePO4 Battery
Ultra-slim 12V 100Ah LiFePO4 battery designed for RVs, camper vans, marine power systems and space-limited energy storage installations. With a 62mm-thin design, Bluetooth monitoring and built-in self-heating, it provides a compact power solution for year-round use.

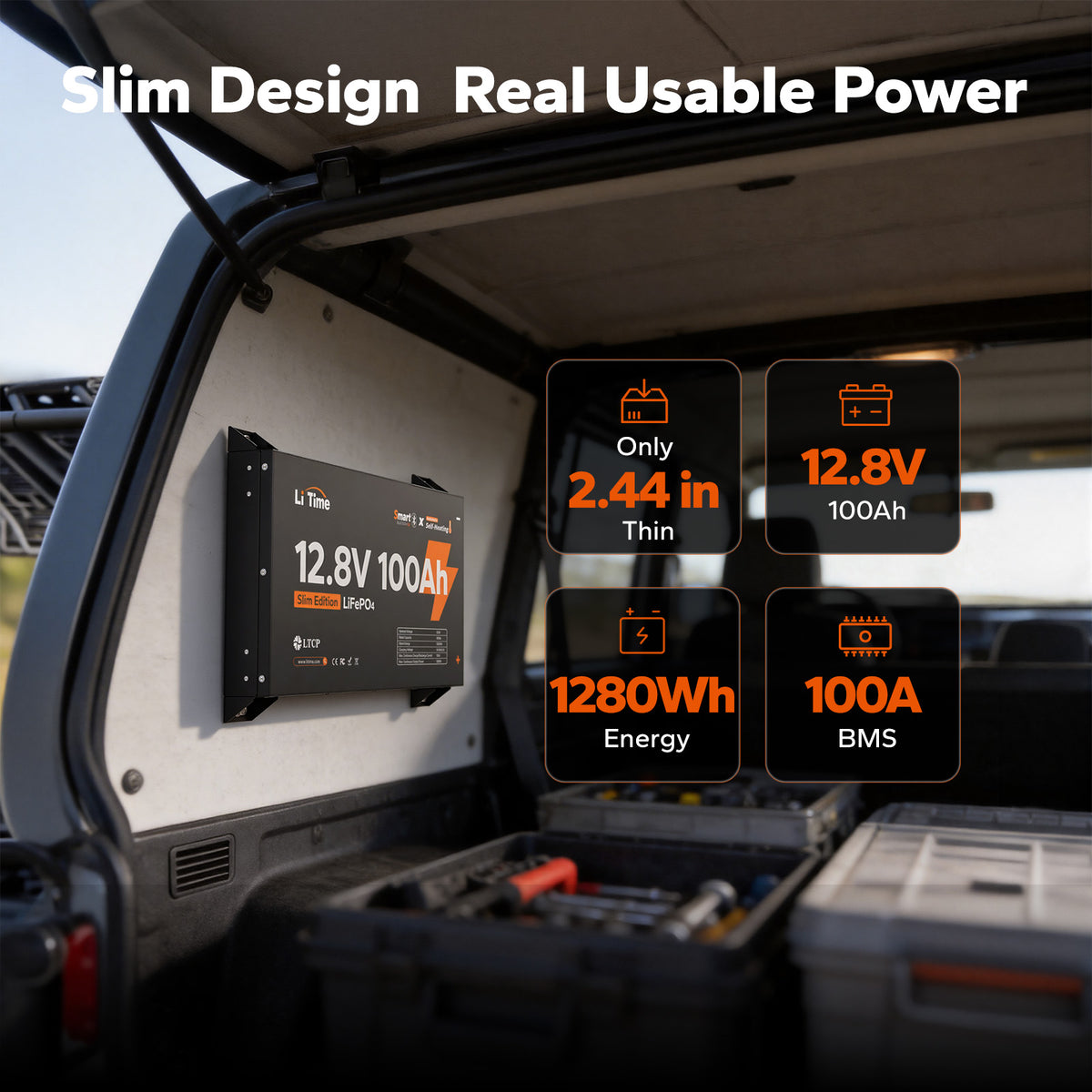

[Ultra-Slim 62mm Design] - Measures 500 × 280 × 62mm, making it suitable for under-seat compartments, narrow storage spaces and vehicle conversion projects.
[1280Wh Energy Storage] - Delivers 12.8V 100Ah capacity with 100A continuous discharge for compatible 12V electrical systems.
[Bluetooth 5.0 Monitoring] - Connect to the LiTime App to conveniently check battery data and operating status.
[Built-In Self-Heating] - Supports charging in cold conditions through an integrated heating function, helping protect the battery during winter use. Self-heating requires at least 10A charging current.
[Expandable Battery System] - Supports up to 4 batteries in series and 4 in parallel, allowing expansion for larger energy storage requirements.
[Long-Life LiFePO4 Technology] - Provides 4,000 cycles and a 5-year warranty for long-term energy storage applications.

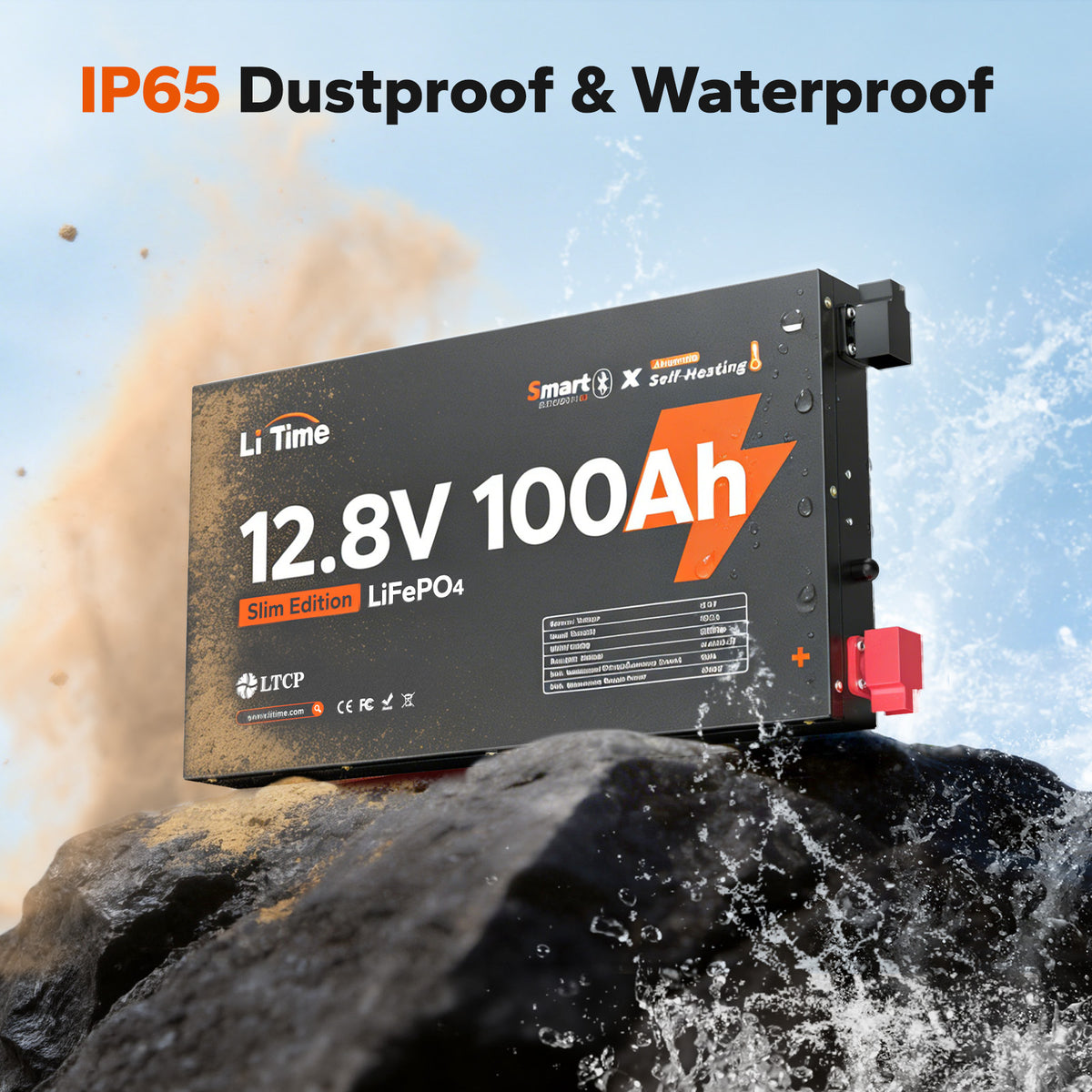

[IP65 Protection] - An IP65-rated steel housing helps protect the battery against dust and water exposure.
[B2B Energy Storage Applications] - Suitable for RV manufacturers, camper van conversion companies, marine equipment distributors and system integrators seeking slim lithium battery solutions.
Specification Of LiTime 12V 100Ah Slim Bluetooth Self-Heating LiFePO4 Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 1280Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth/Self-heating | |
| Max. Continuous Output Power | 1280W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 20480W | |
| System Max. Extended Power | 20480Wh | |
| System Max. Extended Energy | 4P4S | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 500A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | -20℃ to 50 ℃ / -4℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | 500*280*62mm/19.69*11.02*2.44inch |
| Weight | 15.2kg/33.51lbs | |
| Terminal Type | M8 | |
| Terminal Torque | 13±1 N·m | |
| Case Material | Steel Plate Cold Common (SPCC) | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
