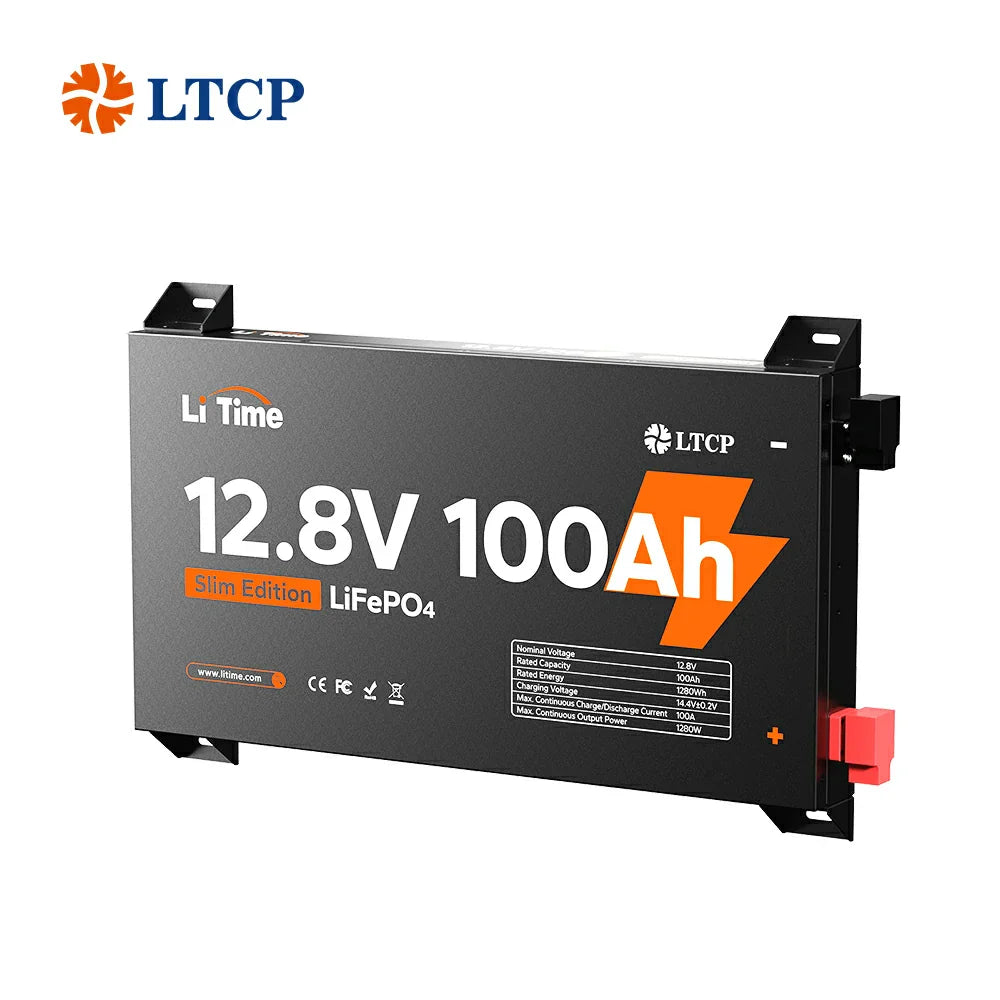

LiTime 12V 100Ah Slim LiFePO4 Lithium Metal Case Battery
2.36" Ultra-Thin Design,Built-in 100A BMS with Low-Temp Protection, Fits into Tight Spaces, Ideal for RV, Solar & Marine Use
- Ultra-Slim & Space-Saving: Only 2.36" thick-fits under seats, in floor compartments, and behind panels for a seamless install.
- Rugged Metal Durability: High-strength metal casing resists impact and corrosion.
- Versatile Mounting Solutions: Supports installations on walls, floors, desks, and confined spaces in vehicle compartments or marine holds.
- IP65 Dust & Water Resistant: Fully sealed to block dust and water jets-built for tough environments.
- Low-Temperature Protection: BMS prevents charging below 32°F (0°C) for safe, reliable cold-weather performance.
- Optimized for Tight Spaces: Ideal for RVs, off-road vehicles, trucks, and yachts, slim battery seamlessly integrates into compact spaces such as floor compartments, wall cabinets, and under-seat areas.
Unlock B2B Wholesale Pricing
Verified enterprise accounts enjoy wholesale tiered pricing and priority logistics.
Sign In to Unlock B2B PricingDon't have an enterprise account?Register for B2B Wholesale →
- Tax Exemption Capable
- Pallet Freight Available
- 5-Year Official Warranty

LiTime 12V 100Ah Slim LiFePO4 Lithium Metal Case Battery
Sale price€418,95 EUR
Specification Of LiTime 12V 100Ah Slim LiFePO4 Lithium Metal Case Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 1280Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Low-Temperature Protection | |
| Max. Continuous Output Power | 1280W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 4P4S | |
| System Max. Extended Power | 20480Wh | |
| System Max. Extended Energy | 20480W | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 500A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | 530*280*60 mm/20.87*11.02*2.36 inch |
| Weight | Approx.14.92 kg/32.89 lbs | |
| Terminal Type | M6*14 mm | |
| Terminal Torque | 61.96 to 79.66 inch·lbs/ 7 to 9 N·m | |
| Case Material | SPCC | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
|
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
