LiTime 12V 140Ah H190 Bluetooth LiFePO4 Battery for RV

LiTime 12V 140Ah H190 Bluetooth LiFePO4 Battery for RV

Name: LiTime 12V 140Ah H190 Bluetooth LiFePO4 Battery for RV
Brand: LiTime Solutions
SKU: L12V140-150-H190-BT-4-AC150
Availability: OutOfStock

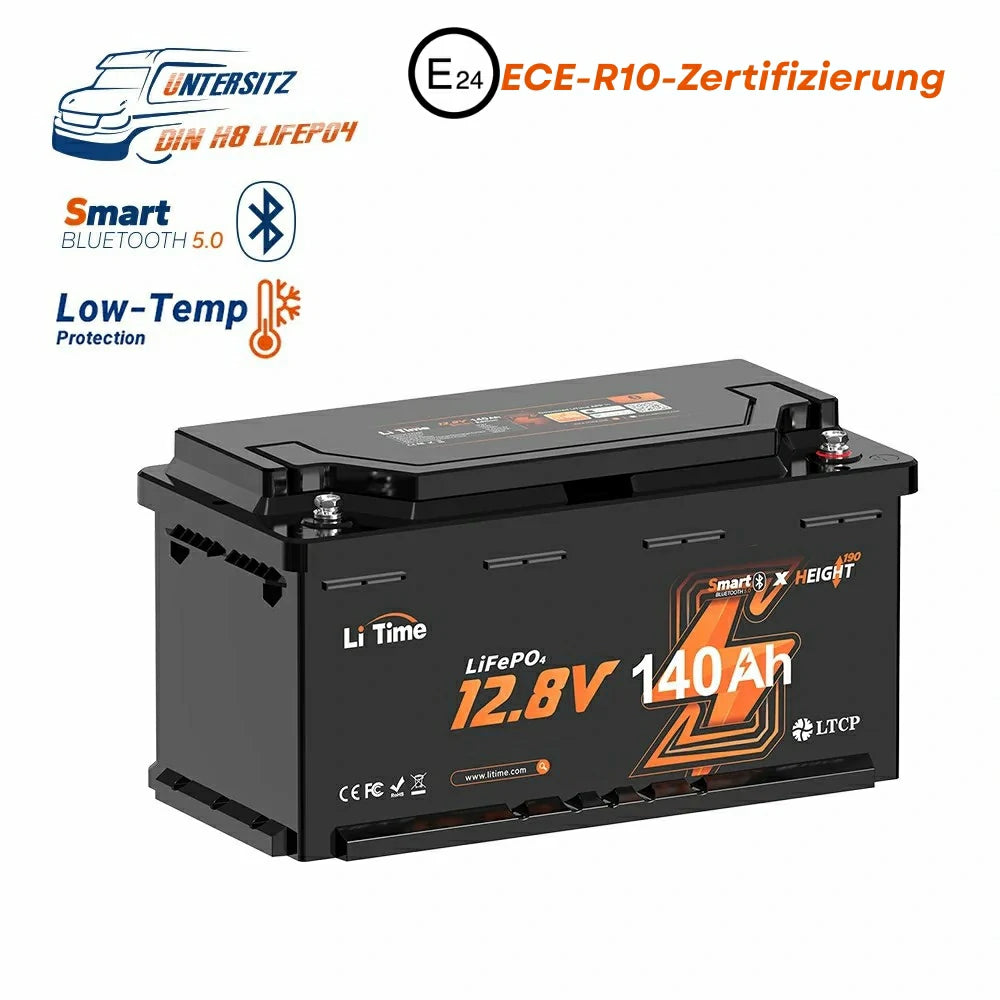

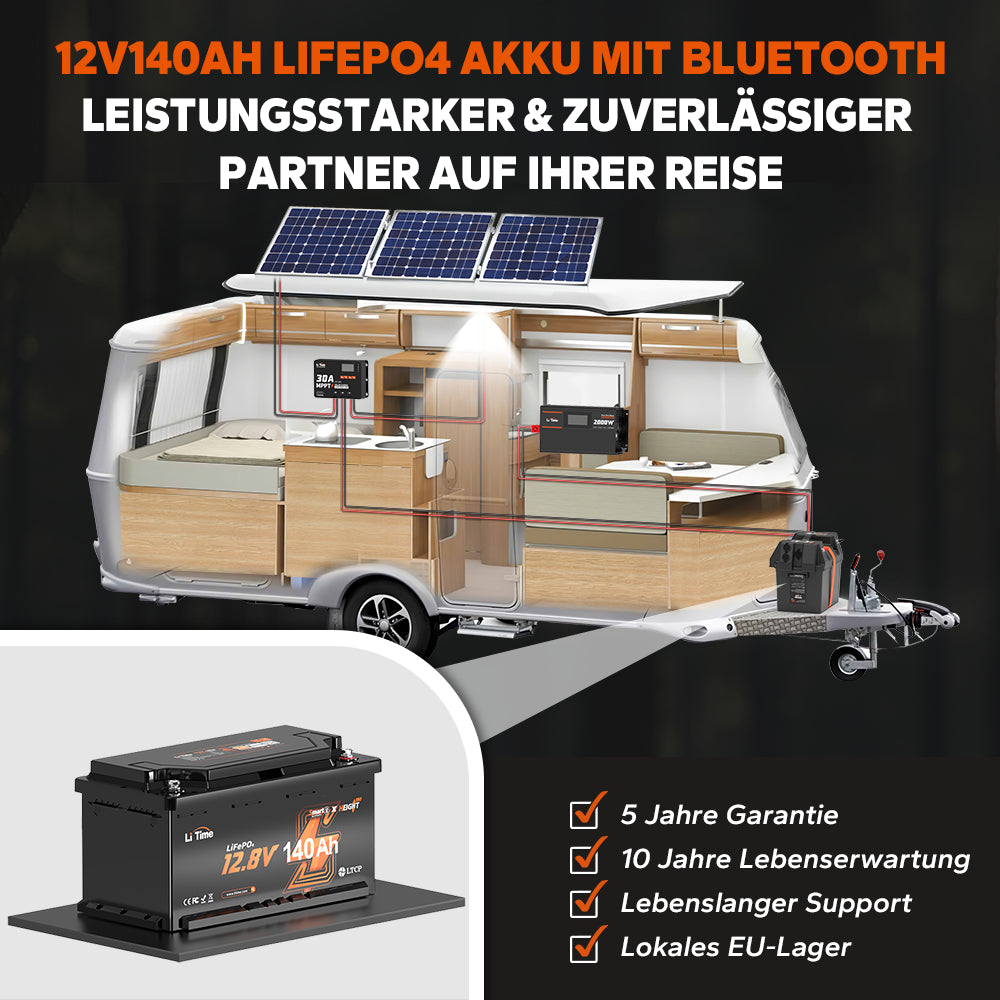

Smart 12V 140Ah LiFePO4 battery designed for European RVs, camper vans and off-grid power systems. Its H190 housing fits space-limited installations, while Bluetooth monitoring makes battery management more convenient.

[1792Wh Energy Capacity] - Delivers 12.8V 140Ah capacity with 150A continuous discharge to support compatible RV appliances and power systems.

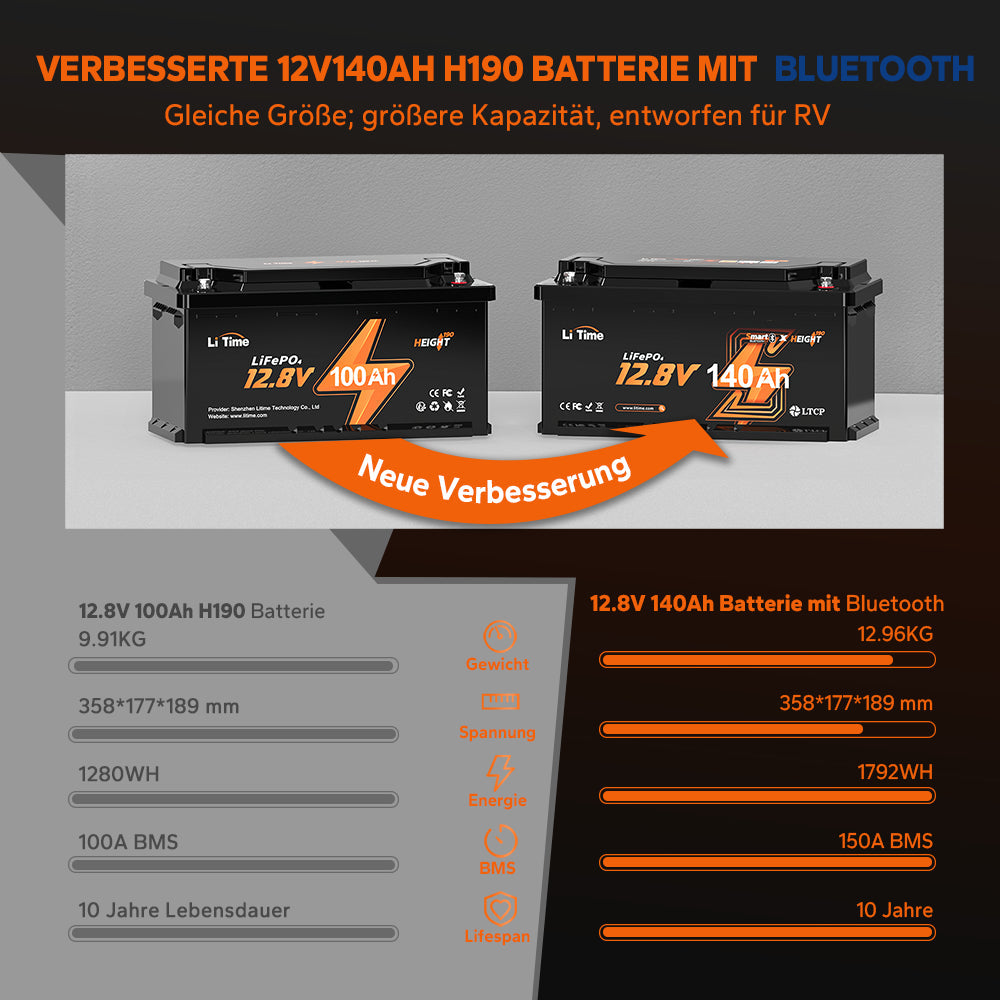

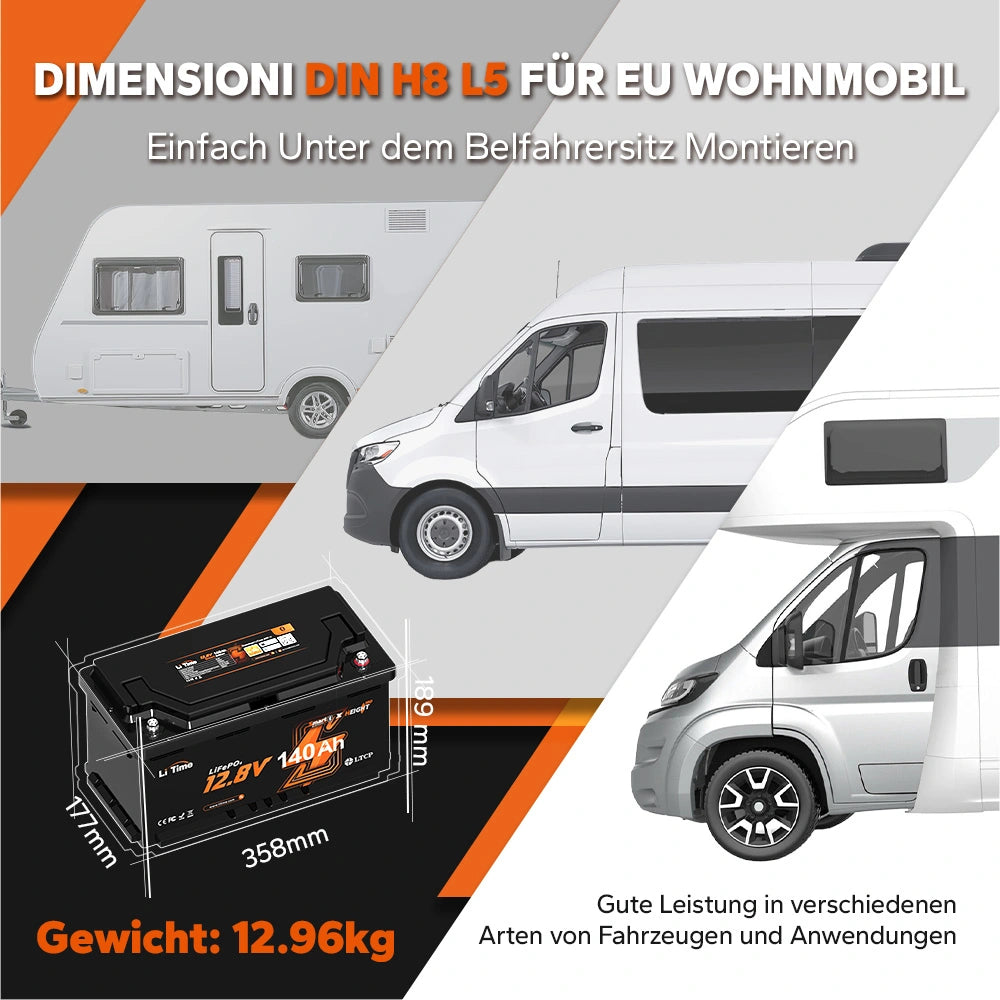

[H190 Compact Design] - Measures 358 × 177 × 189mm, making it suitable for European RV installations with limited battery compartment height.

[Bluetooth 5.0 Monitoring] - Connect to the LiTime App to check battery data and monitor operating status conveniently.

[Low-Temperature Protection] - Stops charging at 0°C (32°F) and resumes at 5°C (41°F) to help protect the battery in cold conditions.

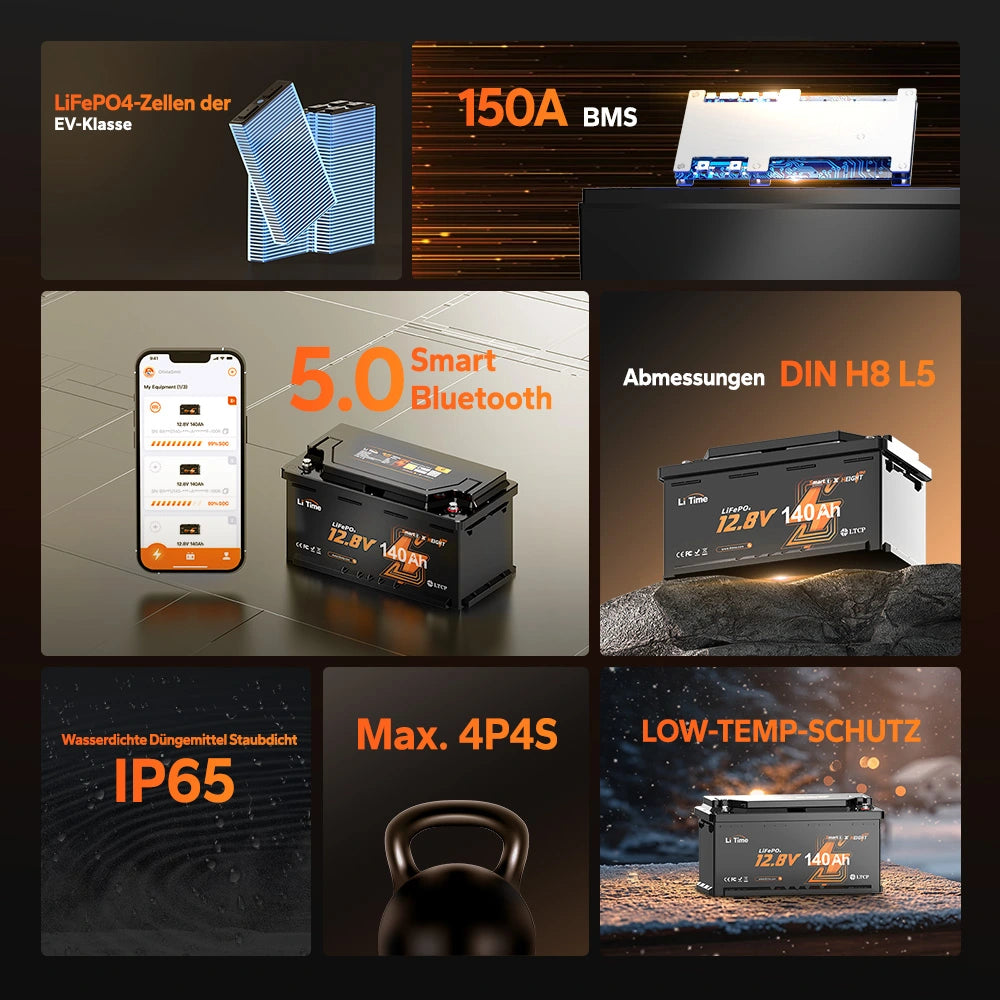

[Expandable Battery System] - Supports up to 4 batteries in series and 4 in parallel for larger energy storage requirements.

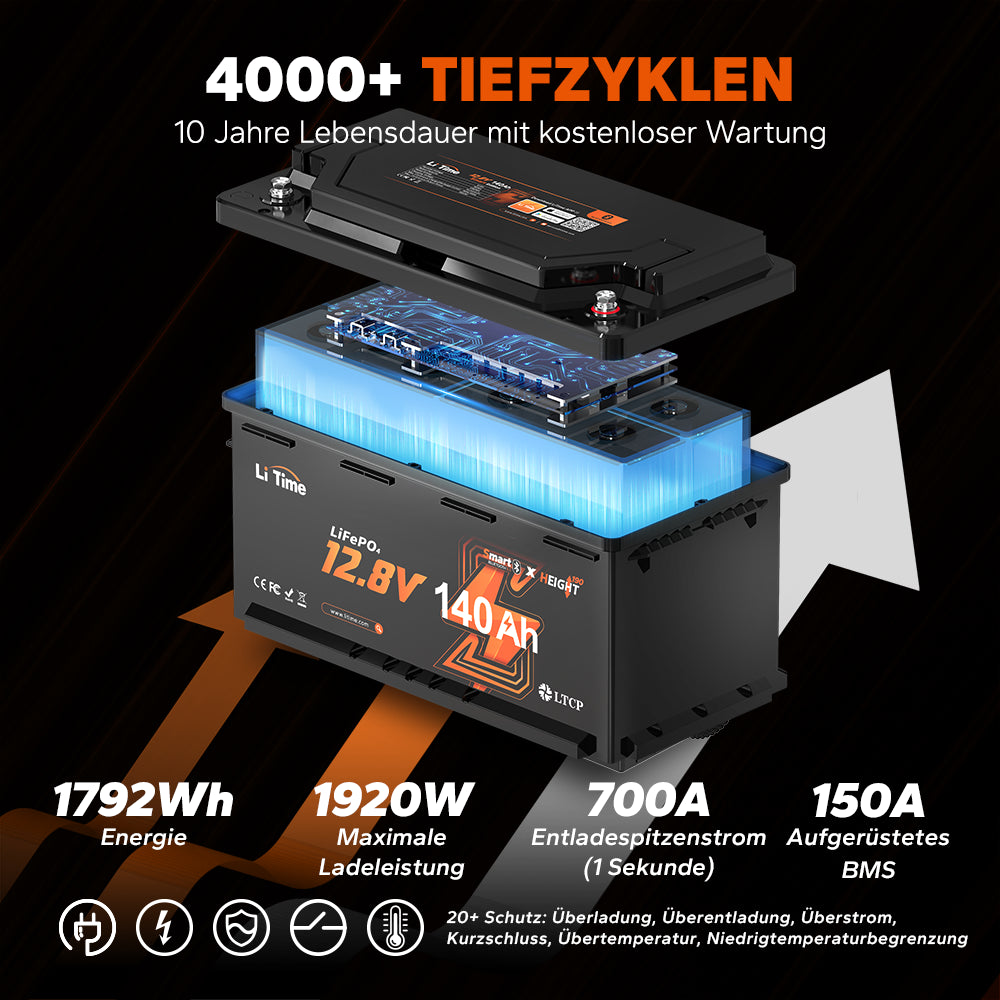

[Long-Life LiFePO4 Technology] - Provides 4,000 cycles and comes with a 5-year warranty.

[IP65 Protected Housing] - Durable ABS enclosure with IP65 protection helps resist dust and water exposure.

[B2B RV Power Supply] - Suitable for RV manufacturers, camper van conversion companies, battery distributors and system integrators sourcing compact lithium battery solutions.

Specification Of LiTime 12V 140Ah H190 Bluetooth LiFePO4 Battery for RV

CHARACTERISTICS	PARAMETERS
Basic Specification	Nominal Voltage	12.8V
	Nominal Capacity	140Ah
	Nominal Energy	1792Wh
	Internal Resistance	≤40mΩ
	Function	Bluetooth
	Max. Continuous Output Power	1920W
	BMS Board	150A
	Max. Batteries in Series and Parallel	4P4S
	System Max. Extended Power	30720W
	System Max. Extended Energy	28672Wh
Charge Specification	Max. Continuous Charging Current	140A(1C)
	Recommended Charging Current	28A(0.2C)
	Recommended Charging Voltage	14.4±0.2V
Discharge Specification	Max. Continuous Discharging Current	150A(1.071C)
Discharge Specification	Peak Discharging Current	700A(5C)
Environment Specification	Storage Temperature Range	-10℃ to 50 ℃ / 14℉ to 122 ℉
	Recommended Storage Temperature	10℃ to 35 ℃ / 50℉ to 95 ℉
	Charging Temperature Range	0℃ to 50 ℃ / 32℉ to 122 ℉
	Discharging Temperature Range	-20℃ to 60 ℃ / -4℉ to 140 ℉
Mechanical Specification	Dimension	358177189mm/14.16.977.44inch
	Weight	12.96kg/ 28.57lbs
	Terminal Type	M8*14 mm
	Terminal Torque	13±1 N·m
	Case Material	ABS
	IP Rating	IP65
	Cell Type-chemistry	LiFePO4 Prismatic
	BCI	H190

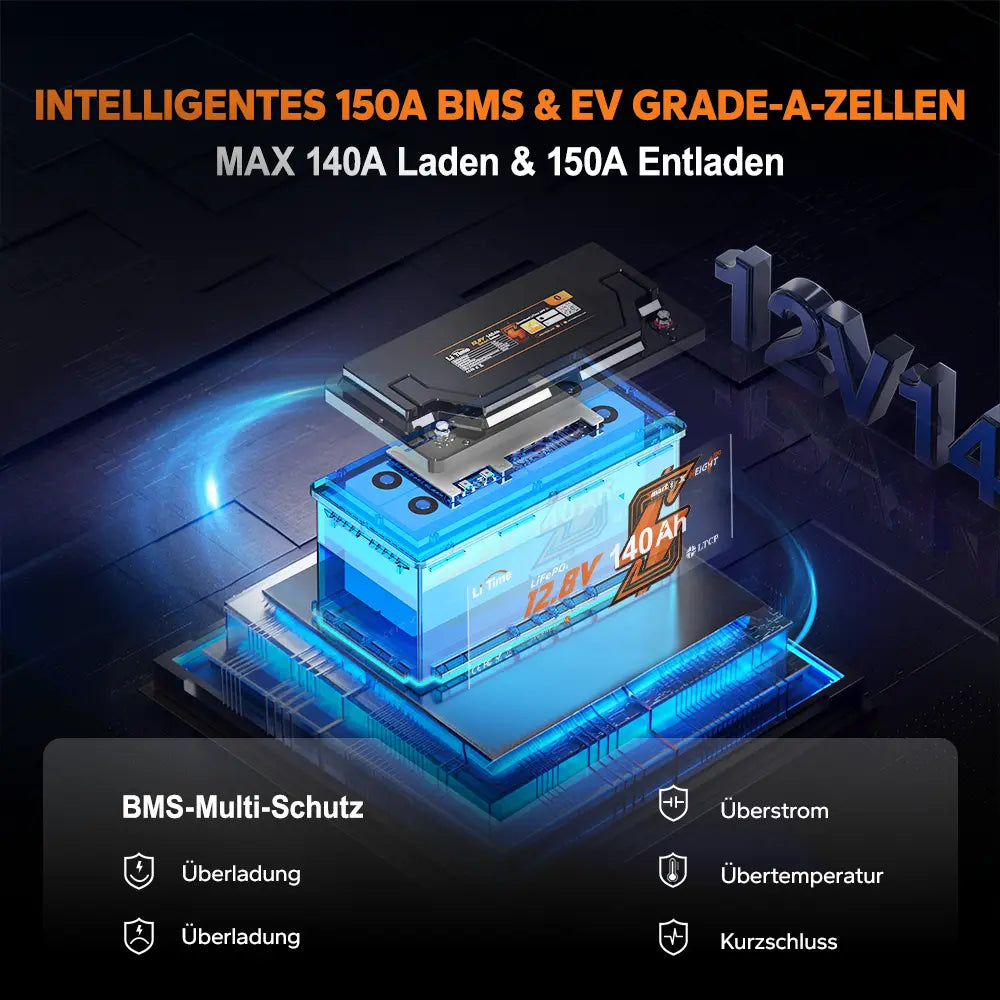

Safety Specification	Protection	Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.

Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.

Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

FAQ

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.
