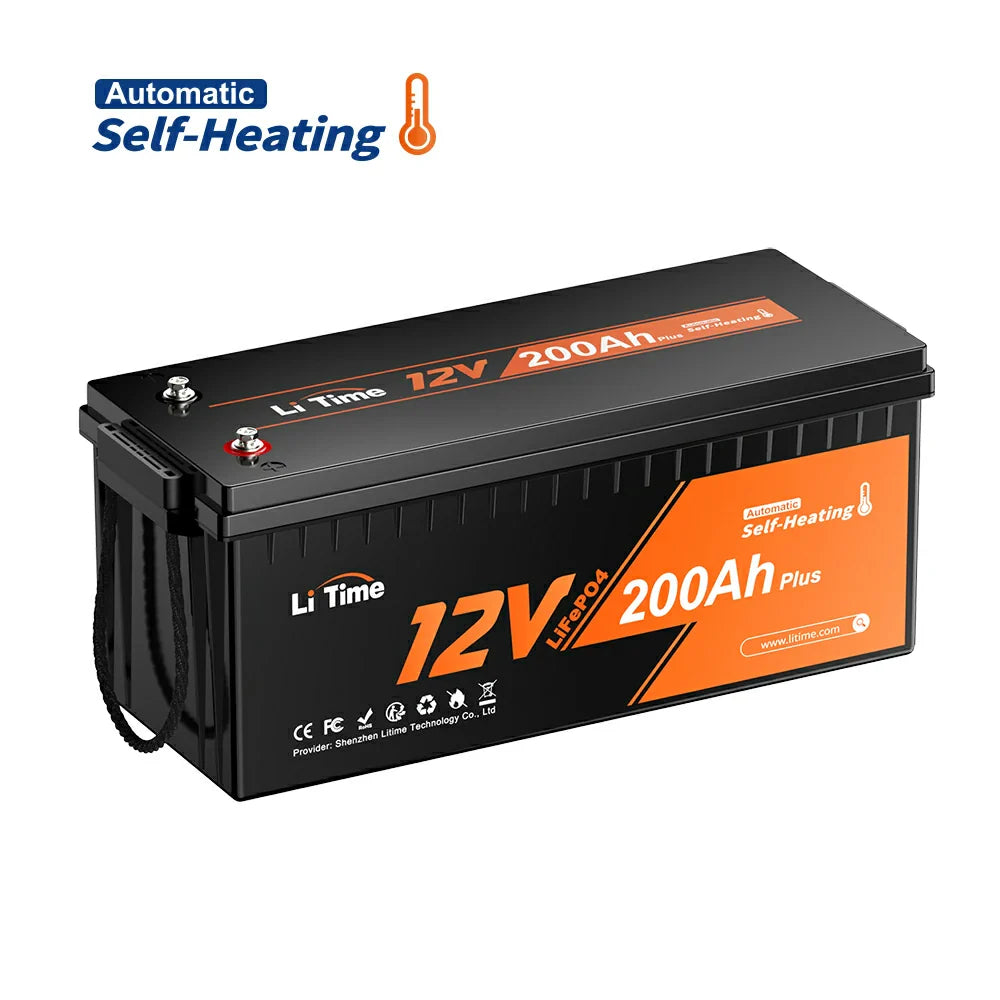

LiTime 12V 200Ah Plus Self-Heating LiFePO4 Battery
- Preferred for winter charging.
-
Large Capacity, ideal for RVs, home backup energy, off-grid, etc.
- 150W heating pads for faster heating rate.
- 70-90 mins (heating from 14℉), 100-150 mins (from -4℉).
-
Self-heating starts at <41℉, and stops at ≥50℉.
-
200A BMS with 200% flow capacity (VS LiTime 12V 200Ah with 100A BMS).
- 2560Wh energy & 2560W max. continuous output power.
-
20+ upgraded Protections, with auto-recovery(30s) after overload protection, resistance of moisture & salt-spray, pre-charge function.
-
EV-grade LiFePO4 cells, 4000-15000 deep cycles, 10 years lifespan.
- Max. 4P4S, expandable to 51.2V 800Ah (40.96kWh & 40.96kW).
- 200% energy & 64% lighter, best replacement of 12V 200Ah lead-acid battery.
-
4 Charging Ways - battery charger, solar panel, alternator, generator.
- Size: L20.95*W8.15*H8.5 inch.
- Note: Do NOT use it as a starting battery.

LiTime 12V 200Ah Plus Self-Heating LiFePO4 Battery
Sale price$0.00
Specification Of LiTime 12V 200Ah Plus Self-Heating LiFePO4 Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8V |
| Nominal Capacity | 200A | |
| Nominal Energy | 2560Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Self-heating | |
| Max. Continuous Output Power | 2560W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 4P4S | |
| System Max. Extended Power | 40960W | |
| System Max. Extended Energy | 40960Wh | |
| Charge Specification | Max. Continuous Charging Current | 200A(1C) |
| Recommended Charging Current | 40A(0.2C) | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 200A(1C) |
| Peak Discharging Current | 1000A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | -20℃ to 50 ℃ / -4℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L20.95*W8.15*H8.5 inch /532*207*216mm |
| Weight | Approx. 44.07 lbs/19.99kg | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
