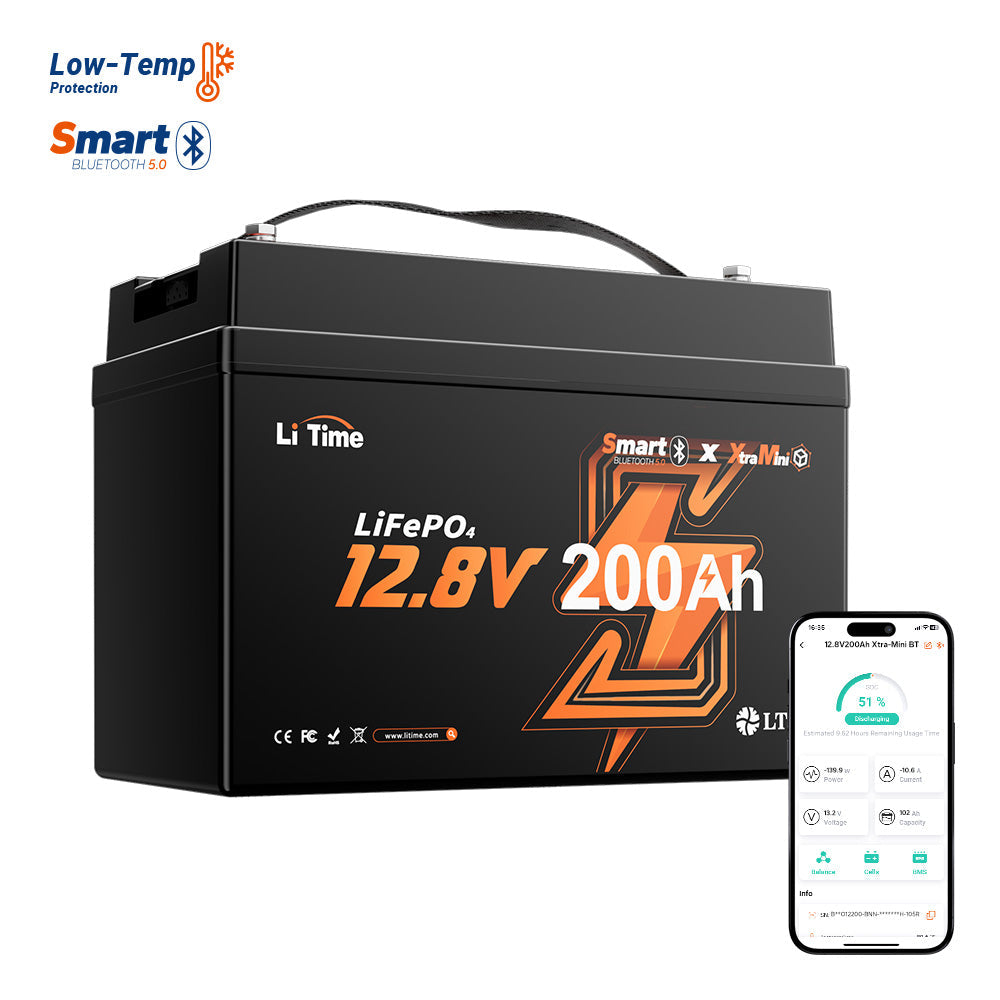

LiTime 12V 200Ah Smart XtraMini Bluetooth LiFePO4 Battery
Compact 12V 200Ah Bluetooth LiFePO4 battery designed for RVs, marine power systems, trolling motors and off-grid solar storage. The Smart XtraMini design delivers 2560Wh of energy in a space-saving battery case.
[Compact 2560Wh Energy Storage] - Delivers 12.8V 200Ah capacity in a 333 × 176 × 240 mm case, approximately 40.8% smaller than the previous A105 model.
[Bluetooth 5.0 Monitoring] - Connect to the LiTime App to check battery data and monitor battery status conveniently.
[200A Continuous Output] - Supports 200A continuous discharge and up to 1000A peak discharge for 1 second, providing power for demanding 12V applications.
[Low-Temperature Protection] - Automatically stops charging at 0°C (32°F) and resumes at 5°C (41°F) to help protect the battery in cold conditions.
[Expandable Battery System] - Supports up to 4 batteries in series and 4 in parallel, enabling energy storage expansion up to 40.96kWh.
[Long-Life LiFePO4 Technology] - Provides 4000 cycles and comes with a 5-year warranty for long-term energy storage applications.
[IP65 Protected Housing] - Durable ABS housing with IP65 protection supports use in RV, marine and outdoor energy systems.
[B2B Battery Supply] - Suitable for RV installers, marine equipment distributors, battery dealers and solar system integrators seeking compact, high-capacity lithium battery solutions.
Specification Of LiTime 12V 200Ah Smart XtraMini Bluetooth LiFePO4 Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 12.8 |
| Nominal Capacity | 200Ah | |
| Nominal Energy | 2560Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 2560W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 40960W | |
| System Max. Extended Power | 40960Wh | |
| System Max. Extended Energy | 4P4S | |
| Charge Specification | Max. Continuous Charging Current | 200A(1C) |
| Recommended Charging Current | 40A(0.2C) | |
| Recommended Charging Voltage | 14.4±0.2V | |
| Discharge Specification | Max. Continuous Discharging Current | 200A(1C) |
| Peak Discharging Current | 1000A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Discharging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Mechanical Specification | Dimension | 333*176*240mm/13.11*6.93*9.45lbs |
| Weight | 20.2kg/44.5lbs | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
