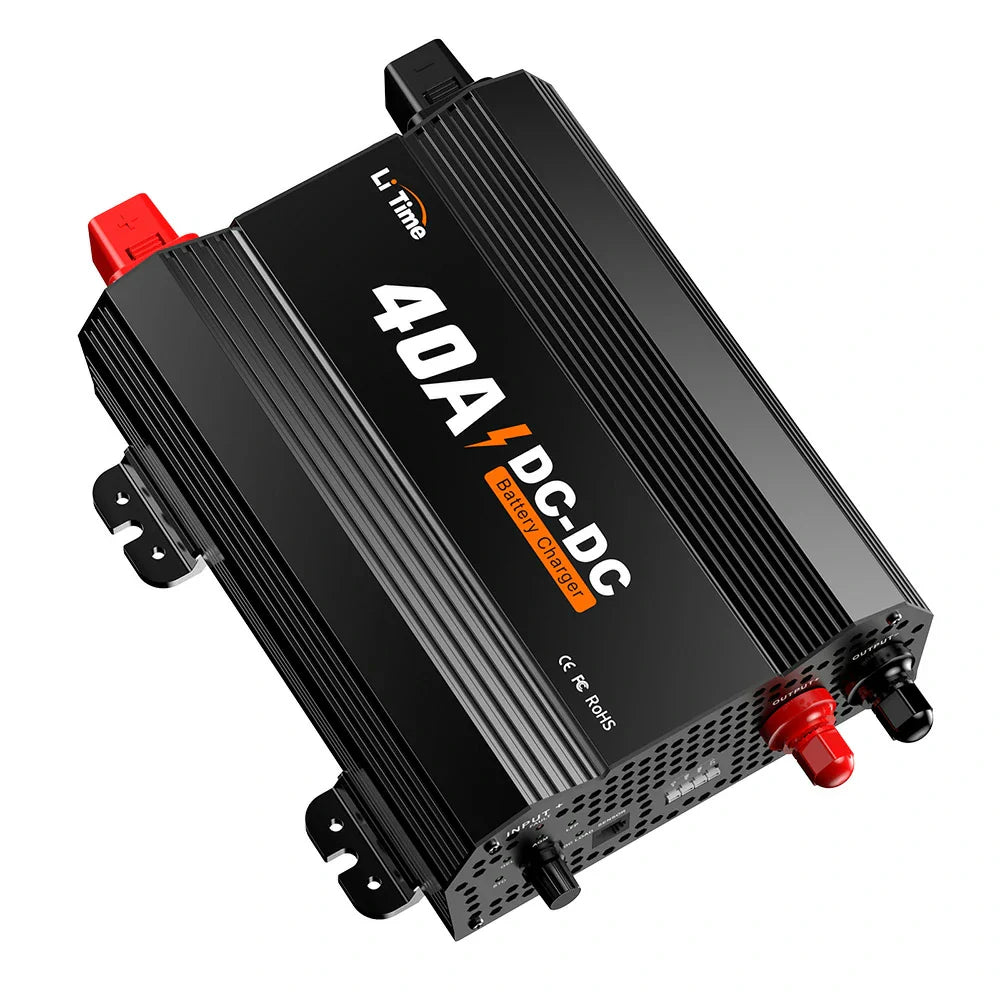

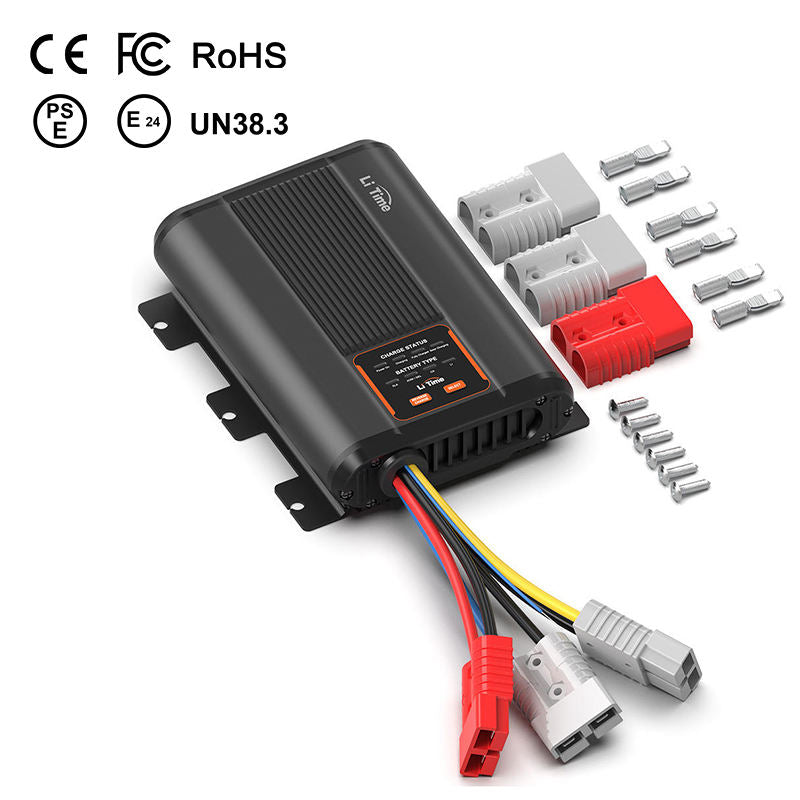

LiTime 12V 40A DC to DC Battery Charger

Name: LiTime 12V 40A DC to DC Battery Charger
Brand: LiTime Solutions
SKU: L12V40A-DC-Z
Price: 185.95 EUR
Availability: OutOfStock

COMPATIBILITY Knob operation makes it convenient to quickly select the type of battery that needs to be charged. The output current of the charger is 40A, with high efficiency and adaptability to larger capacity battery packs; There is a low current port that can limit the output current to 20A. There are two charging and discharging current options, 20A and 40A, which are convenient for use in multiple scenarios.

SMART MULTI-STAGE CHARGING The 12V 40A DC to DC smart charger changes different charge modes to match your battery type. For LiFePO4 Battery it will charge in 2-step mode (CC, CV), for Lead Acid Battery it will charge by 3-stage charging (Bulk, Absorption, and Float). It can optimize the charging efficiency of different types of batteries and extend their service life. It also can wake up your lithium battery after BMS protection.

VARIOUS PROTECTION SAFETY This LiTime battery charger with high-quality offers over-voltage protection, low-voltage protection, over-temperature protection, short circuit protection, and output reverse polarity protection to ensure operation safety. It also isolates the input and output to prevent voltage transfer errors and interference with home battery charging.

WIDELY USED The compact and robust design of LiTime 12V 40A DC to DC charger makes it suitable for RVs, commercial vehicles, and many more applications. The output end can not only be connected to a service battery but also be directly used with a DC load.

Specification Of LiTime 12V 40A DC to DC Battery Charger

CHARACTERISTICS	PARAMETERS
DC-DC Charging Specification	Output Voltage	15.4V MAX
	DC Input Voltage Range	11.3–24VDC
	Output Current	40A MAX
	Max. Input Current	40A
	Conversion Efficiency	99%
Solar Charging Specification	Battery Voltage Range	7–15.4VDC
	Max. PV Open Circuit Voltage	26VDC
	Rated Charging Current	40A
	Max. PV Charging Current	40A
	Communication	None
	Conversion Efficiency	99%
General Specification	IP Rating	IP54
	Net Weight	2.43 lbs / 1.1 kg
	Dimensions	189 × 148 × 48 mm / 7.44 × 5.83 × 1.89 in
	Color	Black
