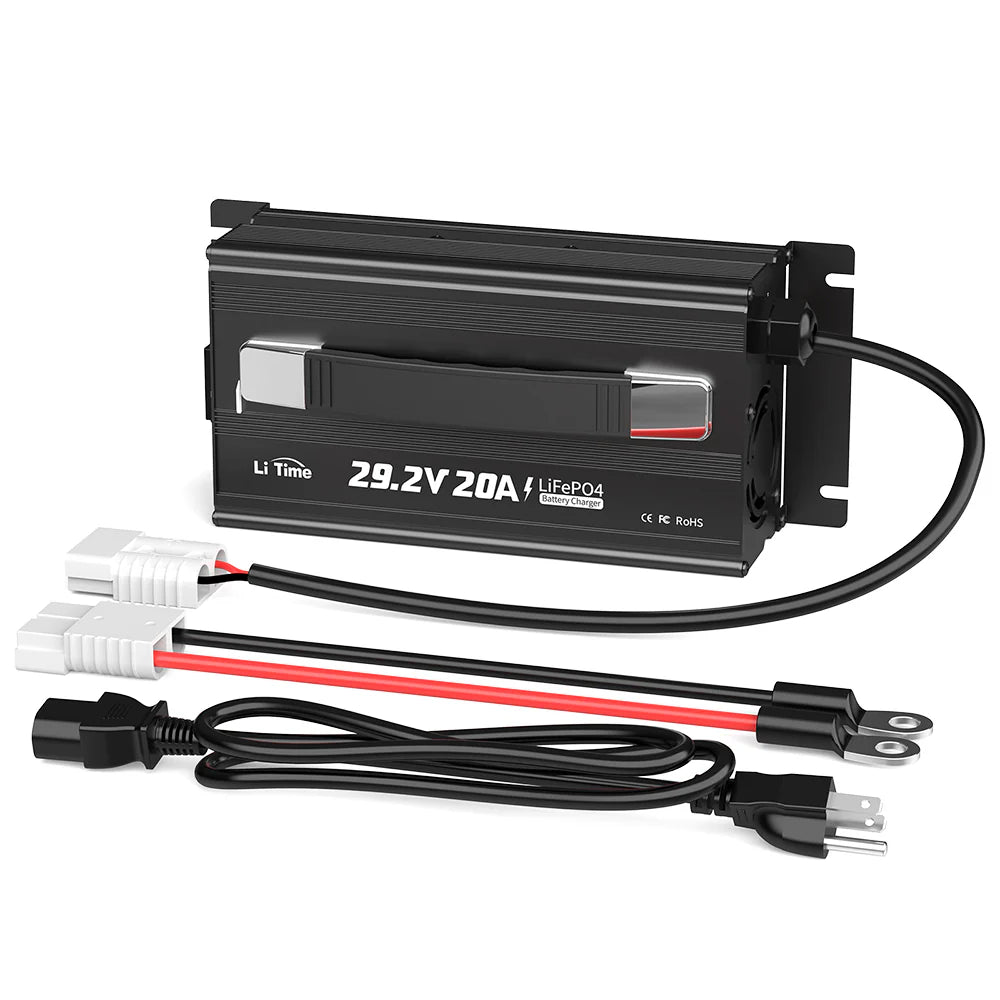

LiTime 24 (29.2) Volt 20A Mountable Lithium Battery Charger

LiTime 24 (29.2) Volt 20A Mountable Lithium Battery Charger

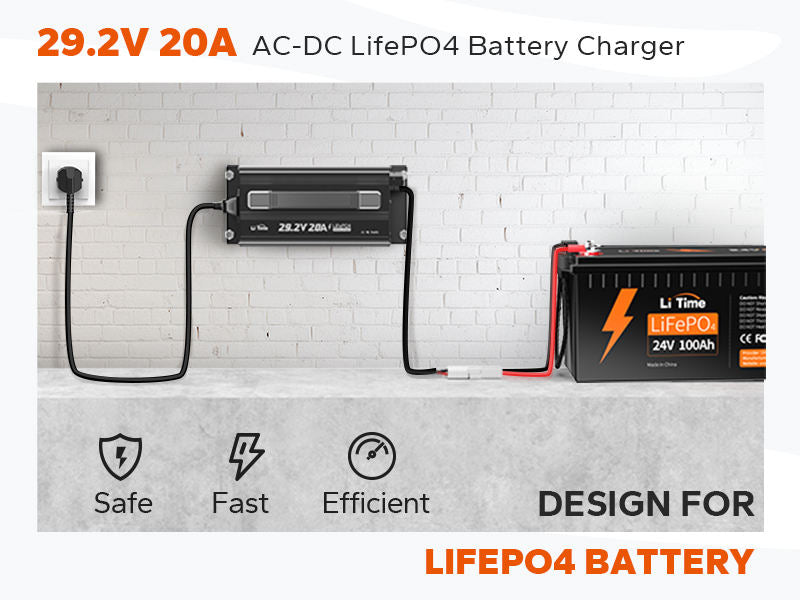

Specially designed for 24V LiFePO4 deep cycle batteries.
Output Voltage: 29.2V; Output Current: 20A; Input Voltage Range: AC 100V to 240V; 50Hz to 60Hz.
Input cable: 47.24 inch; output cable: 57.08 inch (including 9.84 inch Anderson extension cable).
Safely jump-starts BMS-protected lithium batteries.
Automatic transition of CC, CV, and Float/Cut off.

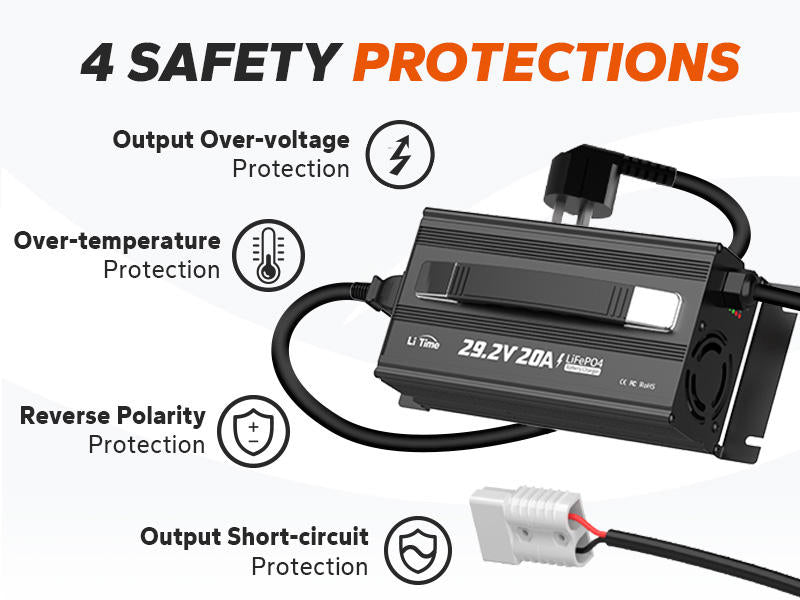

4 safety protections: Over Temperature, Over Voltage, Short Circuit, and Reverse Polarity.
LED indicators for power on/off, standby, charging, full charge, and error monitoring.
Aluminum alloy shell with cooling fan for optimal heat dissipation.
Uses LLC half-bridge resonant soft-switching for a compact, lightweight, and portable design, ideal for 24V marine batteries.
CE & RoHS certified.
2-year warranty.

Specification Of LiTime 24 (29.2) Volt 20A Mountable Lithium Battery Charger

CHARACTERISTICS	PARAMETERS
AC-DC Charging Specification	Output Voltage	29.2V MAX
	Input Voltage	100–240VAC
	Output Current	20A MAX
	Max. Input Current	10A
	Indicator Switching Current	≤2.4A
	Input Frequency	50–60Hz
	Conversion Efficiency	≥85%
	No-load Power Consumption	≤10W
General Specification	Net Weight	5.07 lbs / 2.3 kg
	Dimensions	276 × 120.6 × 89.5 mm / 10.87 × 4.75 × 3.52 in
	Color	Black
