LiTime 24V 100Ah LiFePO4 Bluetooth Lithium RV, Marine Battery with Low-Temp Protection

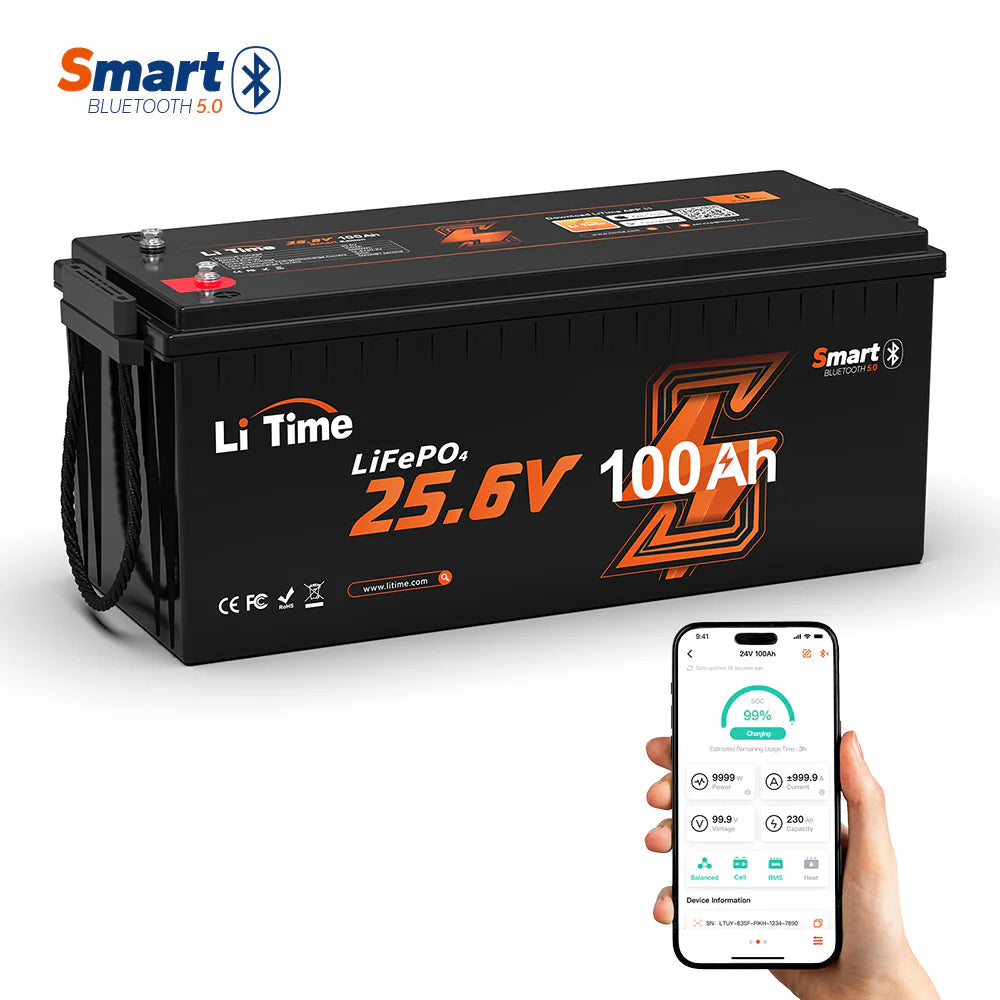

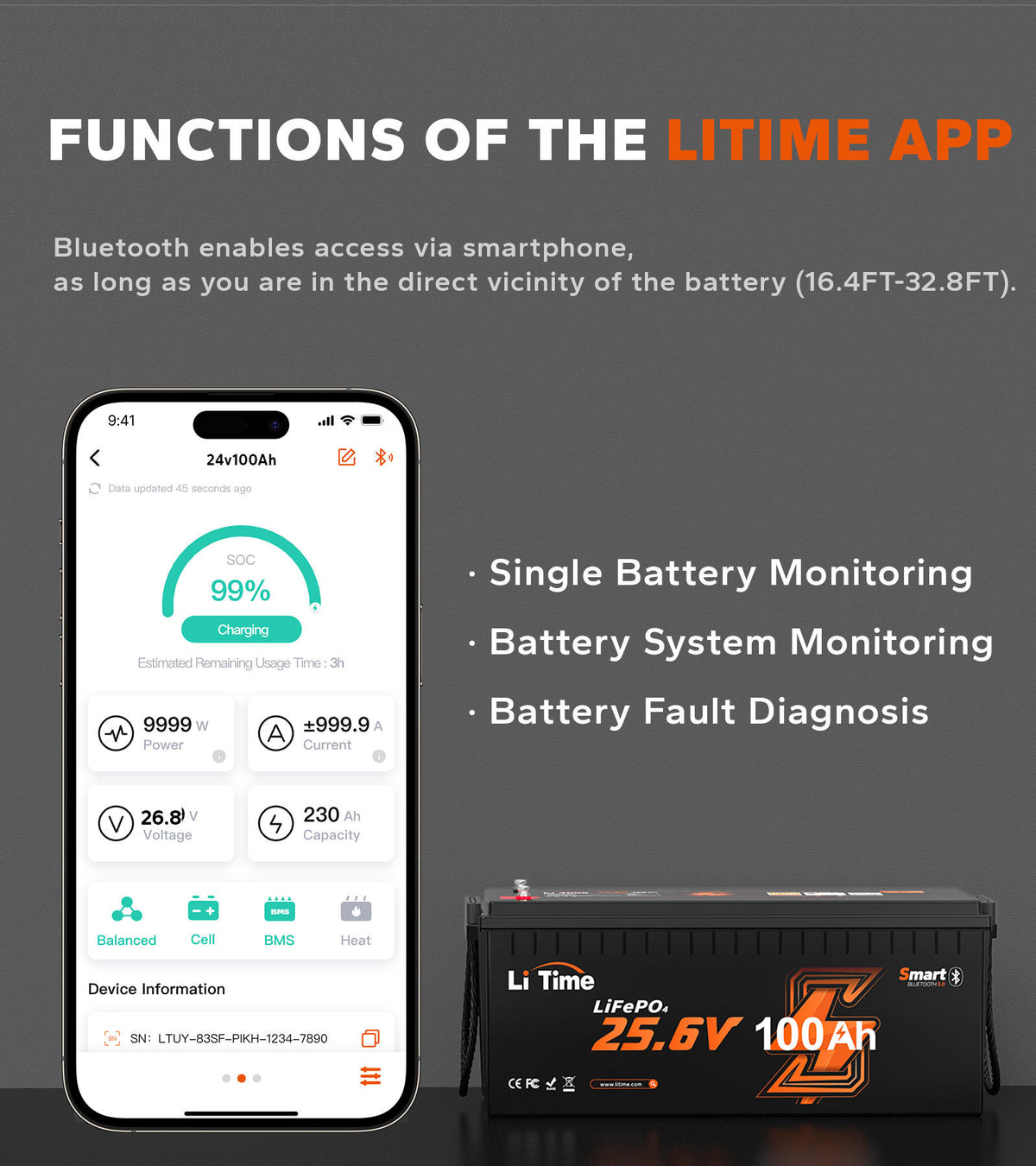

- Integrated Bluetooth, Real-Time Monitoring: Compared with traditional batteries, the LiTime 24V 100Ah Bluetooth LiFePO4 battery is equipped with Bluetooth function, and you can check the battery status such as battery voltage, current, battery capacity, and so on at any time through LiTime cell phone APP. Bluetooth connection range: within 10 meters of the battery.

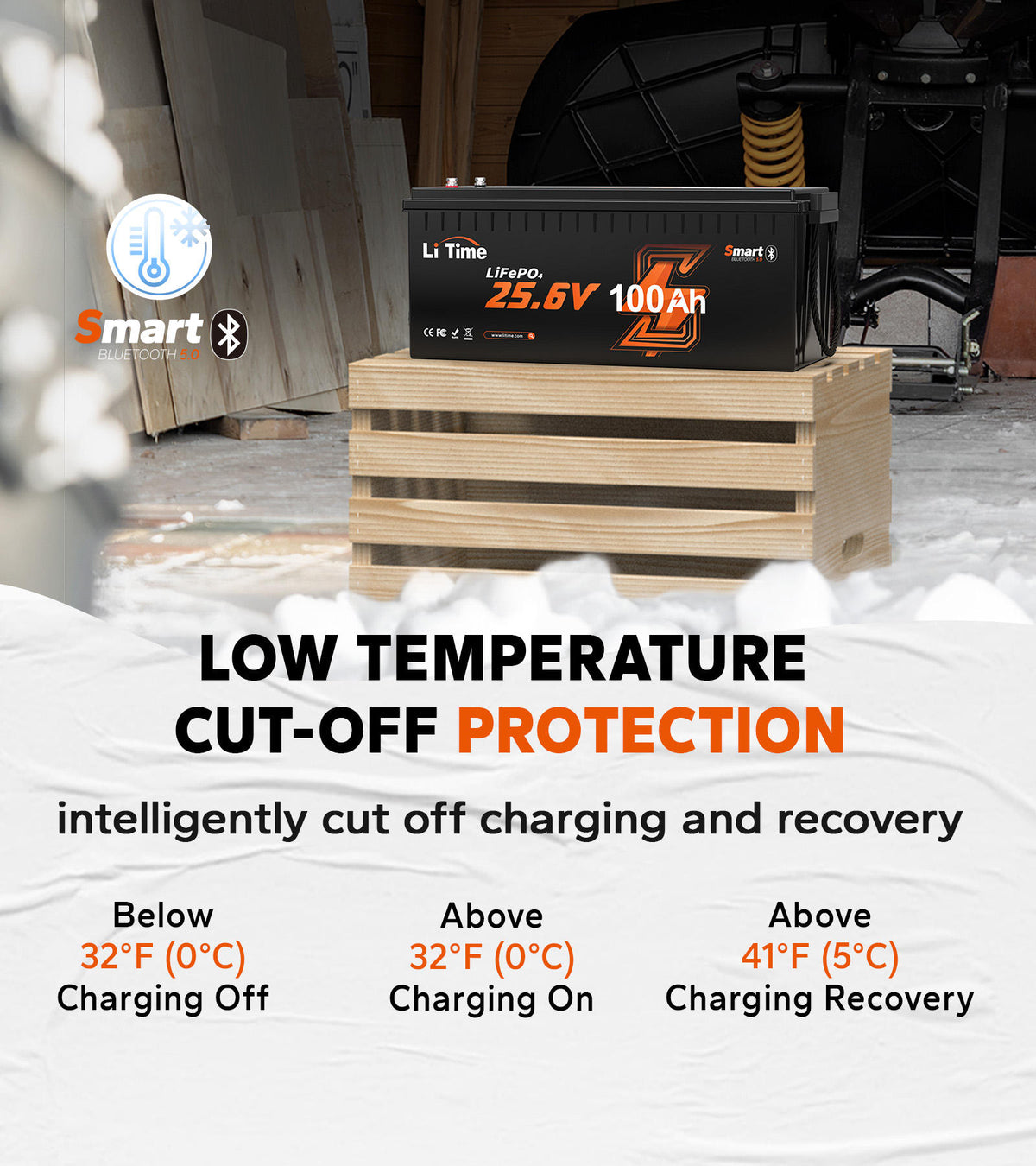

- Low-Temp Protection: The new improved 24V 100Ah Bluetooth LiFePO4 battery has built-in low-temperature charging protection, which automatically cuts off the battery from charging when the cell temperature is below 0℃ to prevent the battery cells from being damaged when charging below freezing point. When the cell temperature is at 5℃, charging is then restored.

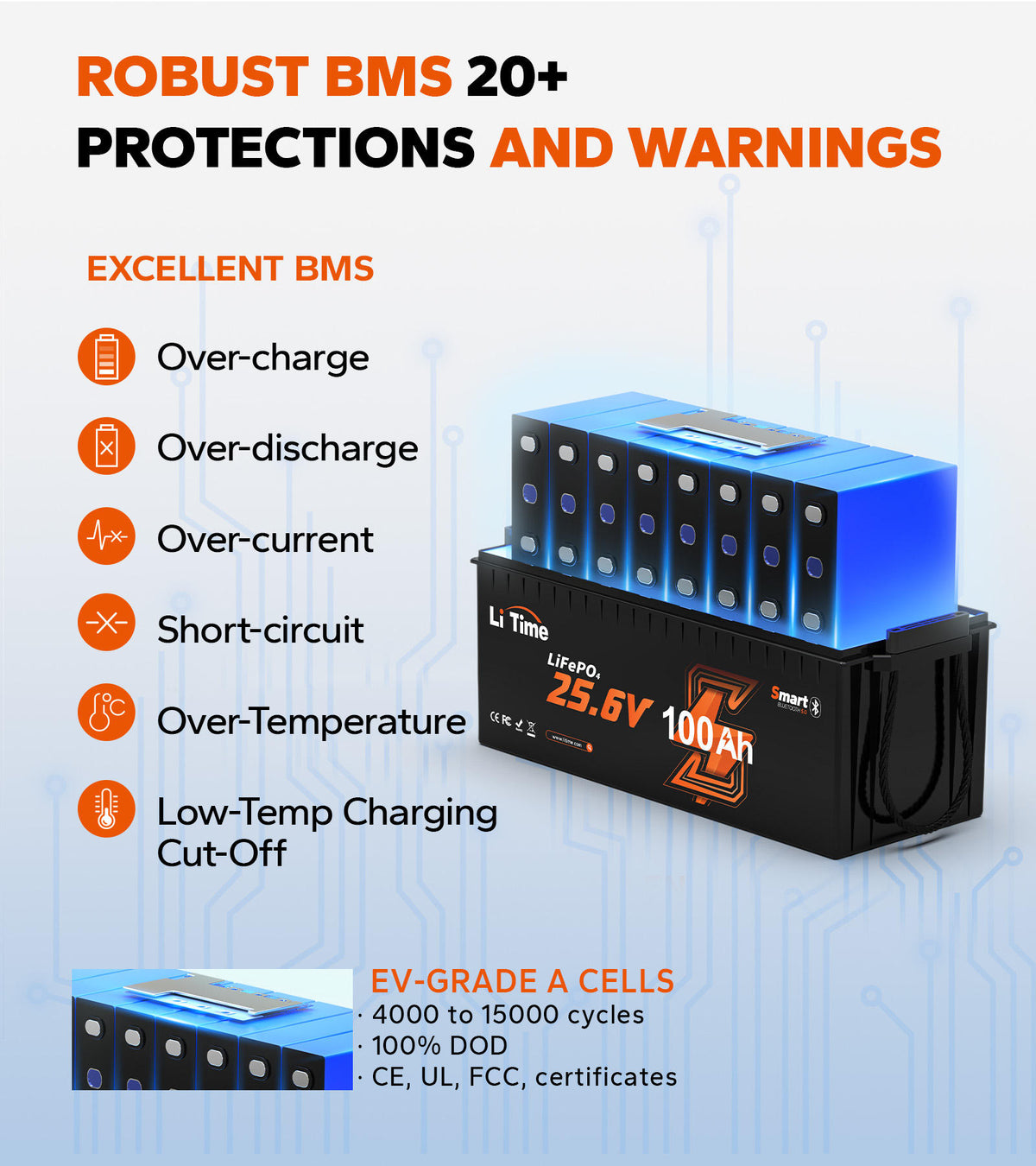

- Safe BMS & Excellent Cell: LiTime batteries are manufactured by Automotive Grade LiFePO4 cells with 100% 2560Wh energy, stable performance(2560W). Compared to a lead-acid battery, The A-grade cells provide superior performance and stability to the battery. They also have a built-in 100A BMS to protect the battery from overcharge, over temperature, over-discharge, over current, low temperature, and short circuit.

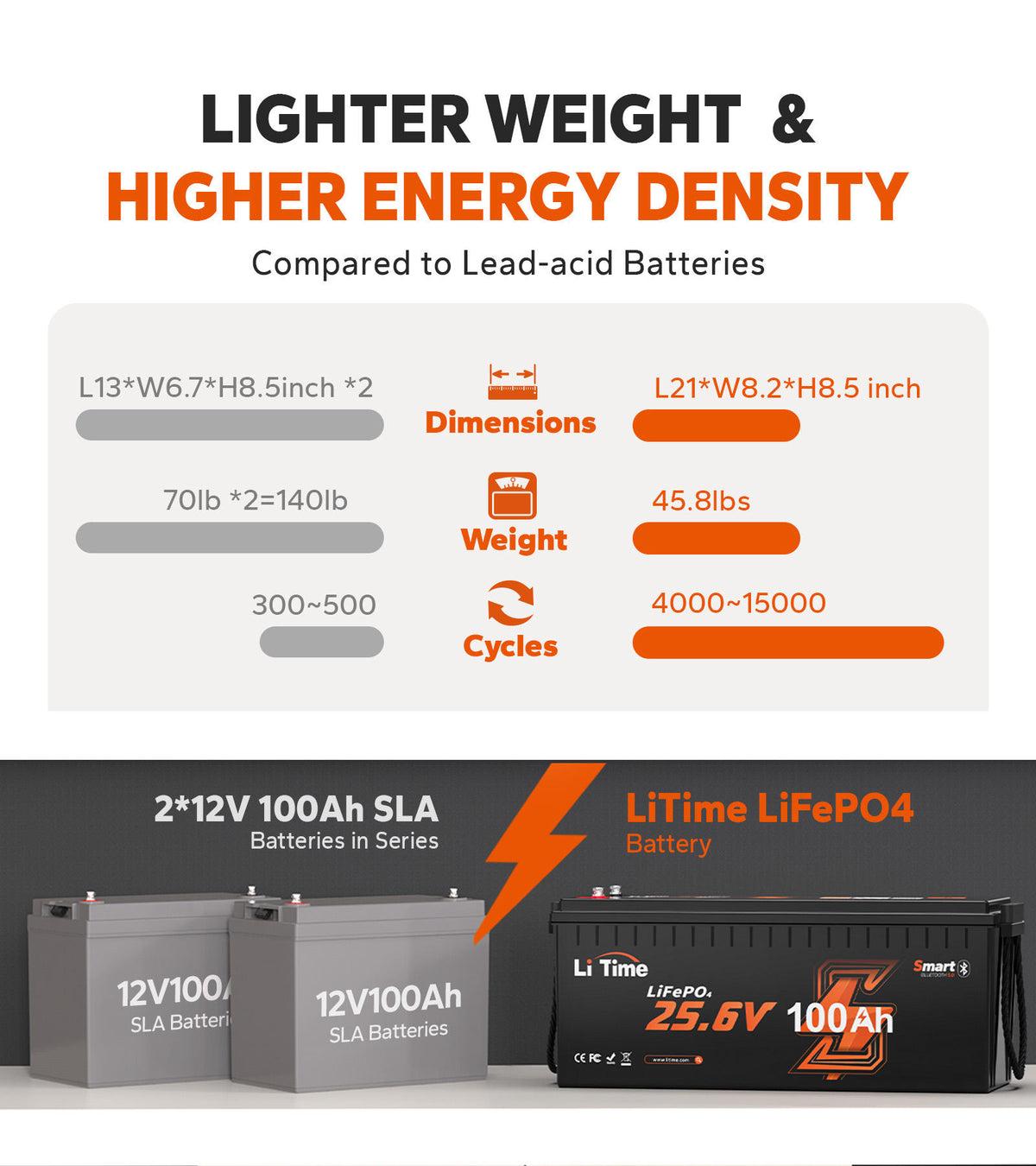

- 10x Efficient Charging & 2x Runtime: The maximum charging current of the LiFePO4 battery of 1C can reduce the charging time by 10 compared to charging an AGM battery (usual charging current: 0.1C). For better long-term battery performance and a longer service life, a charging current of 0.2C is recommended. LiFePO4 has a higher efficiency and a longer runtime after charging.
- Environmentally Friendly and Wide Application: LiTime LiFePO4 battery is the latest generation of battery technology, so it does not contain toxic substances and heavy metals. All LiTime batteries meet CE, FCC, and IP65 certifications. With IP65 waterproof and dustproof, lithium batteries are perfect for solar home, camping, RV, trolling motor, and off-grid applications. Note: Recommended for a 24V trolling motor with 70~100lbs thrust.
- Meets ABYC E-13 Standard: LiTime batteries are installed to ABYC E-13 standards, fully compliant with lithium battery requirements.
Unlock B2B Wholesale Pricing
Verified enterprise accounts enjoy wholesale tiered pricing and priority logistics.
Sign In to Unlock B2B PricingDon't have an enterprise account?Register for B2B Wholesale →
- Tax Exemption Capable
- Pallet Freight Available
- 5-Year Official Warranty
Specification Of LiTime 24V 100Ah LiFePO4 Bluetooth Lithium RV, Marine Battery with Low-Temp Protection
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 2560Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth/Low Temp | |
| Max. Continuous Output Power | 2560W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 4P2S | |
| System Max. Extended Power | 20480W | |
| System Max. Extended Energy | 20480Wh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 28.8±0.4V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 400A(4C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |

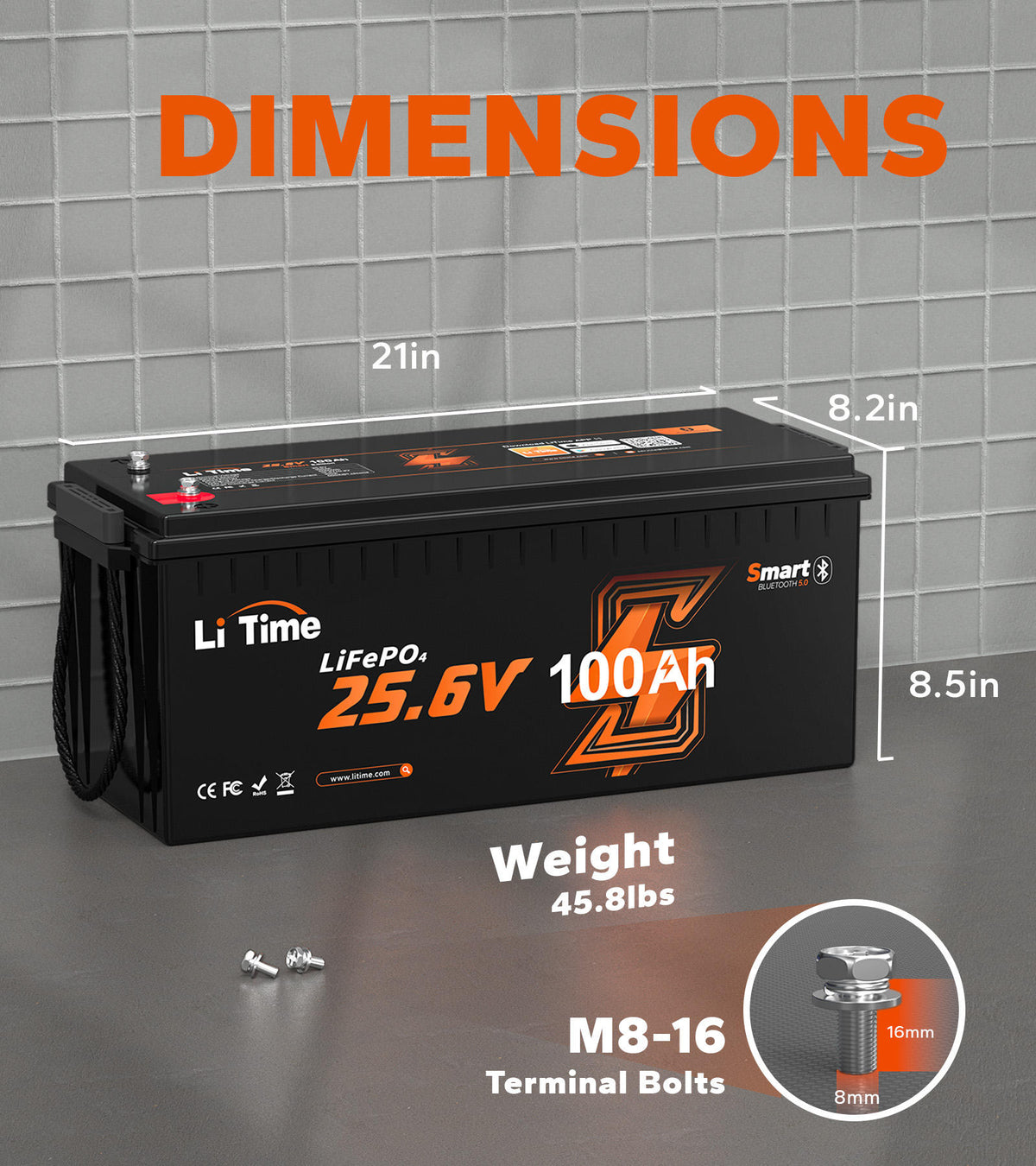

| Mechanical Specification | Dimension | 20.94*8.15*8.5 inch 532*207*216 mm |
| Weight | Approx. 45.59 lbs/20.68kg | |
| Terminal Type | M8*16 |
|
| Terminal Torque | 106.2 to 123.9 lbs | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Over-discharge Over-current Over-voltage Short-circuit |
|
