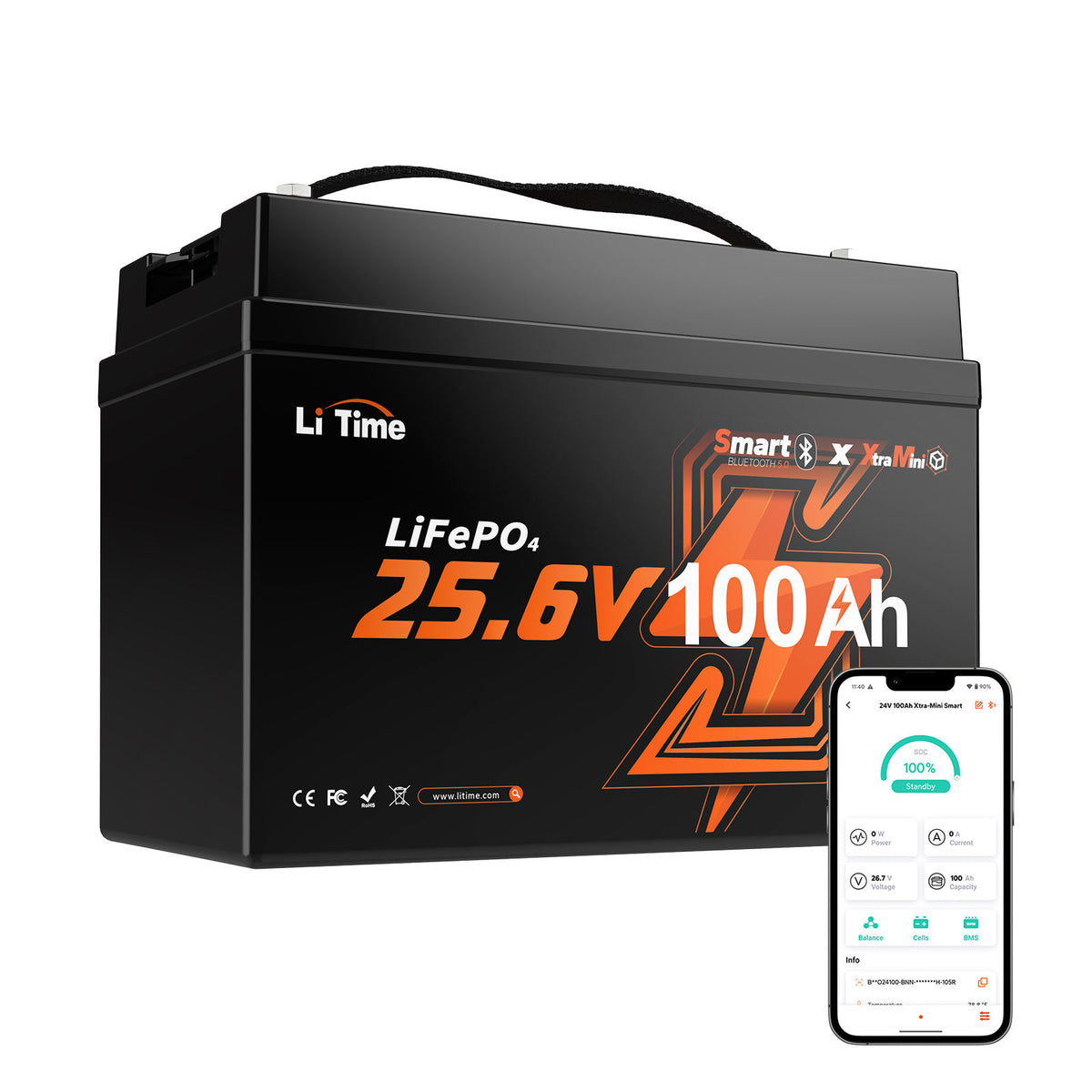

LiTime 24V 100Ah Smart XtraMini Bluetooth LiFePO4 Battery
Compact 24V 100Ah Bluetooth LiFePO4 battery designed for trolling motors, RVs, marine power systems and off-grid solar storage. The Smart XtraMini design delivers 2560Wh of energy in a space-saving battery case.
[Compact 2560Wh Energy Storage] - Provides 25.6V 100Ah capacity in a 333 × 176 × 240 mm case, approximately 40.8% smaller than the previous A160 model.
[Bluetooth 5.0 Monitoring] - Connect to the LiTime App to check battery data and monitor battery status conveniently.

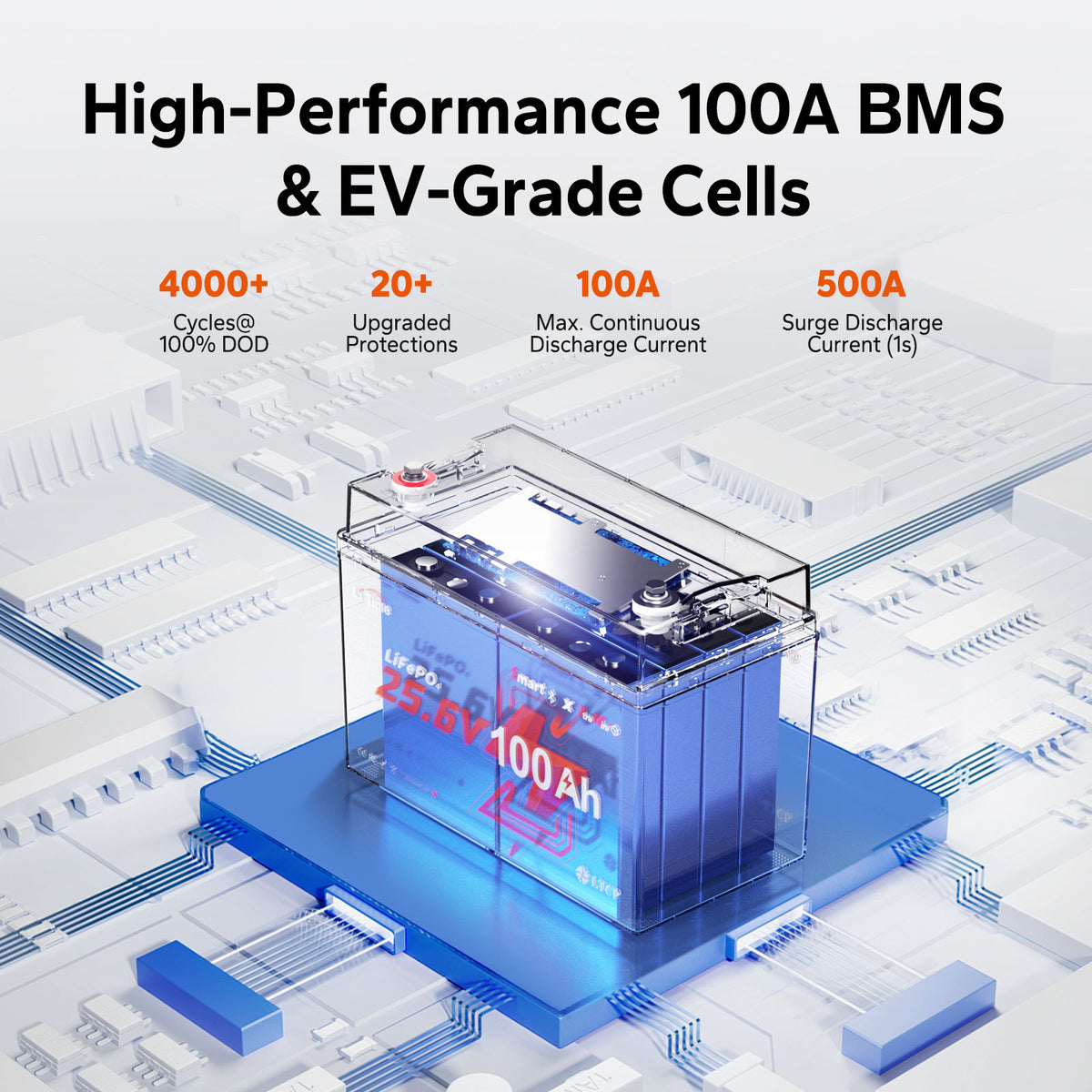

[Reliable Power Output] - Supports 100A continuous discharge and up to 500A peak discharge for 1 second.
[Long Cycle Life] - Delivers 6000+ cycles at 25°C, backed by a 5-year warranty.
[Low-Temperature Protection] - Automatically stops charging below 0°C (32°F) and resumes at 5°C (41°F), helping protect the battery in cold conditions.
[Expandable Battery System] - Supports up to 4 batteries in parallel and 2 in series, enabling energy storage expansion up to 20.48kWh.
[IP65 Protected Housing] - Durable ABS housing with IP65 protection supports RV, marine and outdoor energy applications.
[B2B Battery Supply] - Suitable for marine equipment distributors, RV installers, battery dealers and energy storage system integrators seeking compact 24V lithium battery solutions.

Specification Of LiTime 24V 100Ah Smart XtraMini Bluetooth LiFePO4 Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 25.6V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 2560Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 2560W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 4P2S | |
| System Max. Extended Power | 20480W | |
| System Max. Extended Energy | 20480Wh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 28.8±0.4V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 500A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |

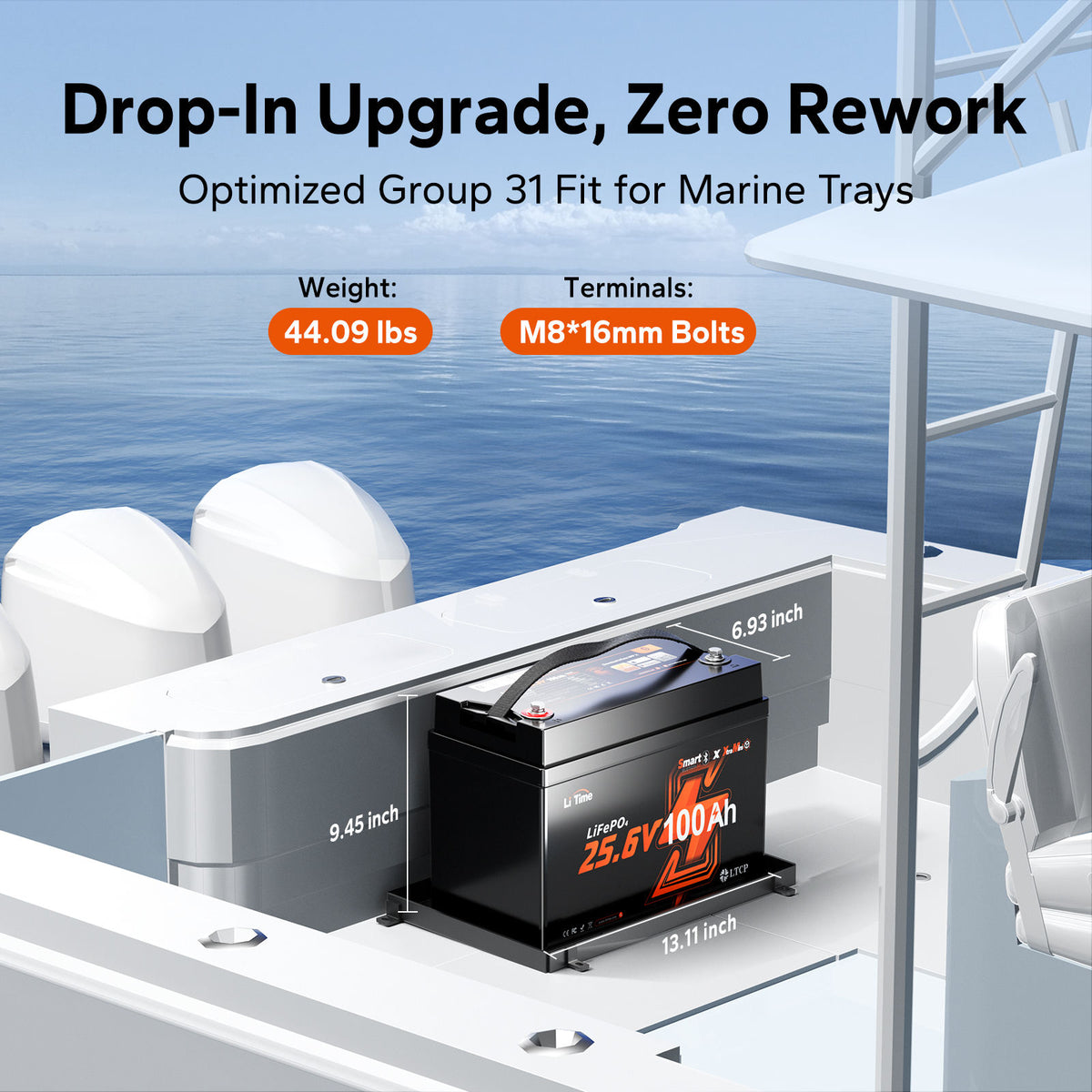

| Mechanical Specification | Dimension | 333*176*240mm/13.11*6.93*9.45inch |
| Weight | 20kg/44.09lbs | |
| Terminal Type | M8*16 | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 Prismatic | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
