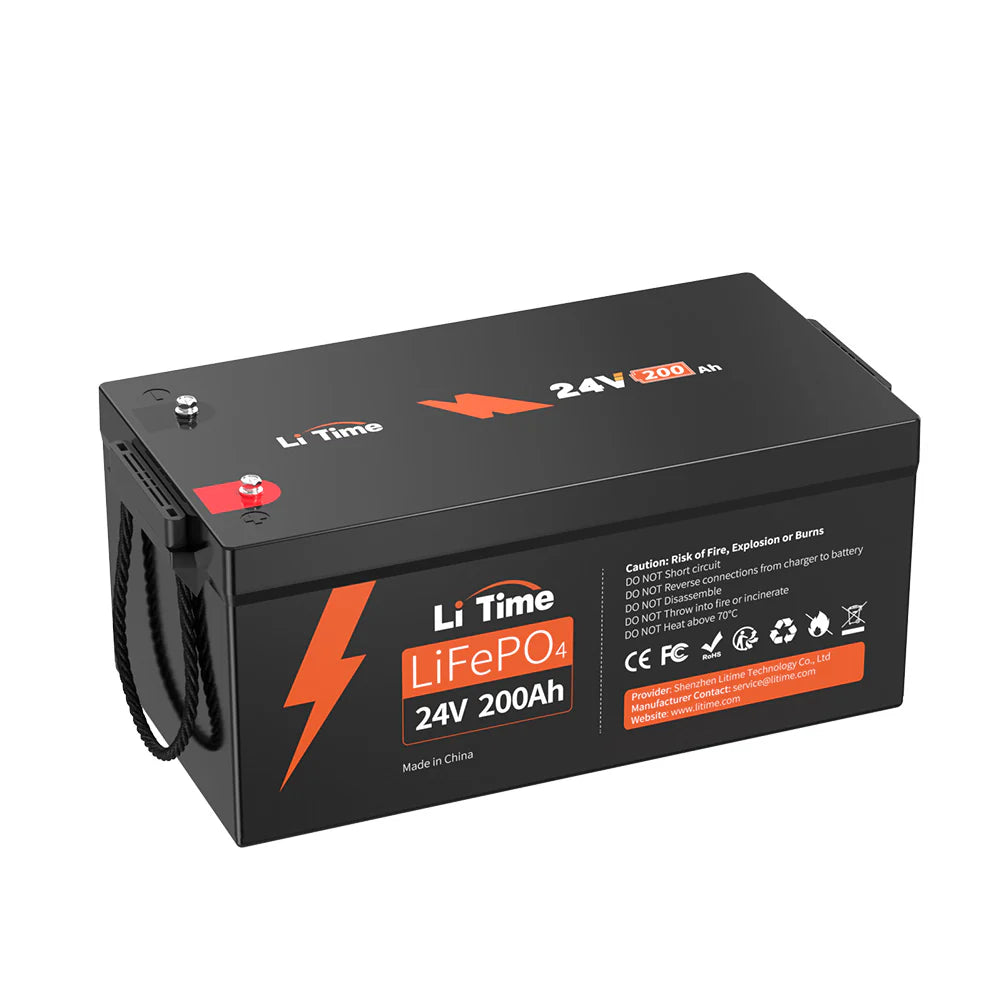

LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery
- 5120Wh High Energy, 5120W Output Power.
- BCI Group 8D Size.
- 1/3 the Weight of a 24V 200Ah Lead-acid Battery.

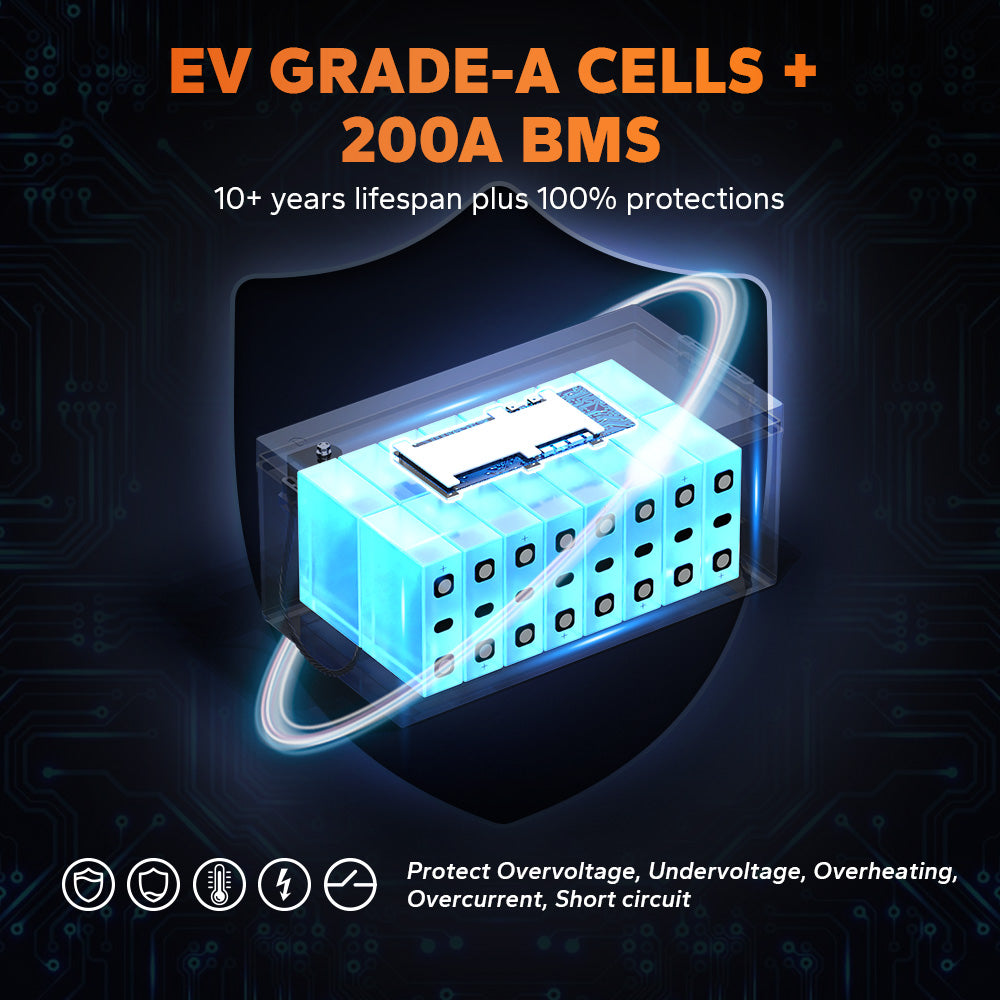

- EV Grade-A Cells, 4000+ deep cycles @100%DOD (10+ Years Lifespan).
- Reliable 200A BMS Provides All-round Protections.
- Max. 4P2S (40.96kWh Energy).
- 61Wh/lbs of High Energy Density.
- Excellent 3% Self-discharge Rate.
- Suitable for Marine/Off-grid/Solar System/Trolling Motor.
- Clean & Non-toxic.
- Simple wiring Connection, Perfectly Replace 4* 12V 100Ah LiFePO4 batteries in series/parallel.
- 4 Flexible Charging Ways (LiFePO4 charger/solar panel/alternator/generator).
- IP65 Waterproof.
- Free Maintenance, Lower TCO (total cost of ownership).
- Note: Do NOT use it as a starting battery.

LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery
Sale price$0.00
Specification Of LiTime 24V 200Ah Group 8D LiFePO4 Lithium Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 25.6V |
| Nominal Capacity | 200A | |
| Nominal Energy | 5120Wh | |
| Internal Resistance | ≤40mΩ | |
| Max. Continuous Output Power | 5120W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 4P2S | |
| System Max. Extended Power | 40960W | |
| System Max. Extended Energy | 40960Wh | |
| Charge Specification | Max. Continuous Charging Current | 200A(1C) |
| Recommended Charging Current | 40A(0.2C) | |
| Recommended Charging Voltage | 28.8±0.4V | |
| Discharge Specification | Max. Continuous Discharging Current | 200A(1C) |
| Peak Discharging Current | 800A(4C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L20.47*W10.55*H8.66 inch /520*268*220mm |
| Weight | Approx. 82.67 lbs/37.5kg | |
| Terminal Type | M8*16 | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | group8D | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
