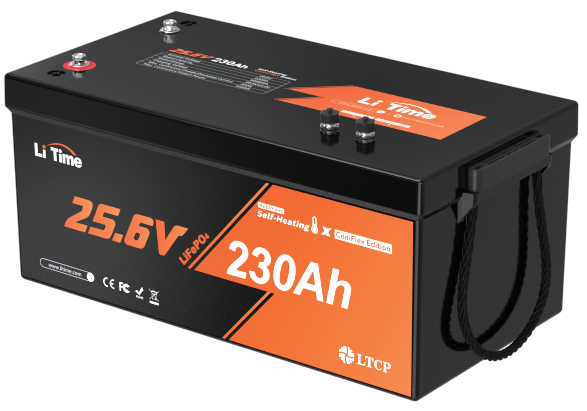

LiTime 24V 230Ah Communication Self-Heating LiFePO4 Battery – 5888Wh Power for RVs, Off-Grid & Marine Systems
Communication & Self-Heating 5888Wh LiFePO4 Battery – Smart Power Solution for RV, Marine and Off-Grid Applications
- Communication Function: Supports CAN communication with Victron systems, Cerbo GX, inverters, solar controllers, and energy management systems.
- 24V 230Ah Capacity: Provides 5888Wh of energy and up to 2560W continuous output power.
- Self-Heating Function: Enables charging in cold environments, with a minimum activation current of 15A.
- Built-In 200A BMS: Provides protection against over-voltage, over-current, over-discharge, short circuit, and other operating risks.
- Smart Monitoring: Supports real-time monitoring of voltage, current, SOC, temperature, remaining capacity, cycle count, and protection status.
- Flexible Expansion: Supports up to 16 batteries in parallel for communication systems and up to 4P2S for non-communication systems.
- Wide Applications: Ideal for RVs, outdoor camping, agricultural equipment, marine systems, home backup, and off-grid energy storage.
Specification Of LiTime 24V 230Ah Communication Self-Heating LiFePO4 Battery – 5888Wh Power for RVs, Off-Grid & Marine Systems
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 25.6V |
| Nominal Capacity | 230Ah | |
| Nominal Energy | 5888Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Communication/Self-Heating | |
| Max. Continuous Output Power | 2560W | |
| BMS Board | 200A | |
| Max. Batteries in Series and Parallel | 16P1S | |
| System Max. Extended Power | 40960W | |
| System Max. Extended Energy | 94208Wh | |
| Charge Specification | Max. Continuous Charging Current | 200A(0.87C) |
| Recommended Charging Current | 46A(0.2C) | |
| Recommended Charging Voltage | 28.8±0.4V | |
| Discharge Specification | Max. Continuous Discharging Current | 200A(0.87C) |
| Peak Discharging Current | 1000A(4.35C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | -20℃ to 50 ℃ / -4℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | 520*268*220mm/ 20.47*10.55*8.66inch |
| Weight | Approx.38.33kg/ 84.5lbs | |
| Terminal Type | M8*16 mm | |
| Terminal Torque | 12 to 14N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | Group 8D | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
|
