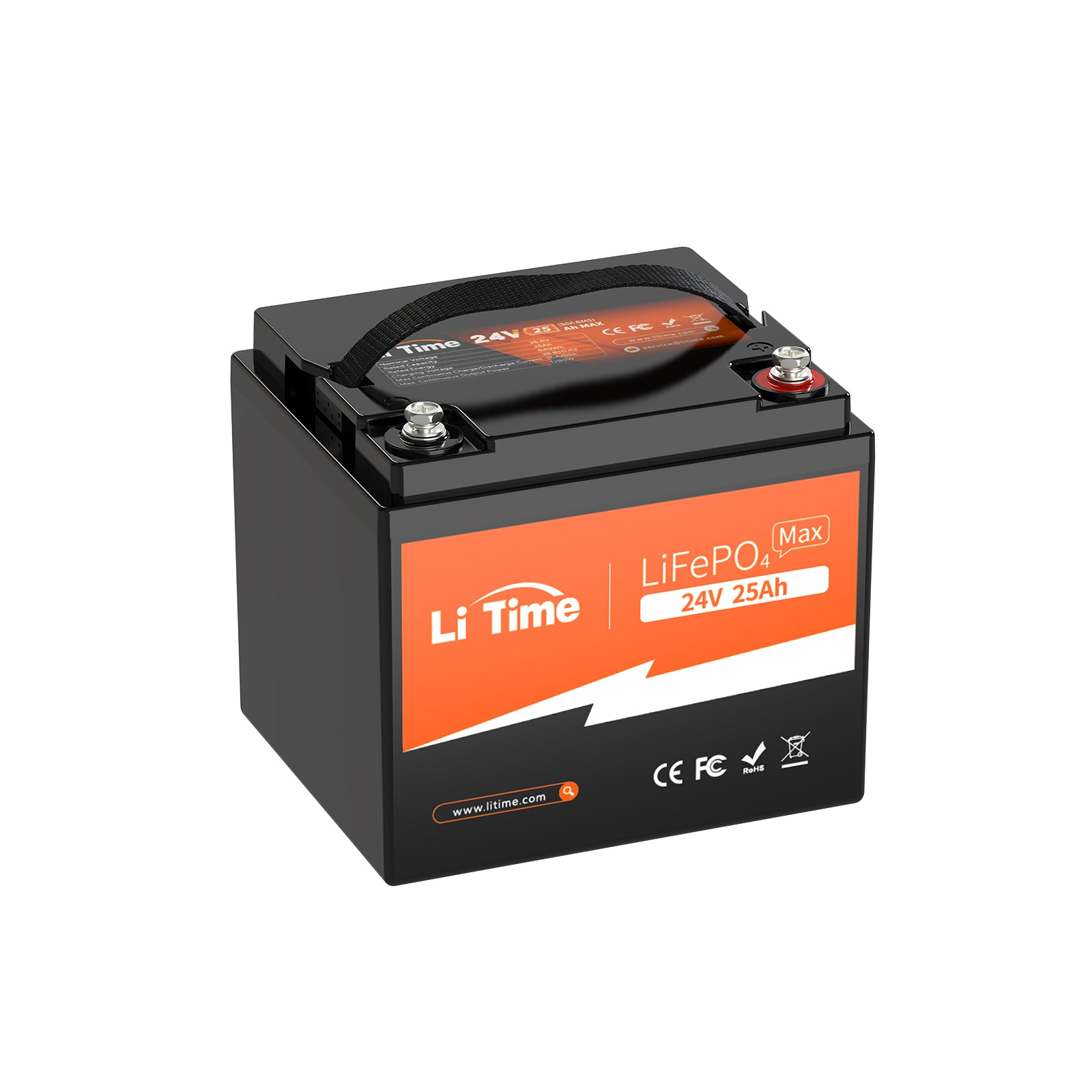

LiTime 24V 25Ah Lithium Mobility Scooter & Electric Wheelchair Batteries
-
2C Discharge Rate Automotive Cells LiTime 24V (25.6V) 25Ah lithium battery is made of automotive grade A cells, which have higher energy density, more stable performance, and lower self-discharge rate. The battery can support maximum 2C rate discharging and 1C rate charging. This enables it to be used in scenarios that require high currents.
-
Built-in 50A BMS Protection LiTime 24V 25Ah Li-FePO4 battery is equipped with 50A BMS boards. The battery management system (BMS) has the functions of over-charging, over-discharging, over-current, over-heating, and short-circuit protection, to provide comprehensive protection for both the user and the battery.
- Small Size & Light Weight With high energy density which is smaller and lighter than lead-acid batteries of the same capacity, making it easier to carry and install. Therefore, the 25.6V 25Ah lithium battery can be installed to power mobility scooters and electric wheelchairs, or used as a power source for agricultural equipment and power tools, to meet the needs of most customers.
- Max. 5.12kWh Energy Expansion Supports up to 4 batteries in parallel and 2 in series connections (Max. 4P2S) to form a 51.2V 100Ah battery system with a maximum energy expansion of 5.12kWh. You have more possibilities to design and create your battery system.
- Purchase with Confidence Exquisite lithium battery technology enables the LiTime 25.6V 25Ah LiFePO4 battery to work brilliantly during a 10-year service life, with 4000+ cycles @100% DOD (6000 cycles @80% DOD, 15000 cycles @60% DOD). What's more, we offer a 5-year warranty.
- Note: Do NOT use it as a starting battery.
Specification Of LiTime 24V 25Ah Lithium Mobility Scooter & Electric Wheelchair Batteries
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 25.6V |
| Nominal Capacity | 25Ah | |
| Nominal Energy | 640Wh | |
| Internal Resistance | ≤40mΩ | |
| Max. Continuous Output Power | 1280W | |
| BMS Board | 50A | |
| Max. Batteries in Series and Parallel | 4P2S | |
| System Max. Extended Power | 10240W | |
| System Max. Extended Energy | 5120Wh | |
| Charge Specification | Max. Continuous Charging Current | 25A(1C) |
| Recommended Charging Current | 5A(0.2C) | |
| Recommended Charging Voltage | 28.8±0.4V | |
| Discharge Specification | Max. Continuous Discharging Current | 50A(2C) |
| Peak Discharging Current | 100A(4C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L7.68*W6.54*H6.77 inch /195*166*172mm |
| Weight | Approx. 13.34 lbs/6.05kg | |
| Terminal Type | M8*14 | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
