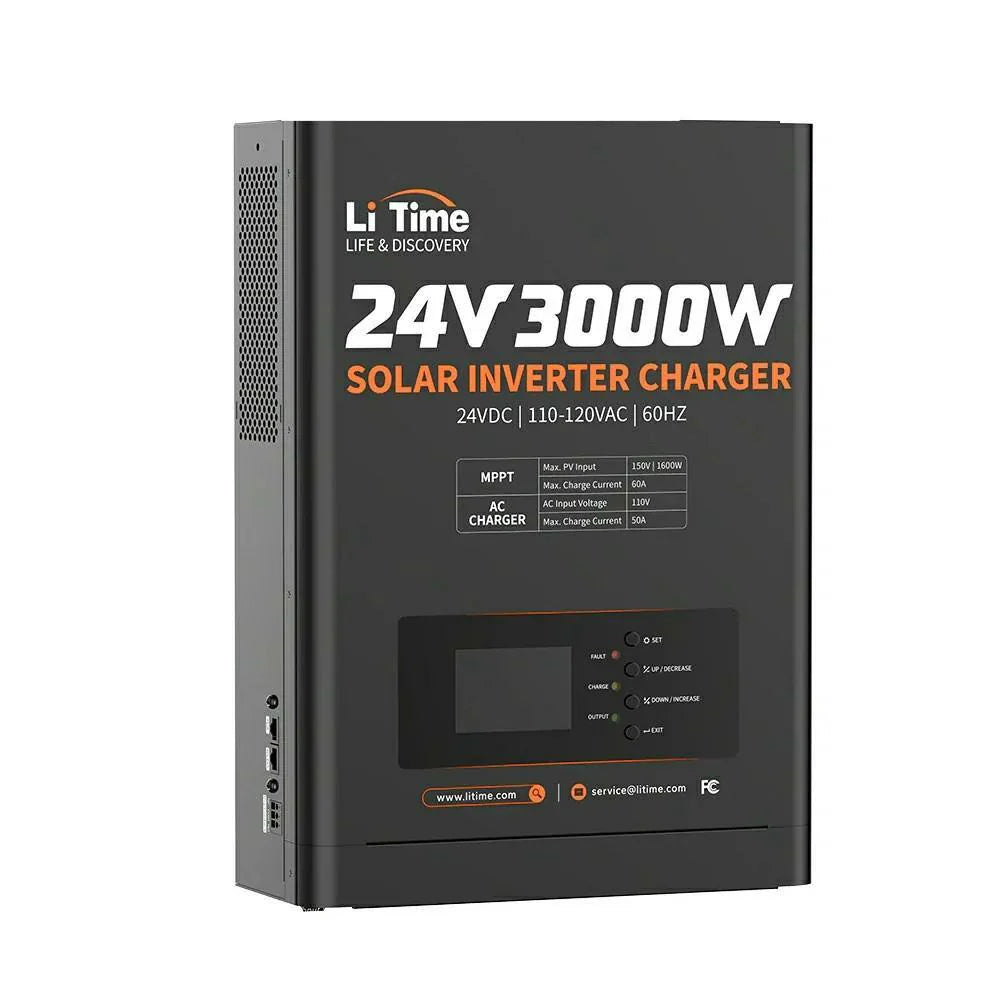

LiTime 24V 3000W Pure Sine Wave Solar Inverter Charger
-
3-in-1 Integration: Combines MPPT solar controller (Max. 60A), pure sine wave inverter (3000W), and battery charger (Max. 50A) in one unit, for fewer wires and simplified operation.
-
High Power Capacity: 3000W rated power & 9000W surge power for high demand power, ideal for home energy storage, and off-grid applications.
-
Smart Charging & Output Modes: With 3 charge modes and 3 output modes, delivering robust flexibility for diverse energy scenarios.
-
Enhanced Energy Stability: Features UPS and multiple output modes, to reduce reliance on traditional energy sources.
-
Integrated LCD Screen & LED Indicators: Allows for real-time system data monitoring.
-
Support RS485 Communication Protocol: Reports battery faults (undervoltage/overvoltage/overcurrent) for system-wide protection.
-
2 Cooling Fans: With 2 adjustable speed fans to efficiently dissipate heat and extend battery life.
-
Comprehensive Protections: Includes load output short circuit, over-temperature, overload, and more for safe and reliable operation.
-
Lithium Battery Activation Function: Activates BMS-protected lithium batteries by grid power for seamless operation.
-
Wide Compatibility: Suitable for 24V lead-acid, lithium, and user modes, including LiTime 24V100Ah/24V100Ah Bluetooth/24V200Ah/24V 230Ah.
- Wide Application: Ideal for home energy storage, off-grid, farm, garage, etc.
LiTime 24V 3000W Pure Sine Wave Solar Inverter Charger
Sale price€531,95
Specification Of LiTime 24V 3000W Pure Sine Wave Solar Inverter Charger
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| AC-DC Charging Specification | Charging Output Voltage | 19–31.2V |
| AC Input Voltage | 120VAC (Nominal); 77–132VAC (Normal Mode); 92–132VAC (UPS Mode) | |
| Charging Current | Adjustable (Range Not Specified) | |
| Max. AC Charging Current | 50A | |
| Max. Combined PV + AC Charging Current | 110A | |
| Input Frequency | 60Hz ±5% | |
| Conversion Efficiency | >85% | |
| Solar Charge Controller Specification | Nominal System Voltage | 24VDC |
| Battery Voltage Range | 19–31.2VDC | |
| Max. PV Open Circuit Voltage | 150VDC | |
| Max. PV Input Power | 1600W | |
| Rated Charging Current | 60A | |
| Max. PV Charging Current | 60A | |
| Conversion Efficiency | >85% | |
| DC Input Specification | Nominal DC Input Voltage | 24V |
| DC Input Voltage Range | 19–31.2VDC | |
| No-load Current | 1A | |
| No-load Power Consumption | ≤30W (Normal Mode); ≤18W (Power Saving Mode) | |
| AC Output Specification | AC Output Voltage | 120VAC |
| Output Frequency | 60Hz ±5% | |
| Continuous Output Power | 3000W | |
| Peak Output Power | 9000W | |
| Peak Power Duration | 1s | |
| Output Waveform | Pure Sine Wave | |
| Waveform Distortion | Linear Load: <3%; Inductive Load: <5% | |
| Inverter Performance | Conversion Efficiency | >85% |
| General Specification | Net Weight | 41.73 lbs / 18.93 kg |
| Dimensions | 465 × 310 × 135 mm / 18.31 × 12.2 × 5.31 in | |
