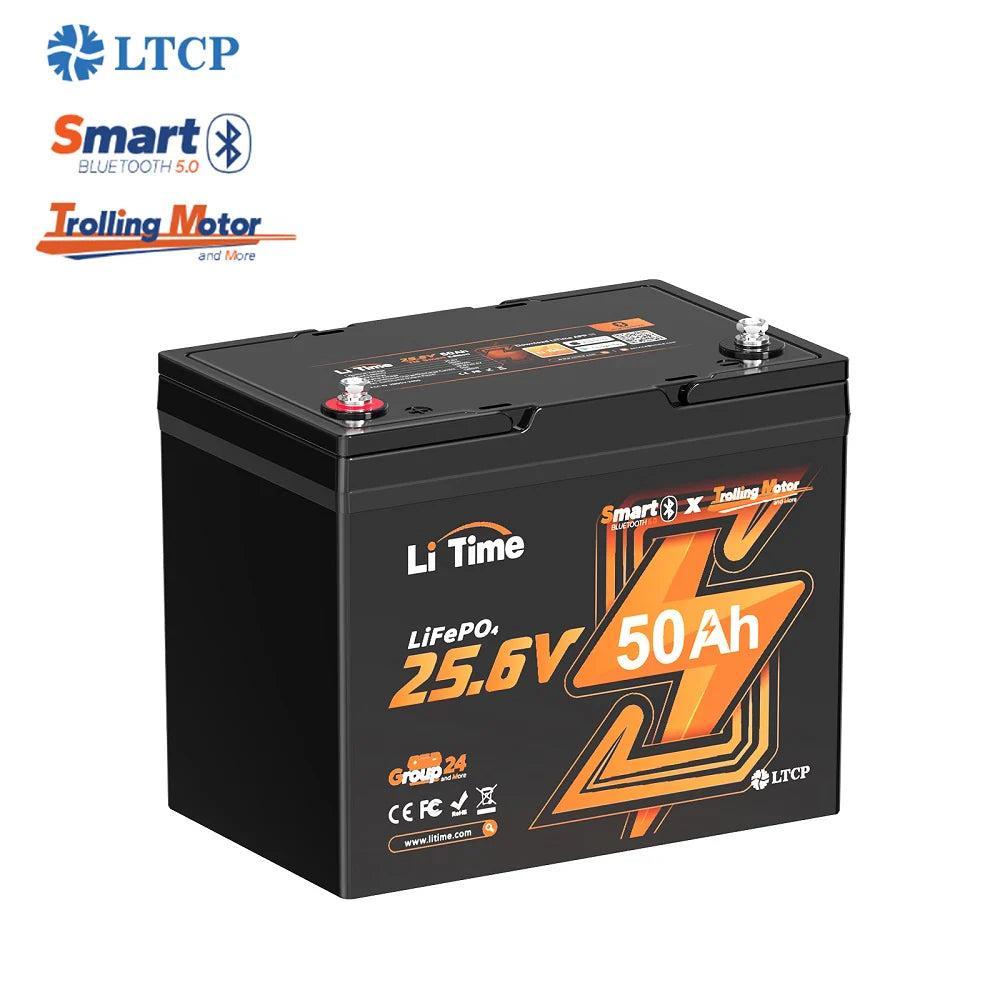

LiTime 24V 50Ah TM LiFePO4 Lithium Marine Trolling Motor Bluetooth Battery

LiTime 24V 50Ah TM LiFePO4 Lithium Marine Trolling Motor Bluetooth Battery

Designed for trolling motors: LiTime 24V 50Ah TM Lithium Iron Phosphate Battery internal cells are FCC, CE certified, and the outer shell is IP65 waterproof and dustproof rated, which is better suited for marine environments and wet environments, helping to prolong the life of the battery with the highest level of safety.Advanced built-in TVS to prevent voltage spikes and excessive surges.Improve the battery's shock resistance when the boat breaks the waves, better suited for both leisure sailing and fishing competitions that require long endurance, allowing you to protect your leisure time and build up your strength for a fierce battle.

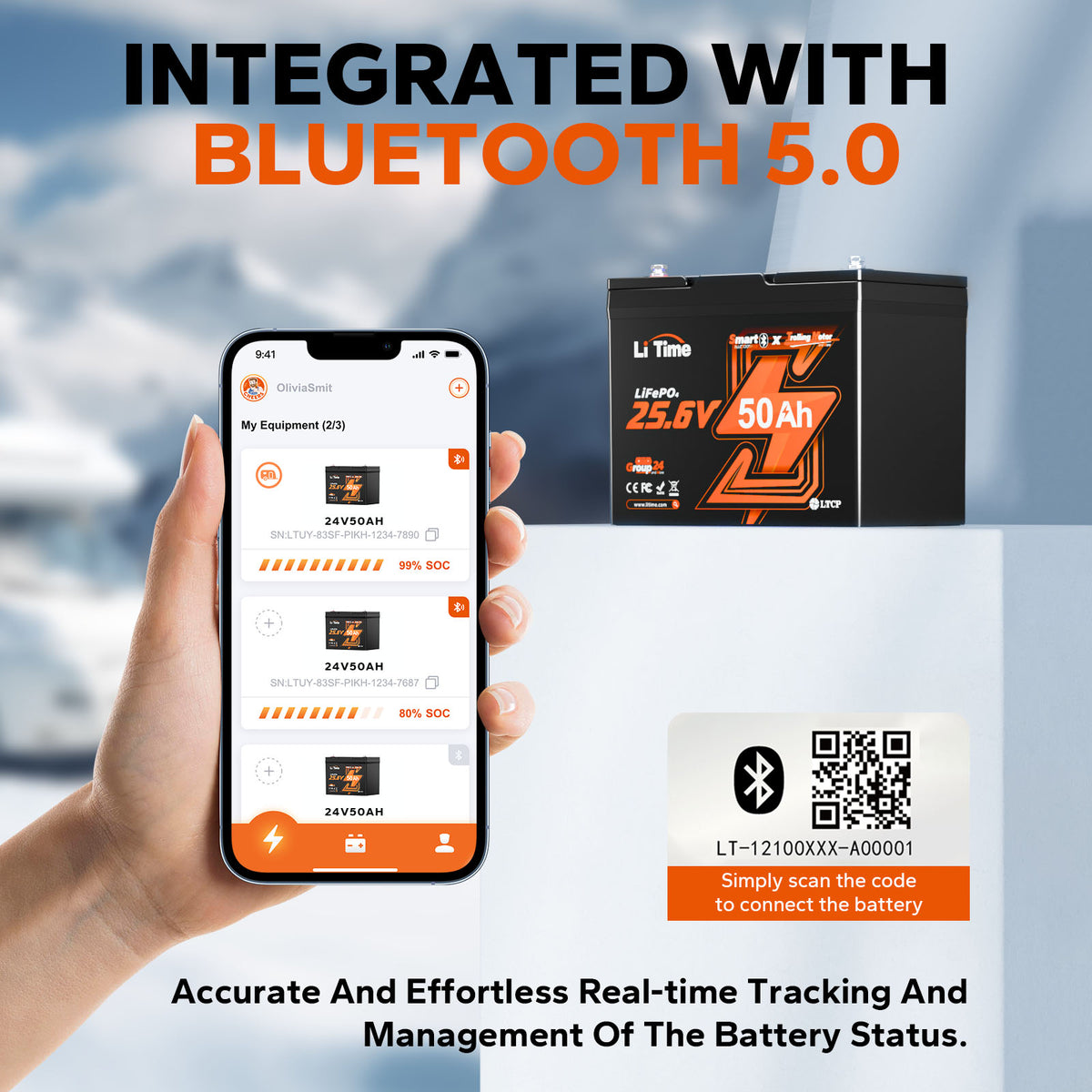

Intelligent Bluetooth, Real-Time Monitoring: LiTime 24V 50Ah TM smart lithium iron phosphate Battery is built-in upgraded intelligent BMS, integrated Bluetooth 5.0 , Bluetooth QR code sticker is designed on the top of the battery, Our deep cycle battery can be connected to your phone by scanning the code, no need to pair the code, easy to operate and the Bluetooth function allows you to track and manage the status of the battery accurately and easily in real time through the LiTime APP.

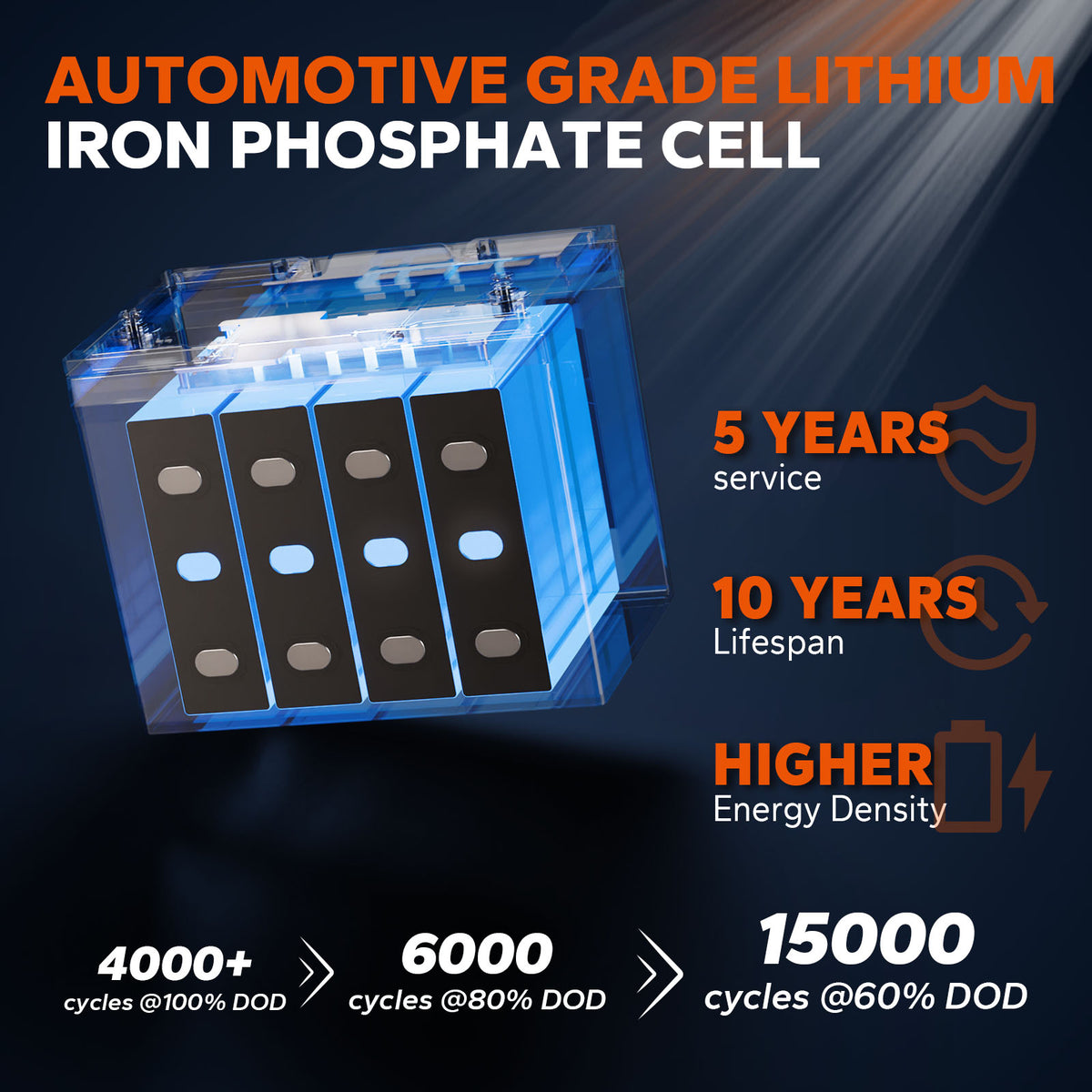

High Energy Density and BMS Low Temperature Protection: LiTime 24V 50Ah TM lithium iron phosphate battery adopts automotive grade lithium iron phosphate cells, which has stable performance, high energy density, high power and superior quality. Meanwhile, the intelligent BMS upgraded to add low-temperature power-off function, which can automatically stop charging in a low-temperature environment, and has multiple functions to prevent the battery from over-charging, over-discharging, over-current and short-circuit etc., to better protect the battery.

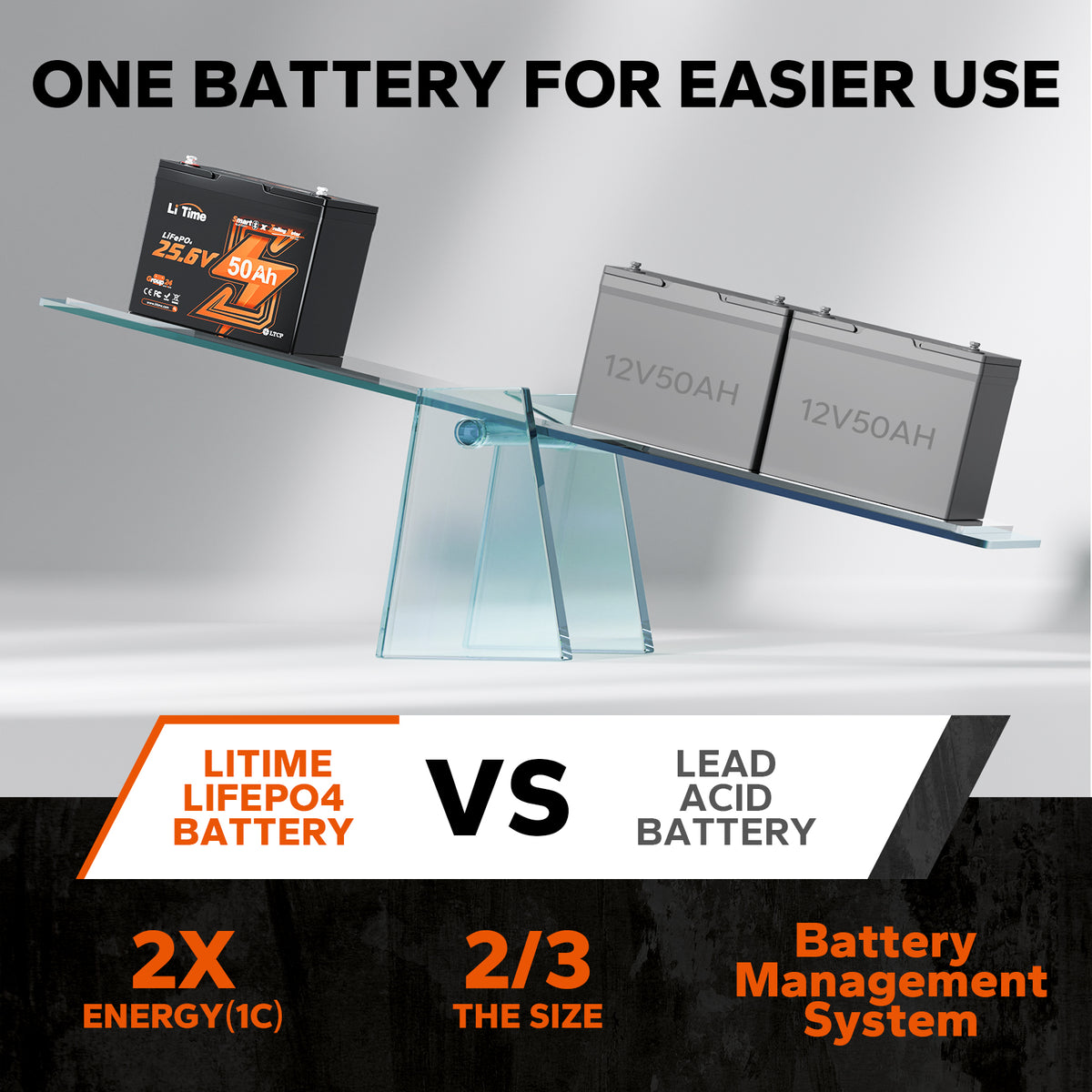

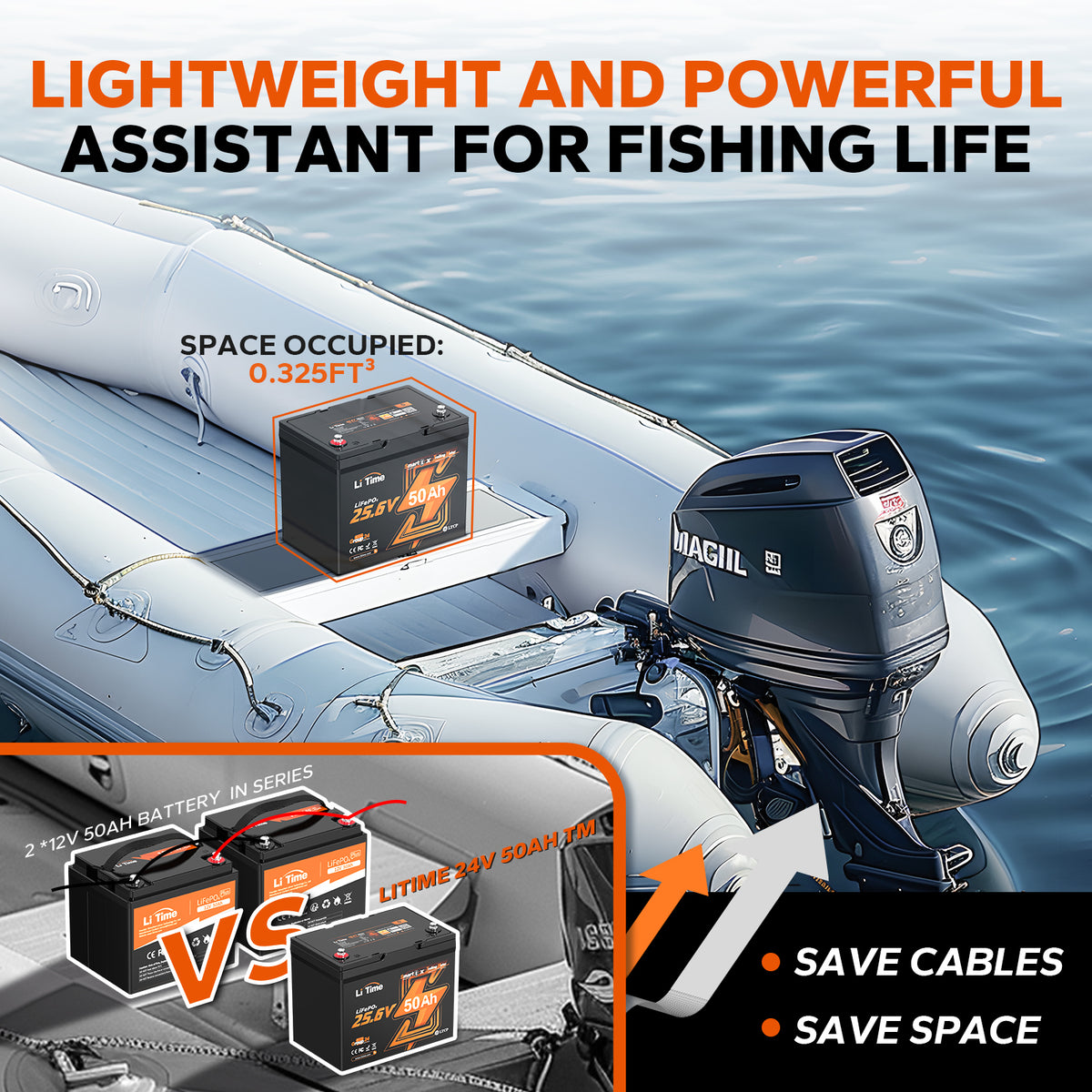

Compact Size, Save Wires: LiTime 24V 50Ah LiFePO4 lithium battery is compact in size, occupying only 0.325ft³ space, smaller than two 12V batteries connected in series to form a 24V battery, which is more suitable for the limited space of the marine environment; Supports up to 4 batteries connected in parallel (up to 4P2S) for greater capacity. Maximum 4 batteries can be connected in parallel to form a 48V 200Ah battery system, with a maximum capacity of 10.24kWh, 10.24kWh energy, and a maximum of 10.24KW load power. Therefore, our Lithium Iron Phosphate batteries are ideal for trolling motors, boats, RVs, campers, off-grid energy storage systems and more.

Specification Of LiTime 24V 50Ah TM LiFePO4 Lithium Marine Trolling Motor Bluetooth Battery

CHARACTERISTICS	PARAMETERS
Basic Specification	Nominal Voltage	25.6V
	Nominal Capacity	50Ah
	Nominal Energy	1280Wh
	Internal Resistance	≤40mΩ
	Function	Bluetooth,Low Temperature
	Max. Continuous Output Power	1280W
	BMS Board	50A
	Max. Batteries in Series and Parallel	4P2S
	System Max. Extended Power	10240W
	System Max. Extended Energy	10240Wh
Charge Specification	Max. Continuous Charging Current	50A(1C)
	Recommended Charging Current	10A(0.2C)
	Recommended Charging Voltage	28.8±0.4V
Discharge Specification	Max. Continuous Discharging Current	50A(1C)
Discharge Specification	Peak Discharging Current	250A(5C)
Environment Specification	Storage Temperature Range	-10℃ to 50 ℃ / 14℉ to 122 ℉
	Recommended Storage Temperature	10℃ to 35 ℃ / 50℉ to 95 ℉
	Charging Temperature Range	0℃ to 50 ℃ / 32℉ to 122 ℉
	Discharging Temperature Range	-20℃ to 60 ℃ / -4℉ to 140 ℉

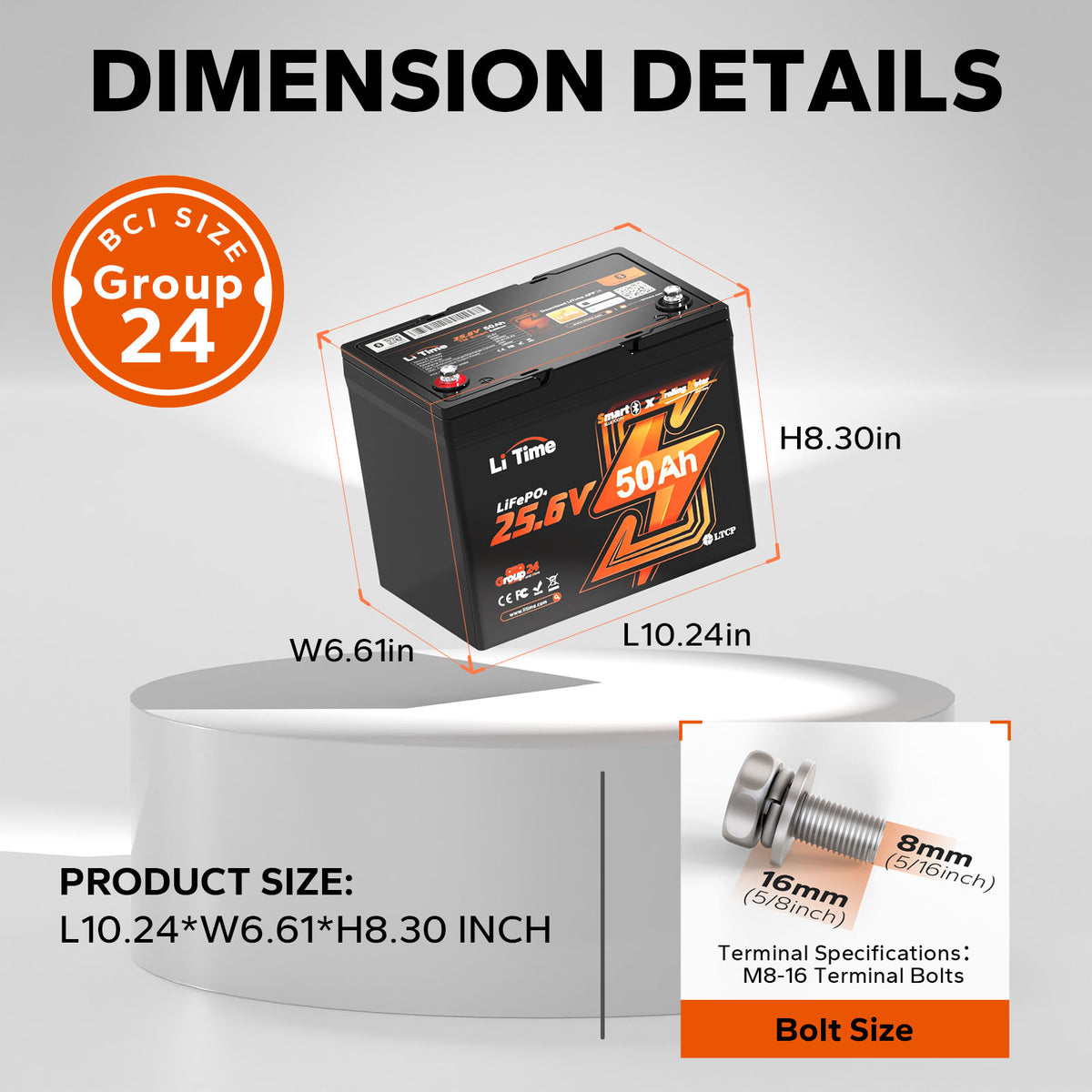

Mechanical Specification	Dimension	10.246.618.27inch
	Weight	9.6kg/21.2lbs
	Terminal Type	M8*16 mm
	Terminal Torque	106.2 to 123.9 inch·lbs/12 to 14N·m
	Case Material	ABS
	IP Rating	IP65
	Cell Type-chemistry	LiFePO4
	BCI	group24
Safety Specification	Certifications	FCC, CE, RoHS, UN38.3
Safety Specification	Protection	Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.

Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.

Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.

Product Datasheet Download

Download the product specification sheet for technical review, project evaluation, or purchasing reference.

Download Datasheet
