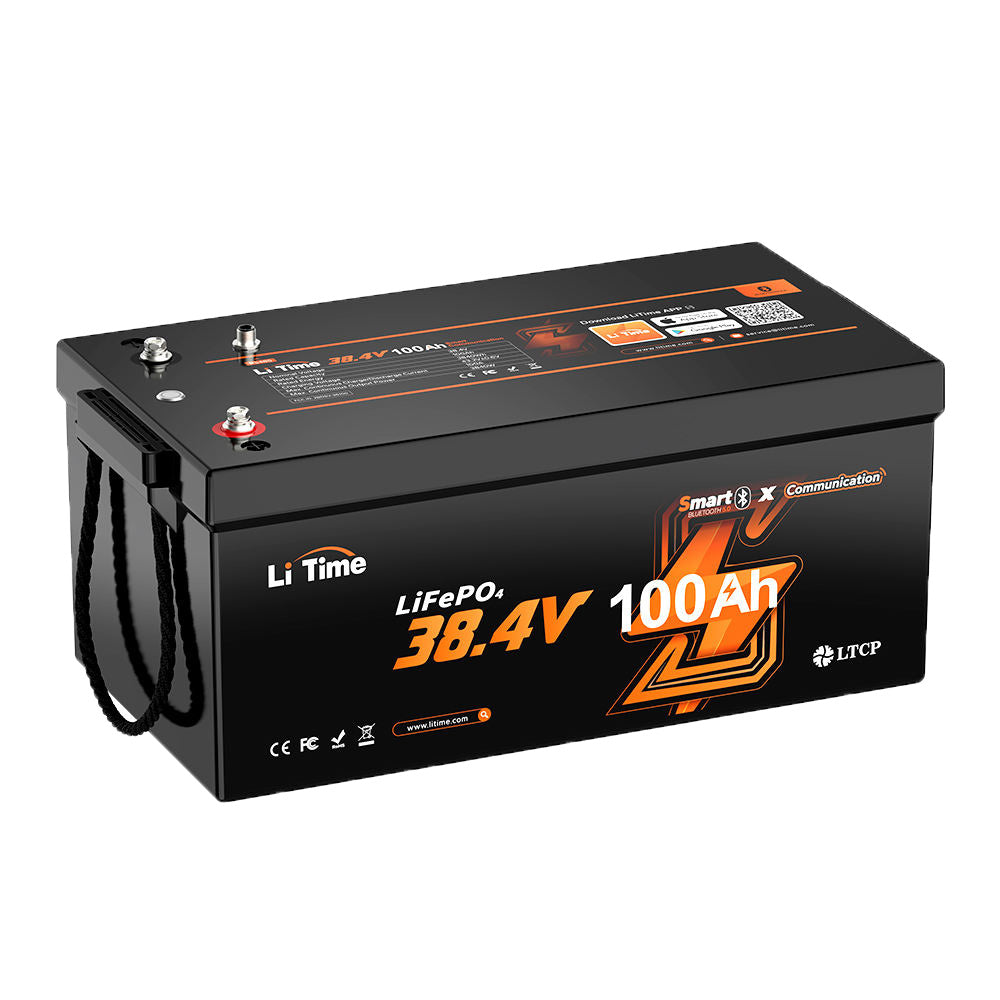

LiTime 36V 100Ah Bluetooth Communication LiFePO4 Battery for Golf Carts, Marine & Agricultural Equipment

LiTime 36V 100Ah Bluetooth Communication LiFePO4 Battery for Golf Carts, Marine & Agricultural Equipment

Smart 3840Wh LiFePO4 Battery with Bluetooth & RS485 – Reliable Power Solution for Golf Carts, Marine and Electric Drive Applications

Bluetooth & RS485 Communication: Monitor battery voltage, current, SOC, protection status, and charge/discharge data through the mobile app or compatible display.
36V 100Ah Capacity: Provides 3840Wh of energy and up to 3840W continuous output power.
100A BMS: Offers protection against over-voltage, over-current, over-discharge, short circuit, high temperature, and low temperature.
Low-Temperature Protection: Supports charging from 32°F to 122°F and discharging from -4°F to 140°F.
Expandable 4P1S System: Connect up to four batteries in parallel for up to 15,360Wh system energy.
Durable Group 8D Design: IP65-rated ABS housing with a 4,000+ cycle life and 5-year warranty.
Wide Applications: Ideal for compatible golf carts, marine electric outboard motors, agricultural equipment, and outdoor electric drive systems.

Specification Of LiTime 36V 100Ah Bluetooth Communication LiFePO4 Battery for Golf Carts, Marine & Agricultural Equipment

CHARACTERISTICS	PARAMETERS
Basic Specification	Nominal Voltage	38.4V
	Nominal Capacity	100Ah
	Nominal Energy	3840Wh
	Internal Resistance	≤40mΩ
	Function	Bluetooth/ComFlex
	Max. Continuous Output Power	For Electric Cart: 3000W
	BMS Board	100A
	Max. Batteries in Series and Parallel	4P1S
	System Max. Extended Power	15360W
	System Max. Extended Energy	15360Wh
Charge Specification	Max. Continuous Charging Current	100A(1C)
	Recommended Charging Current	20A(0 .2C)
	Recommended Charging Voltage	43.2 ±0.6V
Discharge Specification	Max. Continuous Discharging Current	100A(1C)
Discharge Specification	Peak Discharging Current	600A/s
Environment Specification	Storage Temperature Range	-10°C - 50°C (14°F - 122°F)
	Recommended Storage Temperature	10°C - 35°C (50°F - 95°F)
	Charging Temperature Range	0°C - 50°C (32°F - 122°F)
	Discharging Temperature Range	-20°C - 60°C (-4°F - 140°F)

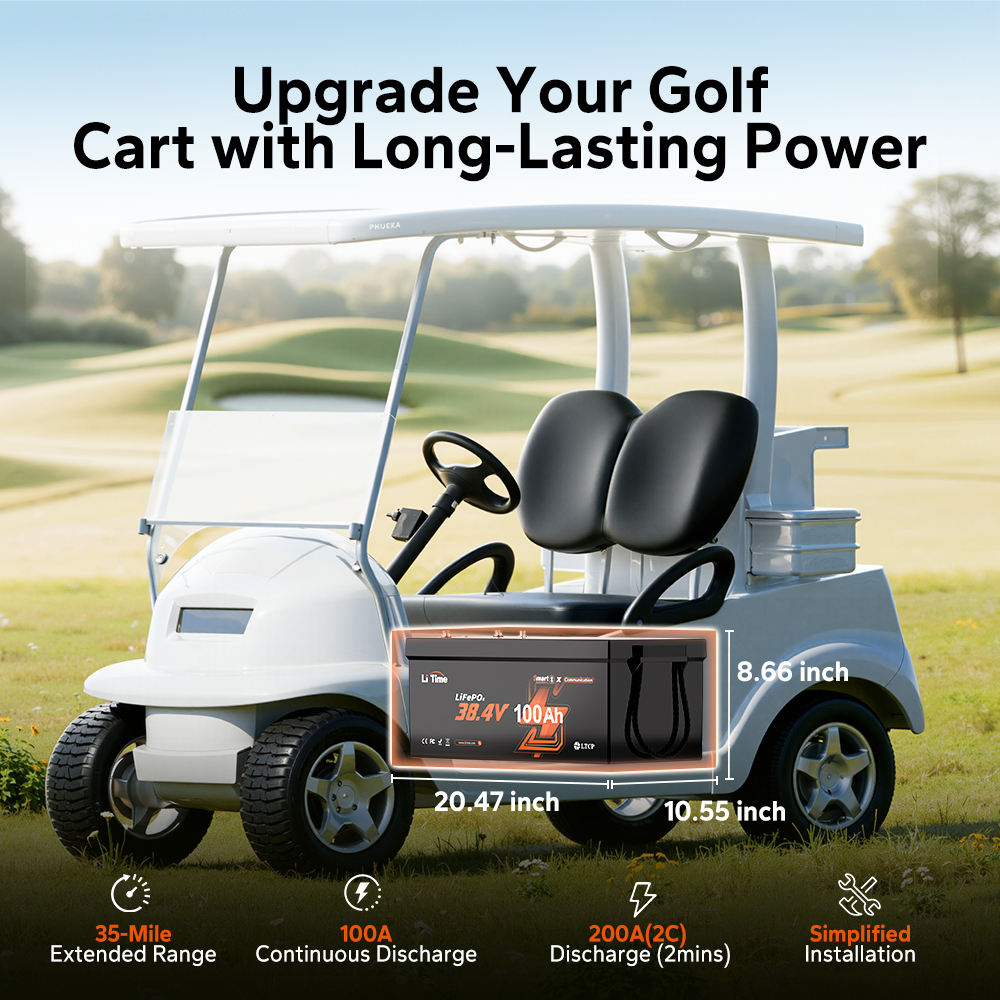

Mechanical Specification	Dimension	L20.47W10.55H8.66 inch 520268220mm
	Weight	Approx. 61.06 lbs/27 .7kg
	Terminal Type	M8*16mm
	Terminal Torque	12 to 14 N·m
	Case Material	ABS
	IP Rating	IP65
	Cell Type-chemistry	LiFePO4
	BCI	Group 8D
Safety Specification	Certifications	FCC, CE, RoHS, UN38.3
Safety Specification	Protection	Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with energy products, compatible power system accessories, technical assistance, and global supply services.

Product Selection & Technical Support

Our team provides product information and technical assistance for commercial and project-based applications, including product selection, system compatibility evaluation, technical documentation, and installation guidance.

Global Supply & Overseas Delivery

Selected in-stock products may be available for shipment from LiTime overseas warehouses. Availability, shipping methods, and delivery schedules depend on the product model, quantity, inventory, and destination.

Technical Documents & Compliance

Available documentation may include product datasheets, user manuals, installation instructions, applicable certification documents, and relevant shipping documents.

Document availability and certification coverage vary by product model and destination market.

Packing & Shipment Support

Products are packed with appropriate protective materials for transportation. Bulk-order packaging and shipment arrangements can be discussed based on product type, order quantity, and destination.

Commercial Purchasing & Project Cooperation

LiTime supports bulk purchasing, distributor cooperation, and project-based supply arrangements. Our team can assist with product selection, technical documentation, order coordination, and delivery planning.

Product Liability Insurance

LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, subject to applicable policy terms and coverage.

After-Sales Support

LiTime provides technical assistance and after-sales support. Warranty terms and available services may vary by product model and market. Please refer to the applicable product documentation for details.
