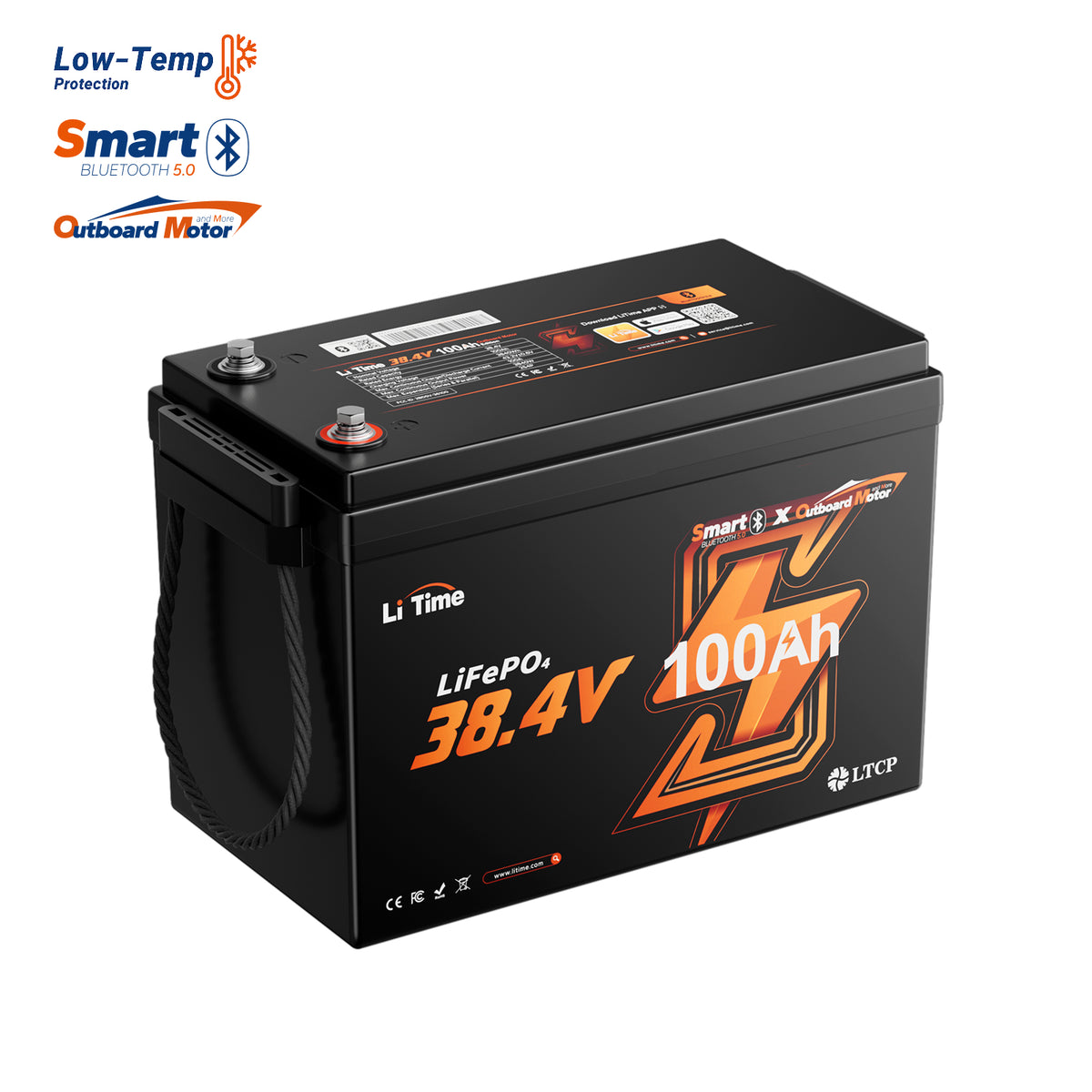

LiTime 36V 100Ah Bluetooth LiFePO4 Battery for 36V Trolling Motors, Electric Outboards & Golf Carts
Bluetooth 3840Wh LiFePO4 Battery – High-Capacity Power Solution for Marine, Electric Outboard and Golf Cart Applications
- 36V 100Ah Capacity: Provides 3840Wh of energy and up to 3840W continuous output power.

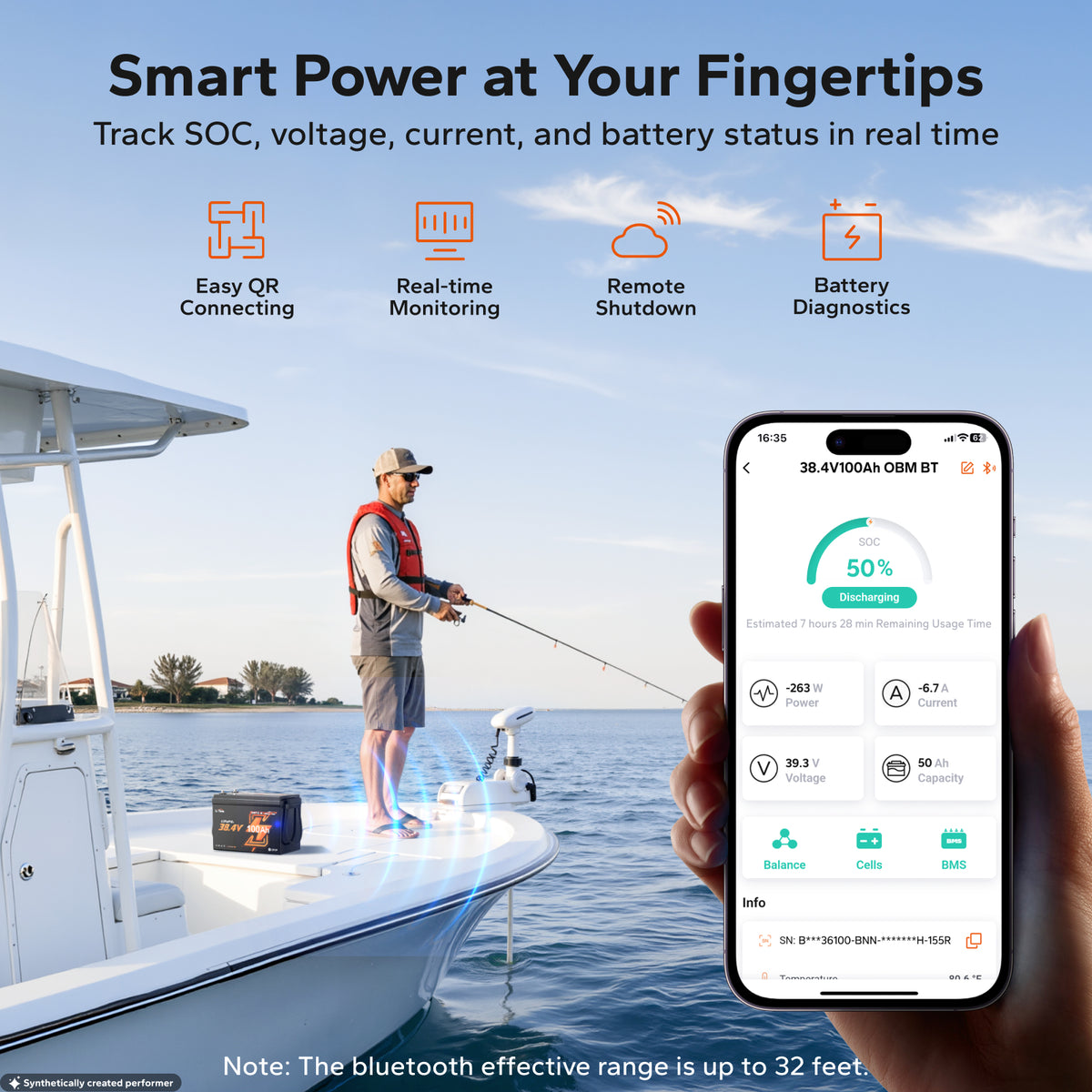

- Bluetooth Smart Battery: Supports convenient battery monitoring and intelligent management.
- High-Power Performance: Delivers up to 100A continuous discharge current and 500A peak discharge current.
- Flexible Expansion: Supports up to 4P2S configuration, with maximum system energy and continuous output power of 30,720Wh and 30,720W.
- Reliable BMS Protection: Includes low-temperature charging, over-voltage, over-current, over-discharge, short-circuit, and high-temperature protection, with 30-second over-current recovery and pre-charge function.
- Durable Marine Design: Features an IP67-rated A155 ABS housing for demanding outdoor and marine environments.
- Wide Applications: Ideal for 36V trolling motors, 36V/72V electric outboard systems, marine TM and OBM applications, and 36V golf carts.
Specification Of LiTime 36V 100Ah Bluetooth LiFePO4 Battery for 36V Trolling Motors, Electric Outboards & Golf Carts
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 38.4V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 3840Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 3840W | |
| BMS Board | 100A | |
| Max. Batteries in Series and Parallel | 4P2S | |
| System Max. Extended Power | 30720w | |
| System Max. Extended Energy | 30720Wh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 43.2±0.6V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 500A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |

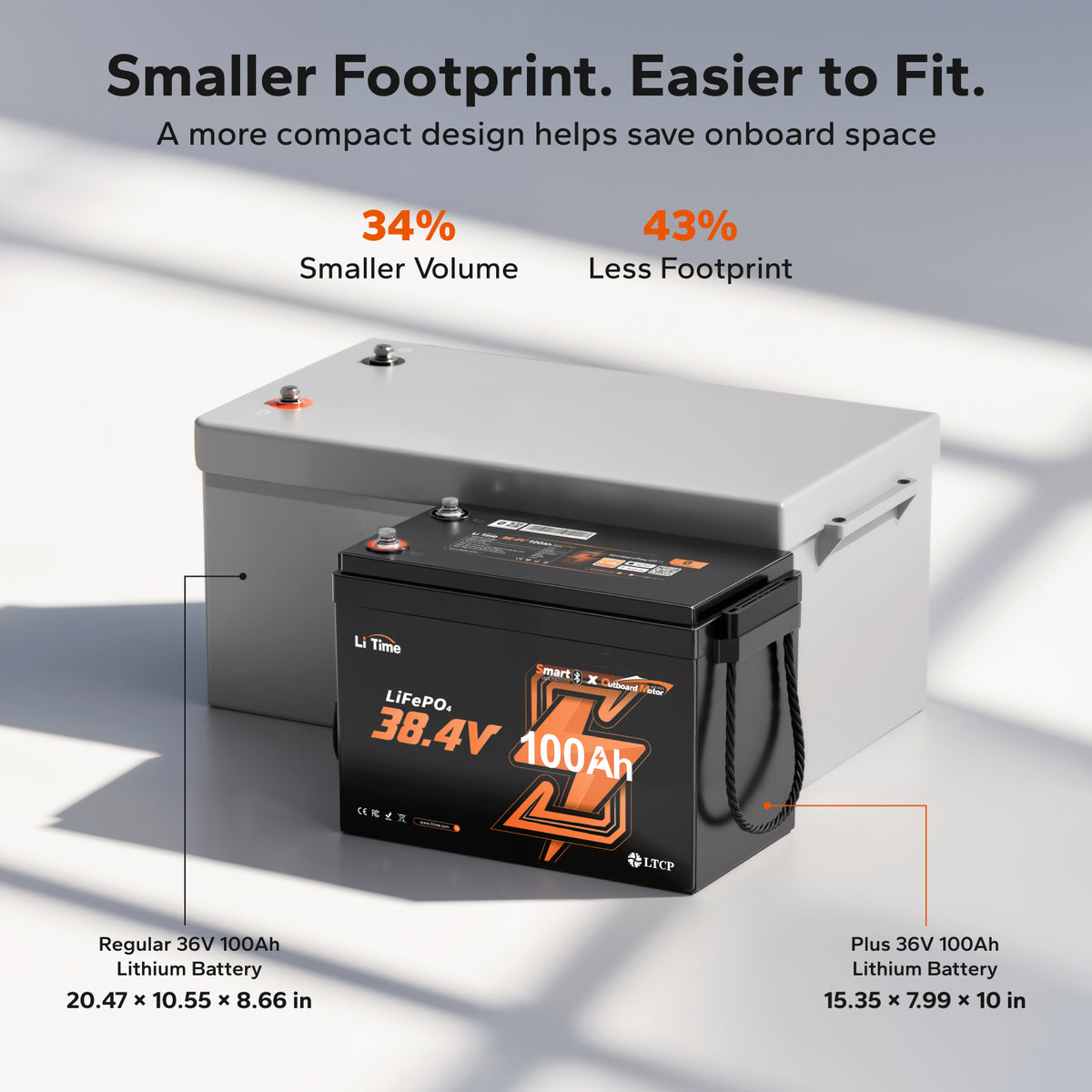

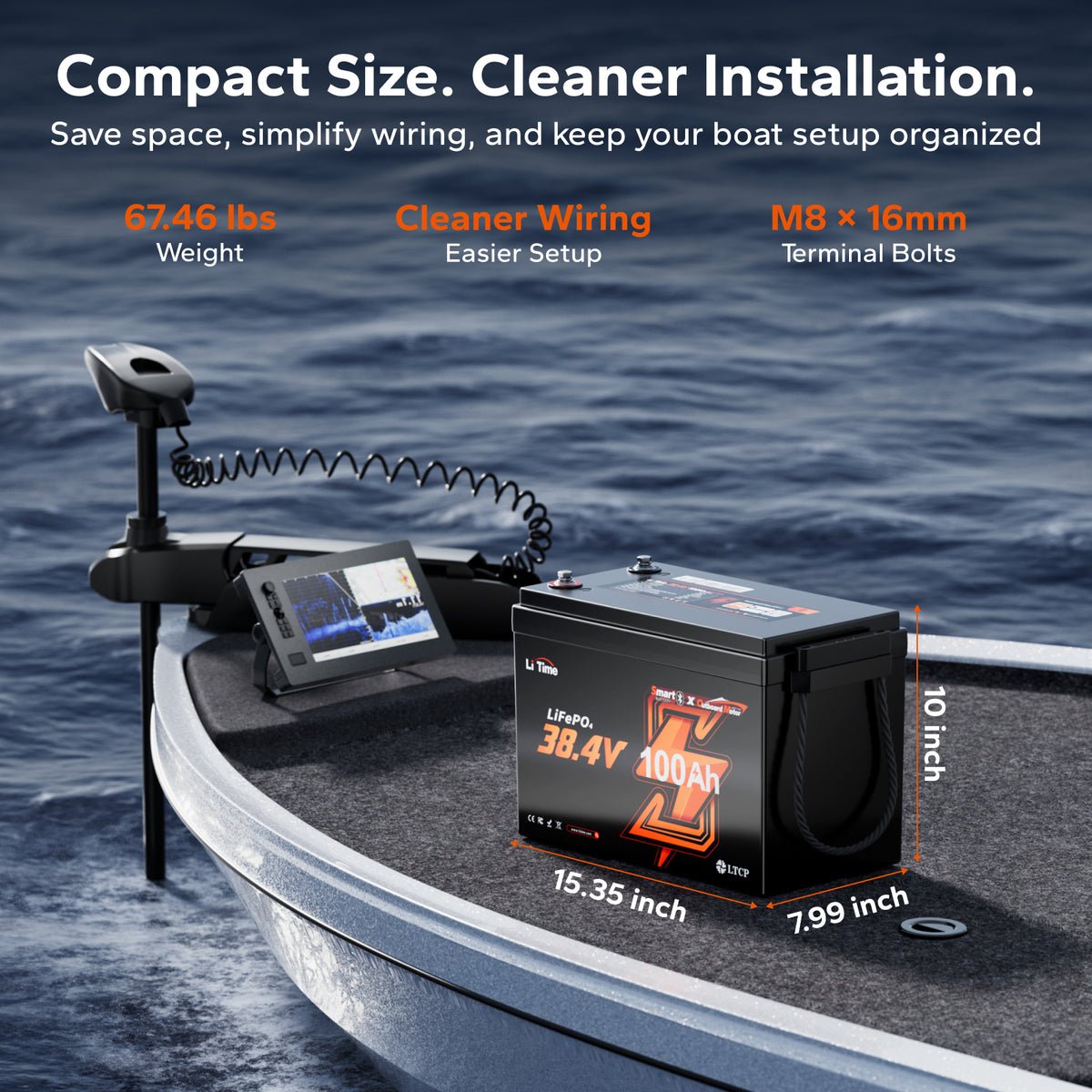

| Mechanical Specification | Dimension | 390*203*254mm/ 15.35*7.99*10inch |
| Weight | Approx.30.6kg/ 67.46lbs | |
| Terminal Type | M8*16mm | |
| Terminal Torque | 12 to 14N·m | |
| Case Material | ABS | |
| IP Rating | IP67 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
|
