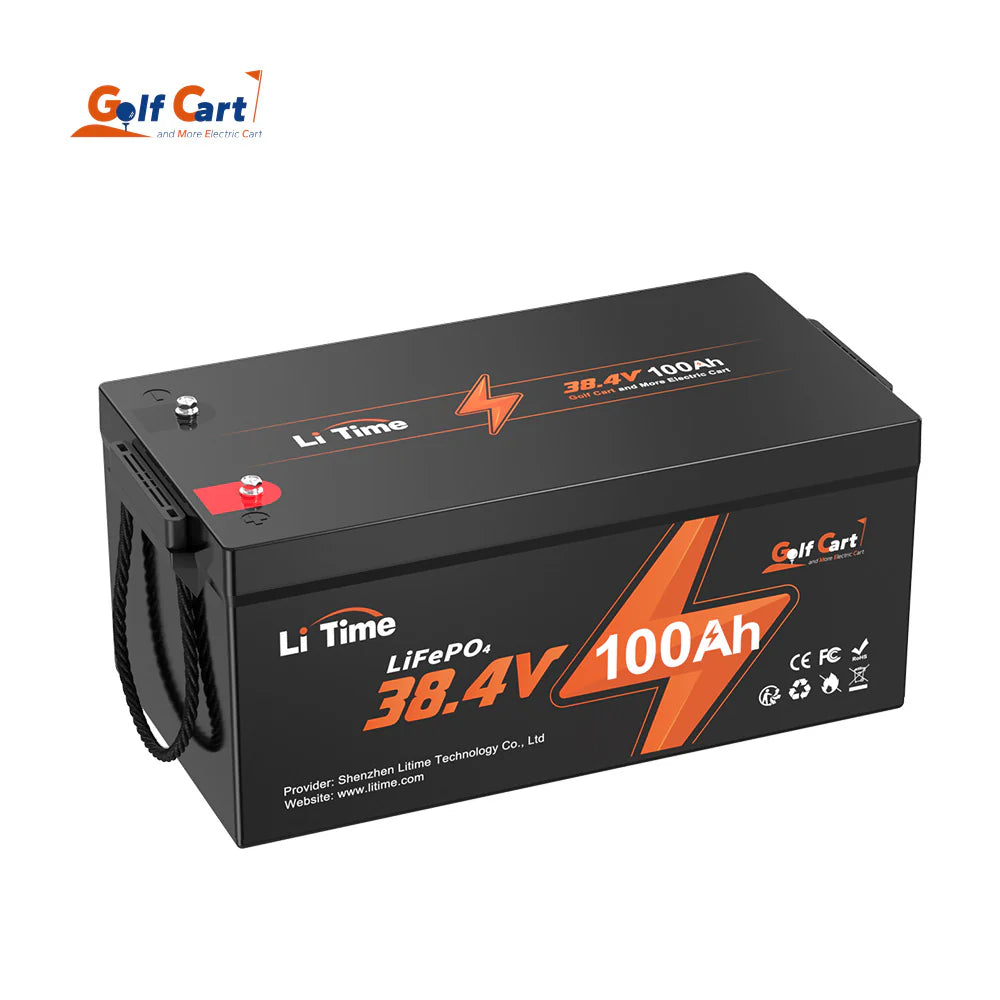

LiTime 36V 100Ah Lithium Golf Cart Batteries for Club Car
- Born for Golf Carts(Club Car, EZGO, ICON & Yamaha).
- EV Grade A+ LiFePO4 Cells: more than 10-year lifespan, 4000+ cycles at 100% DOD, 6000+ cycles at 80% DOD and 15,000+ cycles at 60% DOD.
- 2C Discharging Rate: Max 2C continuous discharging, low internal resistance and 650A (1s) peak current make your cart easily drive through steep slopes.
- Unlock Remarkable Energy: release 3840Wh energy to drive your cart approx 30~35 miles.
- Built to Last: a robust 200A BMS to protect it from over-current, over-charging, over-discharging, short circuits and overheating.
- Ultra-Large Output Power: Max. 5000W for golf cart, Max. 7680W for home energy.
- Upgrade Cart Performance: 85% lighter and 50% smaller than 6* 6V 210Ah lead-acid batteries, it prolongs the life of the cart's components and makes your golf cart more maneuverable, faster and with less wear & tear.
- Ultra-Low Energy Consumption: with 71.68Wh/km, it provides double longer runtime on each charge.
- Group 8D Size: L20.47*W10.59*H8.66 inch, suitable and popular for most scenarios.
- Lower Total Cost of Ownership: It costs at 0.1$/kWh, lowering operating costs by around US$100 annually(no intermediate replacement and regular maintenance).
- Widely Using: fit for golf carts, 36V all-terrain vehicles (ATV), electric tricycles (≤21 mph/35km/h), boathouses, electric outboard motor, home backup power, etc.
- Max 4P: build a 38.4V 400Ah to release 15.36kWh energy.
- Faster 2 Charging Ways: Max. 1C charging & supports LiFePO4 charger/Solar.
- Note: Do NOT use it as a starting battery.
LiTime 36V 100Ah Lithium Golf Cart Batteries for Club Car
Sale price$0.00
Specification Of LiTime 36V 100Ah Lithium Golf Cart Batteries for Club Car
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 38.4V |
| Nominal Capacity | 100Ah | |
| Nominal Energy | 3840Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 3840 | |
| BMS Board | 100 | |
| Max. Batteries in Series and Parallel | 4P2S | |
| System Max. Extended Power | 30720W | |
| System Max. Extended Energy | 30720Wh | |
| Charge Specification | Max. Continuous Charging Current | 100A(1C) |
| Recommended Charging Current | 20A(0.2C) | |
| Recommended Charging Voltage | 43.2±0.6V | |
| Discharge Specification | Max. Continuous Discharging Current | 100A(1C) |
| Peak Discharging Current | 500A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L20.47*W10.55*H8.66 inch /520*268*220mm |
| Weight | Approx. 63.05 lbs/28.6kg | |
| Terminal Type | M8*16 | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | group8D | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
