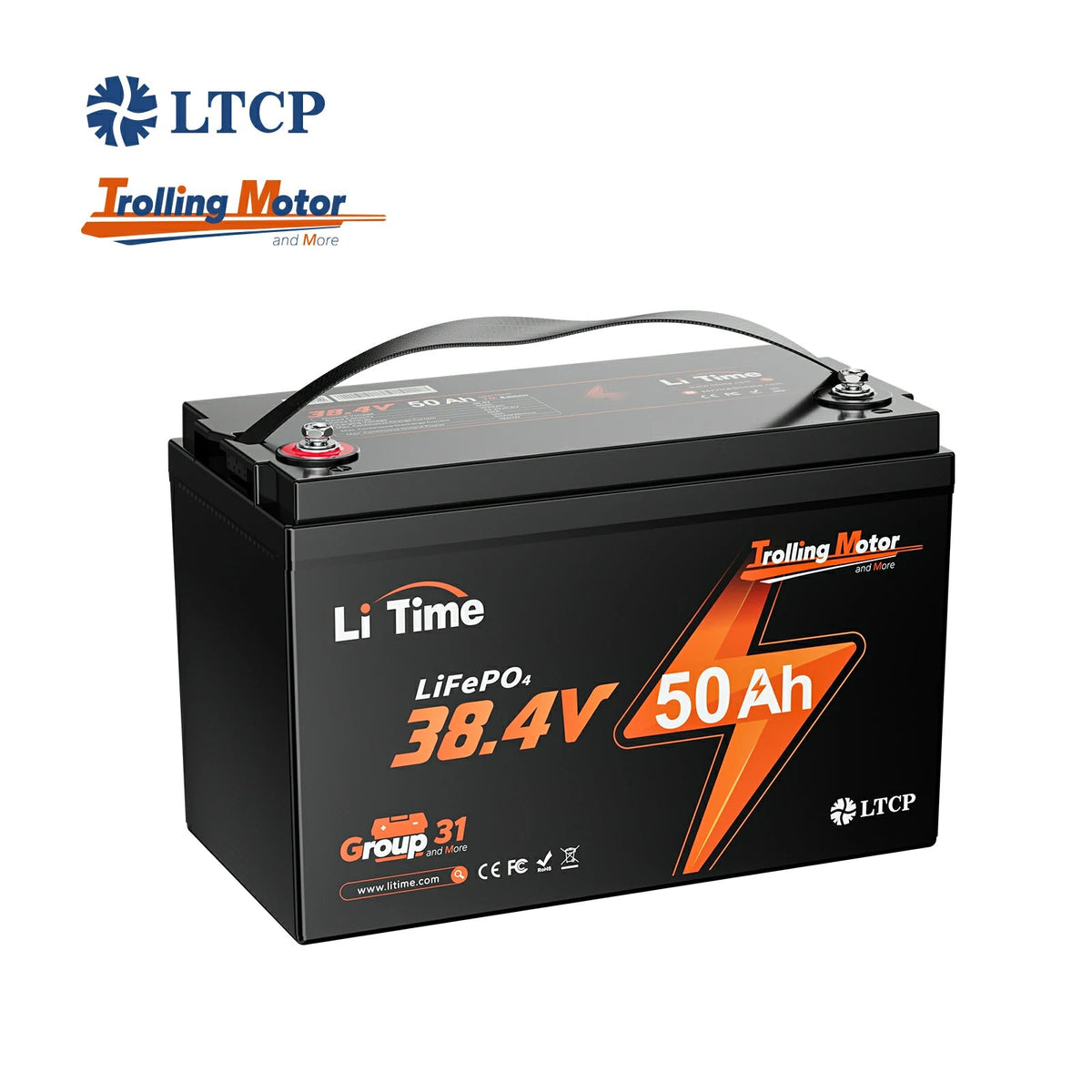

LiTime 36V 50Ah Low-Temperature LiFePO4 Battery for 36V Trolling Motors, Marine & Golf Carts
Low-Temperature 1920Wh LiFePO4 Battery – Reliable Power Solution for 36V Trolling Motors, Marine and Outdoor Applications
- 36V 50Ah Capacity: Provides 1920Wh of energy and up to 1920W continuous output power.
- Low-Temperature Protection: Stops charging at 32°F (0°C) and supports discharging in temperatures as low as -4°F (-20°C).
- High-Power Performance: Supports up to 50A continuous discharge and 250A peak discharge for 5 seconds.
- Durable LiFePO4 Design: Delivers up to 4,000+ cycles and includes a 5-year warranty.
- Flexible Expansion: Supports up to 4 batteries in parallel for a maximum system energy of 7680Wh.
- Safe & Durable Housing: Features an IP65-rated ABS case and multiple protections against over-voltage, over-current, short circuit, overload, and high temperature.

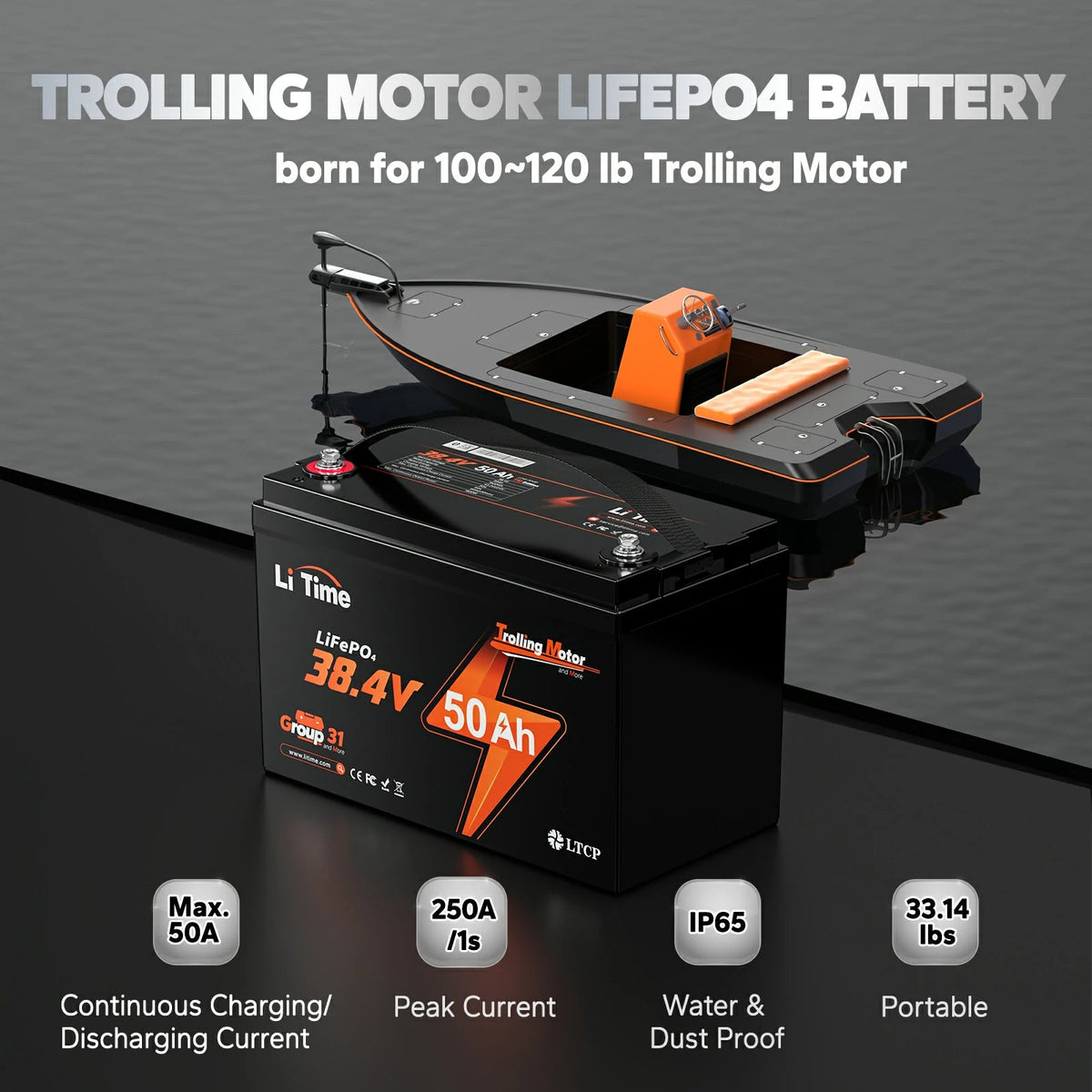

- Wide Applications: Ideal for 36V trolling motors, 100–120 lb thrust marine motors, electric outboard motors, high-power golf carts, and other 36V outdoor power systems.
Specification Of LiTime 36V 50Ah Low-Temperature LiFePO4 Battery for 36V Trolling Motors, Marine & Golf Carts
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 38.4V |
| Nominal Capacity | 50Ah | |
| Nominal Energy | 1920Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Low-Temperature Protection | |
| Max. Continuous Output Power | 1920W | |
| BMS Board | 50A | |
| Max. Batteries in Series and Parallel | 4P1S | |
| System Max. Extended Power | 7680W | |
| System Max. Extended Energy | 7680Wh | |
| Charge Specification | Max. Continuous Charging Current | 50A(1C) |
| Recommended Charging Current | 10A(0.2C) | |
| Recommended Charging Voltage | 43.2±0.6V | |
| Discharge Specification | Max. Continuous Discharging Current | 50A(1C) |
| Peak Discharging Current | 250A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |

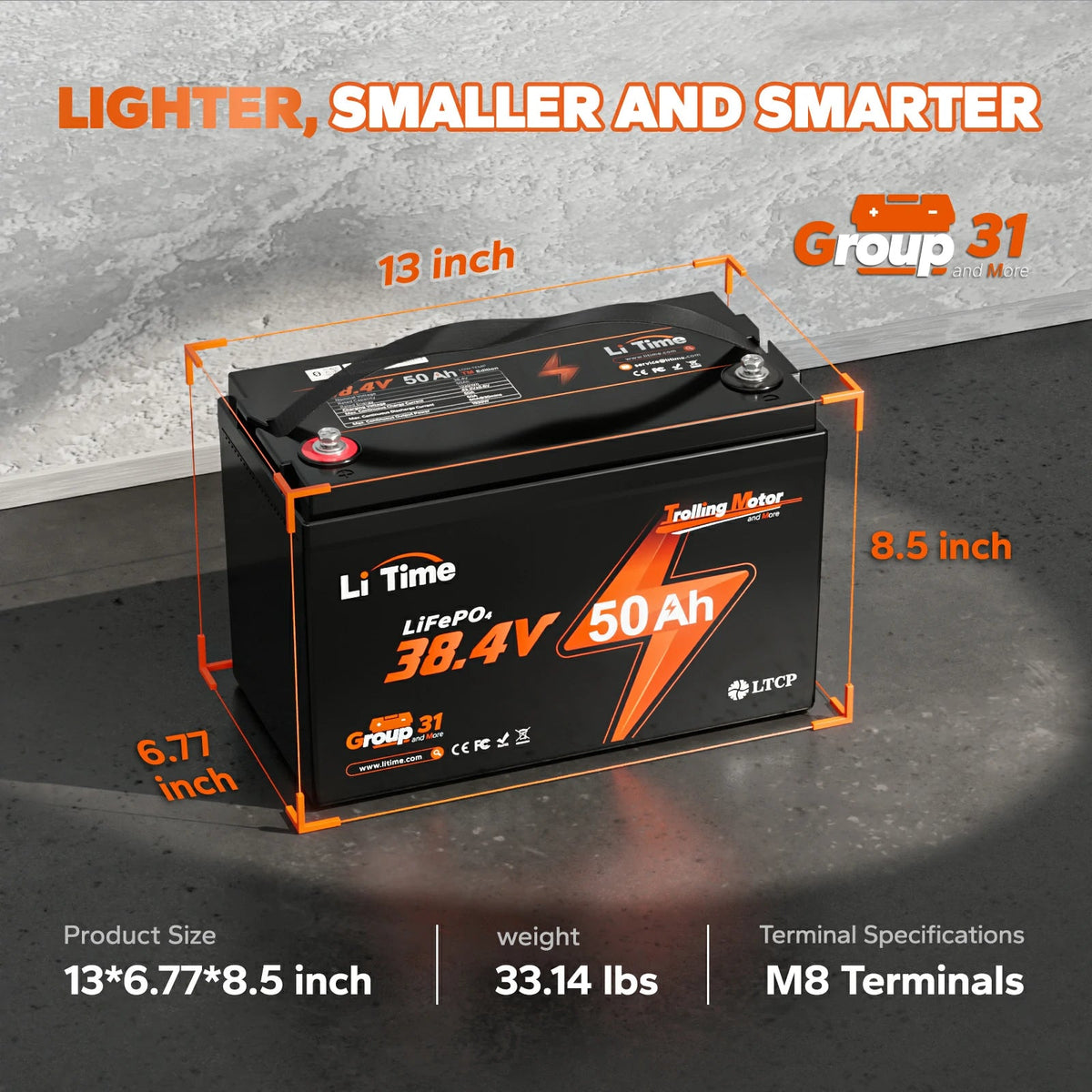

| Mechanical Specification | Dimension | 330*172*216mm/13*6.77*8.5inch |
| Weight | 15.03kg/33.14lbs | |
| Terminal Type | M8*16mm | |
| Terminal Torque | 12 to 14N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |

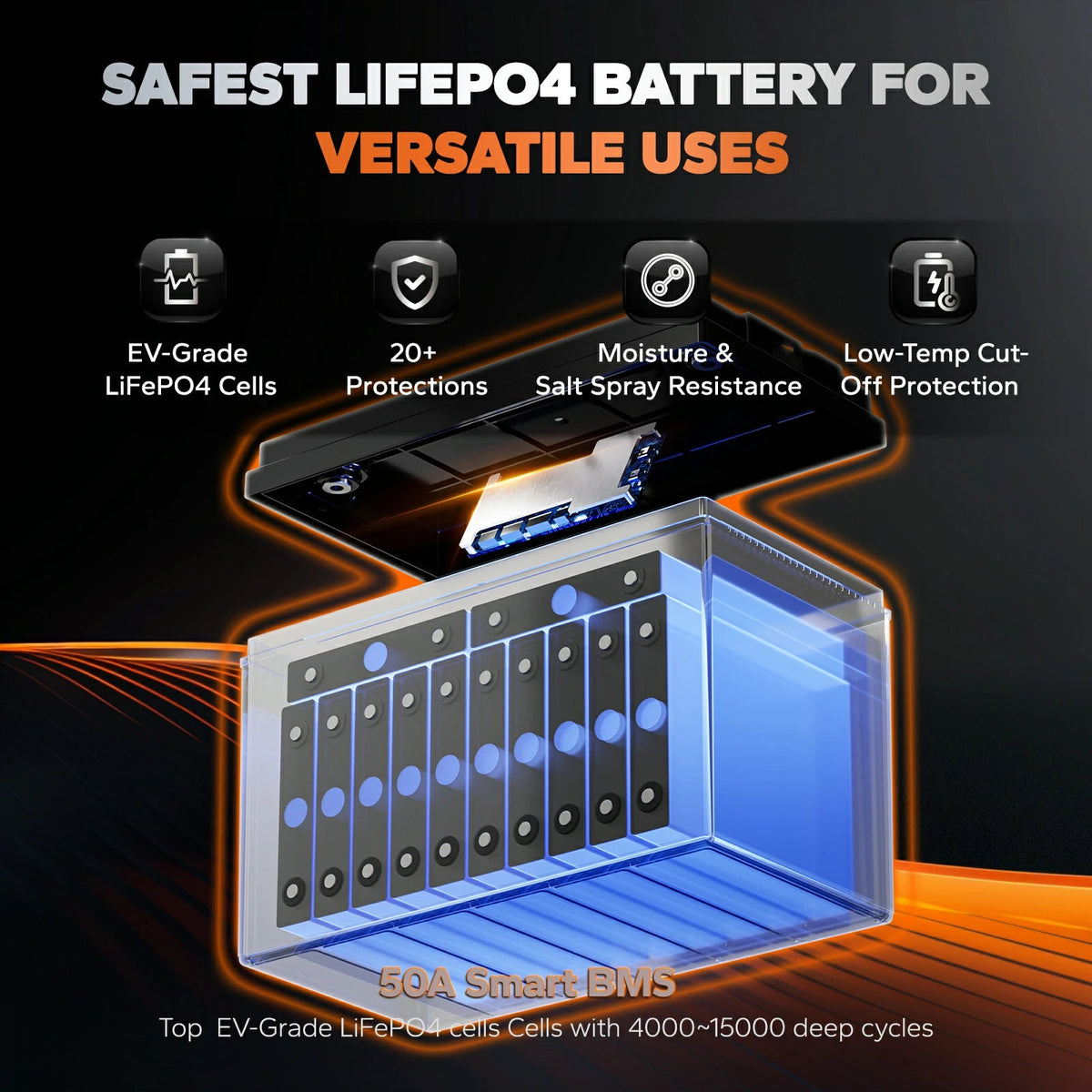

| Cell Type-chemistry | LiFePO4 Prismatic | |
| BCI | group31 | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
|
