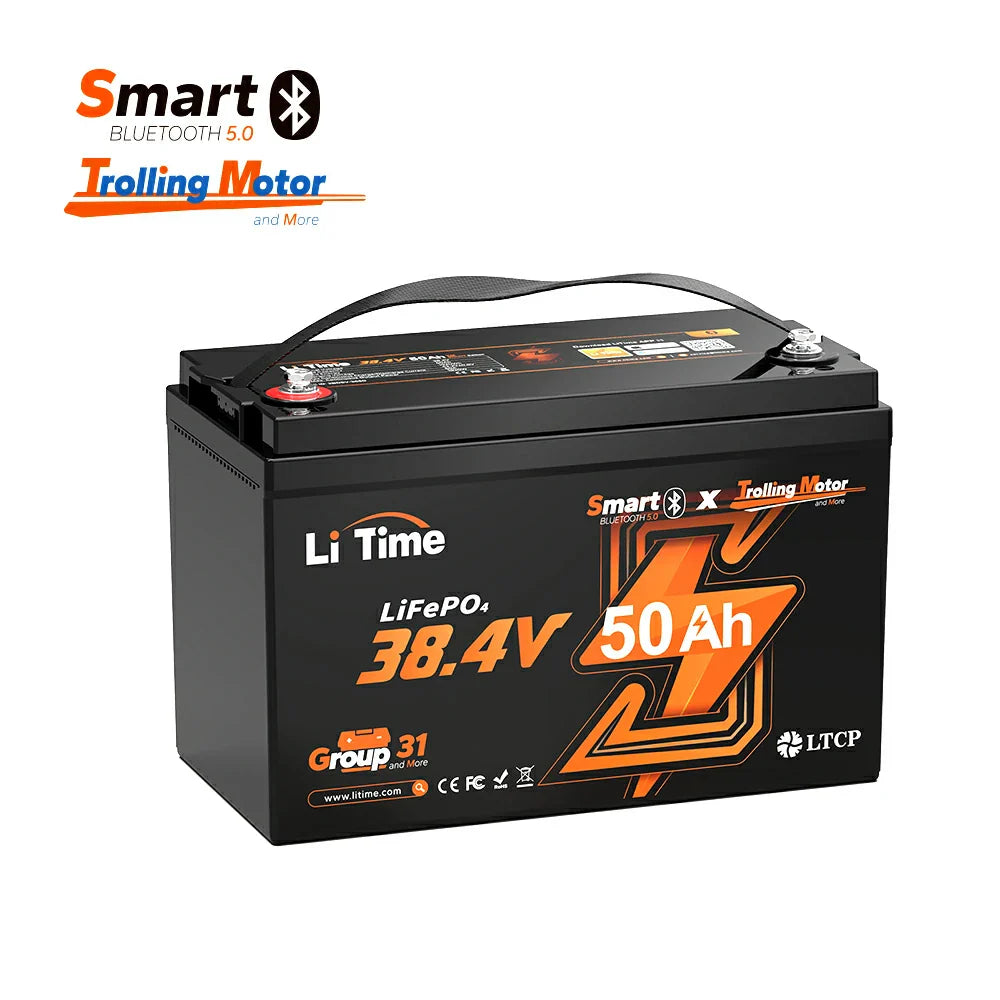

LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
- Innovative Design for Trolling Motors: As a proud member of both the ABYC (American Boat & Yacht Council) and ASA (American Sportfishing Association), LiTime surpasses industry standards with a relentless commitment to innovation. Crafted with premium Automotive-Grade cells, this battery boasts exceptional quality and reliability. With minimal self-discharge and capacity loss, this LiFePO4 battery delivers over 4000+ cycles，traditional lead-acid batteries can be recycled for 200-500 times, and its service life of up to 10 years is 3 times that of lead-acid batteries.
- Bluetooth 5.0 Integration: Monitor Your Battery Status with Ease with Bluetooth 5.0, experience the ultimate convenience with the LiTime 36V 50Ah trolling motor battery, equipped with Bluetooth 5.0. This advanced feature offers:auto-connection, smart discharging control, real-time battery monitoring, battery system checking, turn off battery. 36V 50Ah Battery is suitable for energy storage and not for starting. Suitable for trolling motors up to 120lb thrust.
- Unparalleled Energy Density: The LiTime 36V 50Ah Trolling Motor Battery stands out with its remarkable energy density, outperforming similar LiFePO4 batteries on the market. With an energy density of 57.93 Wh/lb (calculated as 1920Wh/33.14 lb = 57.93Wh/lb), it surpasses the 52.26 Wh/lb of a typical 12V 100Ah TM battery, marking a 10.85% increase in energy density. Ideal for Marine, Trolling Motors, Boats, Home Energy Storage, Solar Power Backup, Off-Grid Solar Systems, and more.
- Safety Protection and Expansion up to 7.68kWh: Its integrated 50A BMS safeguards against harsh environments like high humidity and salt spray, while offering comprehensive protections against low/high temperatures, short circuit, over-voltage, under-voltage, and over-current. The maximum discharge current is 50A and support 60A for continuous discharge for 30 minutes. LiTime 36V 50Ah battery supports up to 4 batteries in parallel to expand capacity, forming a 36V 200Ah battery system, which can store up to 7.68 kWh of energy and provide the maximum load power of 7.68 kW.
- Note: Do NOT use it as a starting battery.
- Optional features: Bluetooth, Low-temperature cut-off protection, Self-heating.
LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
Sale price$0.00
Specification Of LiTime 36V 50Ah Marine Trolling Motor Lithium Bluetooth Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 38.4V |
| Nominal Capacity | 50Ah | |
| Nominal Energy | 1920Wh | |
| Internal Resistance | ≤40mΩ | |
| Function | Bluetooth | |
| Max. Continuous Output Power | 1920W | |
| BMS Board | 50A | |
| Max. Batteries in Series and Parallel | 4P1S | |
| System Max. Extended Power | 7680W | |
| System Max. Extended Energy | 7680Wh | |
| Charge Specification | Max. Continuous Charging Current | 50A(1C) |
| Recommended Charging Current | 10A(0.2C) | |
| Recommended Charging Voltage | 43.2±0.6V | |
| Discharge Specification | Max. Continuous Discharging Current | 50A(1C) |
| Peak Discharging Current | 250A(5C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | L13*W6.77*H8.5 inch /330*172*216mm |
| Weight | Approx. 33.14 lbs/15.03kg | |
| Terminal Type | M8*16 | |
| Terminal Torque | 13±1 N·m | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| BCI | group31 | |
| Safety Specification | Protection | Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit |
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
