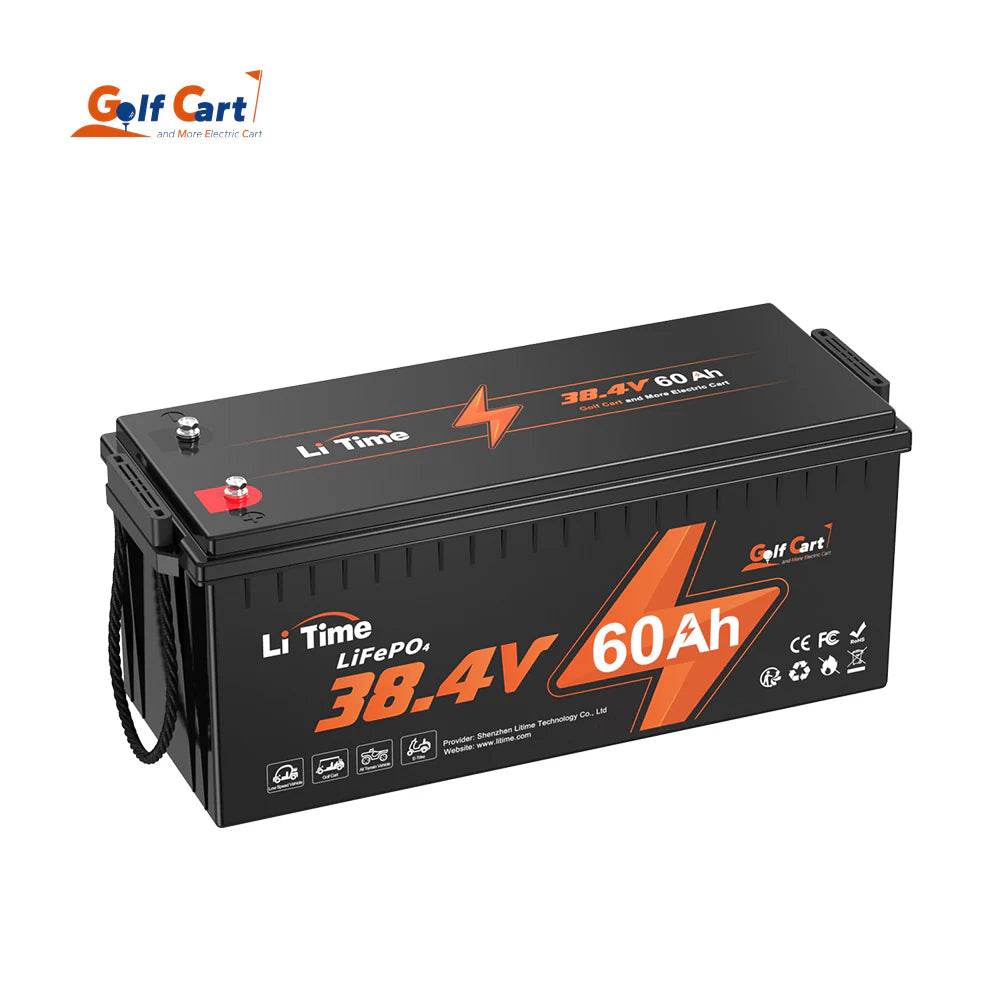

LiTime 36V 60Ah Lithium Golf Cart Battery
- Born for golf carts, electric shuttle buses, street-legal carts, and electric trike scooters.
- 2C Rate Discharging Current: Max. 2C rate discharging current, suitable for all low-speed power vehicles (lower than 21MI/35KM/h).
- 2304Wh Energy: runs 18~25 miles when fully charged, allowing you to enjoy double the runtime of the AGM battery.
- Lightweight for Your Golf Cart: weighs 1/4 as much as a set of lead acid golf cart batteries, making your golf cart more maneuverable, faster and with less wear & tear.
- EV Grade A cells & Longer Lifespan: adopting 2C Rate EV Grade-A cells ensure their durability, 4000+ cycles @100%DOD and 10+ years of service life.
- Built-in 120A BMS: 100% protection against overcharging, over-discharging, over-current, overheating, and short circuits.
- Large Output Power: Max 3000W for golf cart, Max. 4608W for Energy Storage.
- Easy Installation and Use: Its perfect size makes it suitable for most golf carts, and its simple wiring requirements and operation make it convenient to use and install.
- Widely Used Application: born for golf carts, also suitable for electric vehicles, recreational vehicles, boathouses, trolling motors, home backup power supply, etc.
- Max 4P: build a 38.4V 240Ah to release 9.216kWh energy.
- Flexible 3 Recharging Ways: LiFePO4 charger/Solar/Generator.
- Note: Do NOT use it as a starting battery.
Unlock B2B Wholesale Pricing
Verified enterprise accounts enjoy wholesale tiered pricing and priority logistics.
Sign In to Unlock B2B PricingDon't have an enterprise account?Register for B2B Wholesale →
- Tax Exemption Capable
- Pallet Freight Available
- 5-Year Official Warranty
LiTime 36V 60Ah Lithium Golf Cart Battery
Sale price€368,95
Specification Of LiTime 36V 60Ah Lithium Golf Cart Battery
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Basic Specification | Nominal Voltage | 38.4V |
| Nominal Capacity | 60Ah | |
| Nominal Energy | 2304Wh | |
| Internal Resistance | ≤40mΩ | |
| Max. Continuous Output Power | 4608W | |
| BMS Board | 120A | |
| Max. Batteries in Series and Parallel | 4P1S | |
| System Max. Extended Power | 18432W | |
| System Max. Extended Energy | 9216Wh | |
| Charge Specification | Max. Continuous Charging Current | 60A(1C) |
| Recommended Charging Current | 12A(0.2C) | |
| Recommended Charging Voltage | 43.2±0.6V | |
| Discharge Specification | Max. Continuous Discharging Current | 120A(2C) |
| Peak Discharging Current | 550A(9.167C) | |
| Environment Specification | Storage Temperature Range | -10℃ to 50 ℃ / 14℉ to 122 ℉ |
| Recommended Storage Temperature | 10℃ to 35 ℃ / 50℉ to 95 ℉ | |
| Charging Temperature Range | 0℃ to 50 ℃ / 32℉ to 122 ℉ | |
| Discharging Temperature Range | -20℃ to 60 ℃ / -4℉ to 140 ℉ | |
| Mechanical Specification | Dimension | 532*207*216 mm/20.95*8.15*8.5 inch |
| Weight | Approx. 43.56lbs/19.76 kg | |
| Terminal Type | M8*16 mm |
|
| Terminal Torque | 106.2 to 123.9 lbs | |
| Case Material | ABS | |
| IP Rating | IP65 | |
| Cell Type-chemistry | LiFePO4 | |
| Safety Specification | Certifications | FCC, CE, RoHS, UN38.3 |
| Protection | Over-temperature Over-discharge Over-current Over-voltage Short-circuit |
|
Product Datasheet Download
Download the product specification sheet for technical review, project evaluation, or purchasing reference.
Download Datasheet
