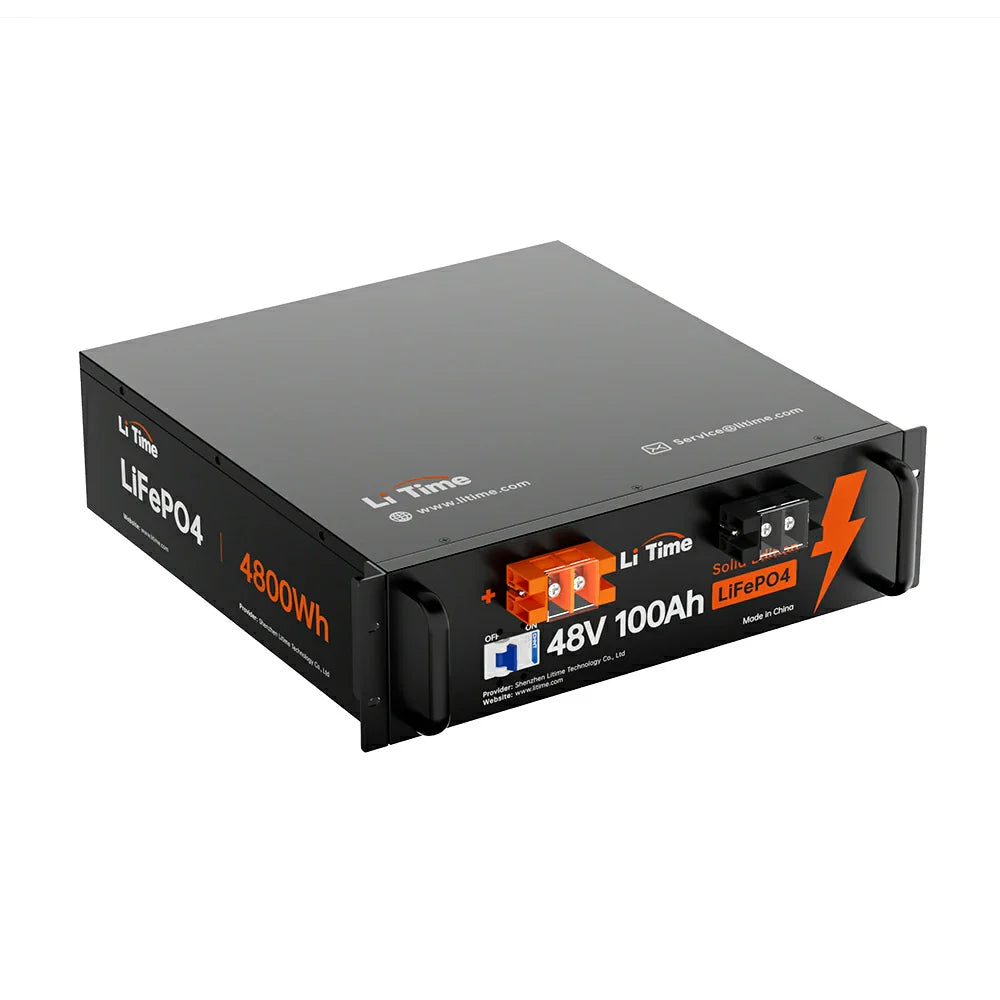

LiTime 48V 100Ah Server Rack LiFePO4 Solar Battery Bank


  • Perfect Replacement for 4* 12V 100Ah Lead-Acid Batteries in series.
  • EV Grade LiFePO4 Cells provides green energy.
  • 4000+ Cycles at 100%DOD.
  • LiTime's 100A BMS provide 100% protections.
  • 4800Wh Energy, 4800W Continuous Output Power.
  • Max 19.2kWh Energy (4P), power your home for 5-10 days off-grid.
  • Metal case for better performance in heat dissipation and wear resistance.
  • Suitable for Off-Grid/solar/home storage.

Specification Of LiTime 48V 100Ah Server Rack LiFePO4 Solar Battery Bank

CHARACTERISTICS PARAMETERS
Basic Specification Nominal Voltage 48V
Nominal Capacity 100Ah
Nominal Energy 4800Wh
Internal Resistance ≤40mΩ
Max. Continuous Output Power 4800W
BMS Board 100A
Max. Batteries in Series and Parallel 4P1S
System Max. Extended Power 19200
System Max. Extended Energy 19200Wh
Charge Specification Max. Continuous Charging Current 100A(1C)
Recommended Charging Current 20A(0.2C)
Recommended Charging Voltage 54±0.75V
Discharge Specification Max. Continuous Discharging Current 100A(1C)
Peak Discharging Current 400A(4C)
Environment Specification Storage Temperature Range -10℃ to 50 ℃ / 14℉ to 122 ℉
Recommended Storage Temperature 10℃ to 35 ℃ / 50℉ to 95 ℉
Charging Temperature Range 0℃ to 50 ℃ / 32℉ to 122 ℉
Discharging Temperature Range -20℃ to 60 ℃ / -4℉ to 140 ℉
Mechanical Specification Dimension L19.61*W17.32*H5.24 inch /498*440*133mm
Weight Approx. 92.59 lbs/42kg
Terminal Type M8*14
Terminal Torque 13±1 N·m
Case Material SPCC
IP Rating IP20
Cell Type-chemistry LiFePO4 Prismatic
Safety Specification Protection Over-temperature
Low-temperature cut-off
Over-discharge
Over-current
Over-voltage
Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.



Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.



Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

FAQ

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.
