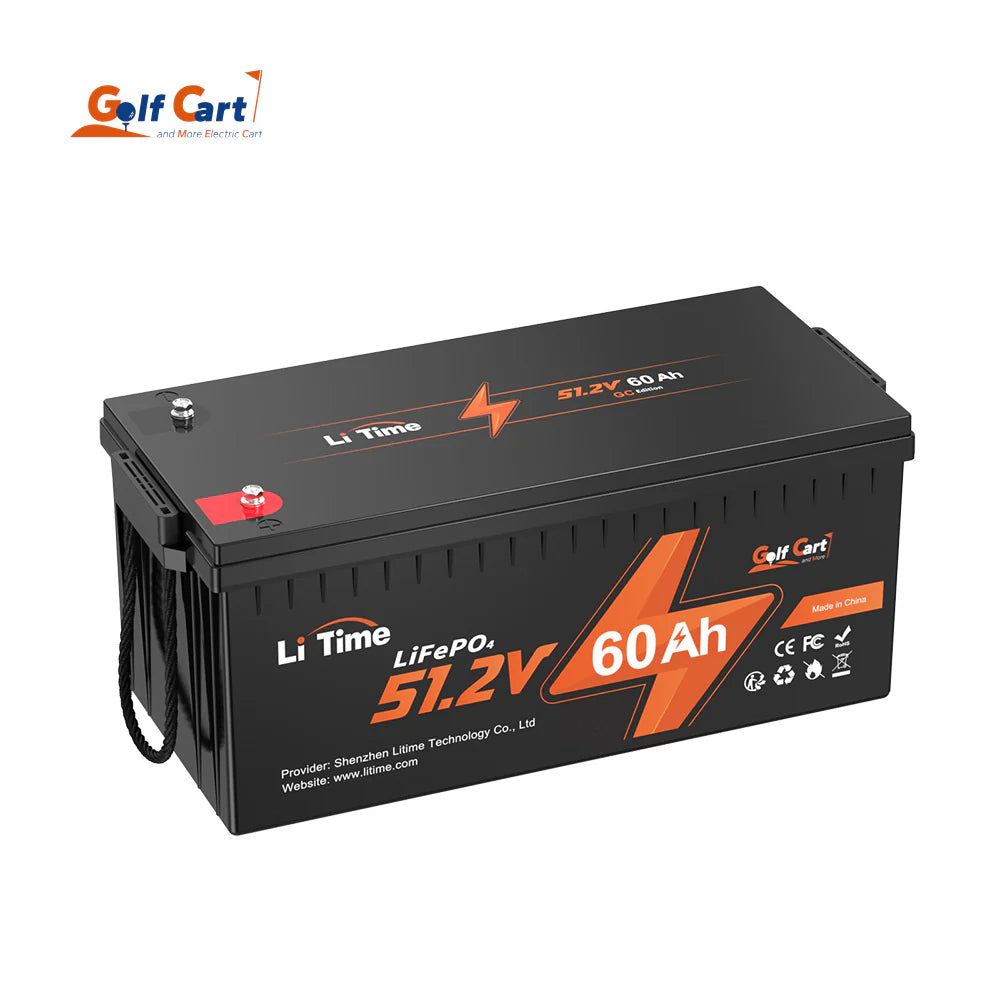

LiTime 48V 60Ah Lithium Golf Cart Battery

Born for Golf Carts for Its Excellent Work Performance.
Top Quality: adopts top EV grade-A LiFePO4 cells to provide superior stress resistance and heat dissipation, serving you 10+ years and 4000+ cycles@100%DOD.
2C Continuous Discharging: delivers 120A continuous current and 350A (1s) peak discharge current to withstand larger surges and empower carts through any slope.
120A BMS: to protect it from over-current, over-charging, over-discharging, short circuits, and overheating, ensuring its peak performance.
3072Wh of Energy: with a lower energy consumption of 71.68Wh/km, one full battery can provide 3072Wh energy to enjoy approx 23~28 miles of longer driving range.
Level Up Your Golf Cart: with 56Wh/lbs energy density, lighter weight reduces wear on tires, shocks, and brakes and makes your golf cart drive further, smoother, faster, and more maneuverable.
Superior to Lead-Acid: 77% lighter and 52% smaller than 4* 6V 210Ah lead-acid batteries, and it has no wiring connection and voltage-balance issues.
Versatile Using Scenarios: suitable for golf carts (Club Car/EZGO/ICON/Yamaha), street-legal carts(≤21Ml/35Km/h)/boathouses/home storage.
Max. 4P: to build a 51.2V 240Ah battery system to release 12.28kWh energy.
Faster Charging Ways: Max. 1C charging & supports LiFePO4 charger/Solar.
Optional features: Bluetooth, Communication(CAN/RS485).

Specification Of LiTime 48V 60Ah Lithium Golf Cart Battery

CHARACTERISTICS	PARAMETERS
Basic Specification	Nominal Voltage	51.2V
	Nominal Capacity	60Ah
	Nominal Energy	3072Wh
	Internal Resistance	≤40mΩ
	Max. Continuous Output Power	6144W
	BMS Board	≤40mΩ
	Max. Batteries in Series and Parallel	4P1S
	System Max. Extended Power	24576W
	System Max. Extended Energy	12288Wh
Charge Specification	Max. Continuous Charging Current	60A(1C)
	Recommended Charging Current	12A(0.2C)
	Recommended Charging Voltage	57.6±0.8V
Discharge Specification	Max. Continuous Discharging Current	120A(2C)
Discharge Specification	Peak Discharging Current	350A(5.83C)
Environment Specification	Storage Temperature Range	10℃ to 35 ℃ / 50℉ to 95 ℉
	Recommended Storage Temperature	-10℃ to 50 ℃ / 14℉ to 122 ℉
	Charging Temperature Range	0℃ to 50 ℃ / 32℉ to 122 ℉
	Discharging Temperature Range	-20℃ to 60 ℃ / -4℉ to 140 ℉
Mechanical Specification	Dimension	L20.55W9.33H8.58 inch /522237218mm
	Weight	Approx. 56.97 lbs/25.84kg
	Terminal Type	M8*16 mm
	Terminal Torque	13±1 N·m
	Case Material	ABS
	IP Rating	IP65
	Cell Type-chemistry	LiFePO4
Safety Specification	Protection	Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.

Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.

Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

FAQ

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.

Product Datasheet Download

Download the product specification sheet for technical review, project evaluation, or purchasing reference.

Download Datasheet
