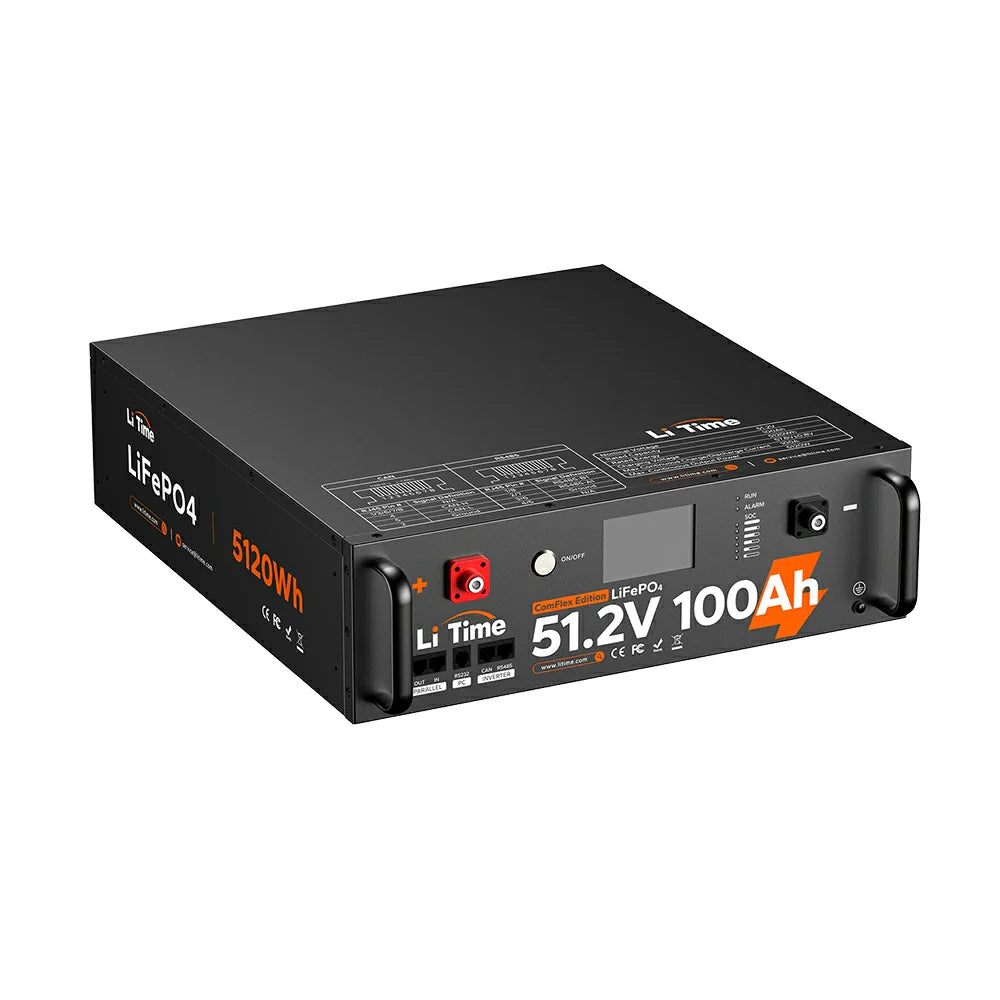

LiTime 48V(51.2V) 100Ah ComFlex Edition Server Rack LiFePO4 Battery with CAN/RS485 Communication

3U Chassis, Easy to Install: Directly plug in a 3U server rack cabinet or use LiTime customized stacking component.
3.5 inch Smart Touch-Screen & LED Indicators: view battery data & adjust settings. LED Lights can indicate the battery SOC, alarms and operating status.
SPCC Housing: make the battery a sturdy and durable casing and better heat dissipation.
Superior EV-Grade LiFePO4 Cells: lighter, safer, and more efficient EV-grade LiFePO4 cells, 4000+ cycles @100%DOD and 10+ years of battery life.
5.12kWh of High Energy & 5.12kW Power Load: one is equivalent to 4*12V100Ah lithium batteries.
Max 16 in Parallel: achieve 81.92kWh expansion energy.
Strong Communications: supports CAN bus/RS485, compatible with most solar inverter chargers on the market, such as the LiTime, Victron, SMA, DEYE, GoodWe and Growatt .
LiTime's Self-Developed Smart BMS: 20+ protections (including over-charge, over-discharge, over-current, over-temp, short-circuit protections); overload protection with auto-recovery (30s); low-temperature cut-off protection; better resistance of salt spray.
Pre-Charge Function: BMS comes with a pre-charge function and adapts to all Inverters on the market.
Larger Flow Capacity: Max Continuous 100A Charge/Discharge Current (peak current 500A/1s).
Completely Replace Lead-Acid: 80% lighter and 70% smaller than 8* 12V 100Ah lead-acid batteries but release the same energy(at 1C), saving cost by lowering maintenance & replacement costs.
3 Fast Charging Ways: Max 1C fast charging, Support LiFePO4 charger/solar panels/generator.
Professional Testing & Certi.:FCC, CE, RoHS, UN38.3 Certified.

Specification Of LiTime 48V(51.2V) 100Ah ComFlex Edition Server Rack LiFePO4 Battery with CAN/RS485 Communication

CHARACTERISTICS	PARAMETERS
Basic Specification	Nominal Voltage	51.2V
	Nominal Capacity	100Ah
	Nominal Energy	5120Wh
	Internal Resistance	≤40mΩ
	Function	ComFlex
	Max. Continuous Output Power	5120W
	BMS Board	100A
	Max. Batteries in Series and Parallel	16P1S
	System Max. Extended Power	81920W
	System Max. Extended Energy	81920Wh
Charge Specification	Max. Continuous Charging Current	100A(1C)
	Recommended Charging Current	20A(0.2C)
	Recommended Charging Voltage	57.6±0.8V
Discharge Specification	Max. Continuous Discharging Current	100A(1C)
Discharge Specification	Peak Discharging Current	110A(1.1C)
Environment Specification	Storage Temperature Range	-10℃ to 50 ℃ / 14℉ to 122 ℉
	Recommended Storage Temperature	10℃ to 35 ℃ / 50℉ to 95 ℉
	Charging Temperature Range	0℃ to 50 ℃ / 32℉ to 122 ℉
	Discharging Temperature Range	-20℃ to 60 ℃ / -4℉ to 140 ℉
Mechanical Specification	Dimension	L17.4W20.39H5.24 inch /442518133mm
	Weight	Approx. 98.33 lbs/ 44.6kg
	Terminal Type	M8*14 mm
	Terminal Torque	13±1 N·m
	Case Material	SPCC
	Cell Type-chemistry	LiFePO4
Safety Specification	Protection	Over-temperature Low-temperature cut-off Over-discharge Over-current Over-voltage Short-circuit

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with reliable LiFePO4 battery products, delivery support, technical documentation, and application-focused energy solutions.

Core Advantages

R&D & Production: Supported by a 21,527 ft² R&D laboratory, over 50 high-end testing devices, and annual production capacity of up to 1.8 million battery units.

Power System Support: LiTime can provide compatible chargers, inverters, and related power system components for different voltage platforms and application scenarios.

Overseas Delivery: Selected in-stock models can be shipped from overseas warehouses, with local delivery typically available within 2–3 days depending on availability and destination.

Documents & Compliance: Specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical files can be provided for evaluation and shipment.

Global Insurance Protection: Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026.

Packing & Support

Batteries are packed with reinforced cartons and protective materials. Bulk shipments can be arranged with pallet packaging when required. LiTime can also assist with battery selection, voltage platform recommendations, compatible chargers and inverters, technical documentation, and after-sales support.

FAQ

1. Who Does LiTime Solutions Serve?

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, EPC contractors, and project-based customers. Whether you require wholesale supply or batteries for commercial applications, our team can recommend suitable products based on your requirements.

2. What Applications Are LiTime Batteries Suitable for?

LiTime batteries are widely used in security and surveillance systems, truck parking air conditioning systems, smart agriculture, oil & gas monitoring, intelligent robotics, low-speed vehicles, backup power, and other commercial energy applications.

3. How Can I Choose the Right Battery?

Simply provide your application, required voltage, capacity, runtime, installation space, operating environment, and destination market. Our team can recommend a suitable battery option based on your requirements.

4. Do You Support Distributors and Wholesale Customers?

Yes. LiTime Solutions supports wholesale purchasing, distributor cooperation, and long-term business partnerships while also providing technical support for commercial and project-based applications.

5. Can LiTime Help Recommend a Suitable Battery Solution?

Yes. LiTime can assist with battery selection based on your application, voltage platform, capacity requirement, runtime target, installation space, operating environment, and delivery requirements.

6. Can LiTime Provide Chargers and Inverters?

Yes. LiTime offers compatible chargers, inverters, and related power system components for selected applications and voltage platforms.

7. What Technical Documents Can You Provide?

Depending on the product model, LiTime can provide specification sheets, MSDS, UN38.3, CE, FCC, RoHS, shipping documents, and other technical documents required for evaluation or shipment.

8. Do You Support Overseas Warehouse Delivery?

Yes. LiTime has 30+ overseas warehouses worldwide. Selected in-stock models may support local delivery in about 2–3 days in regions with warehouse coverage.

9. How Are the Batteries Packed?

LiTime batteries are packed with reinforced export cartons and protective materials. Pallet packaging can also be arranged for bulk shipments when required.

10. What Shipping Methods Are Available?

Shipping can be arranged by overseas warehouse delivery where available, sea freight, air freight, or express service according to the product model, order quantity, and destination.

11. Are LiTime Products Covered by Insurance?

Yes. Protection Upgrade: LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, providing additional confidence and protection for global B2B customers.

12. What Information Should I Provide When Requesting a Quotation?

Please provide your company name, application, required quantity, destination country or region, voltage and capacity requirements, expected runtime, and any certification or delivery requirements.

13. What After-Sales Support Does LiTime Provide?

LiTime provides technical consultation, product documentation, warranty support, and after-sales assistance throughout the purchasing process. Our team can support communication from product selection through delivery and long-term product support.

Product Datasheet Download

Download the product specification sheet for technical review, project evaluation, or purchasing reference.

Download Datasheet
