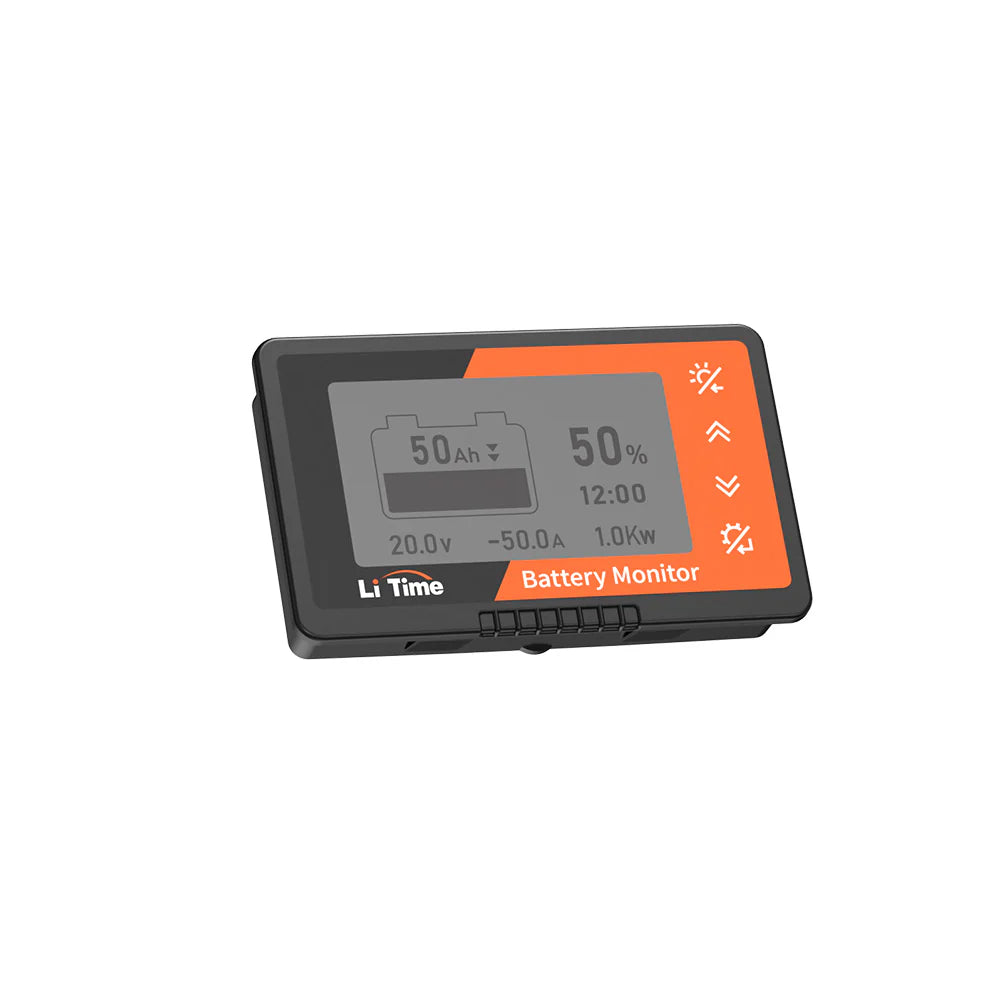

LiTime 500A Battery Monitor With Shunt
【For 8-120V Battery】Suitable for 8-120V, 0-9999AH battery bank. Auto-recognition for various battery types, including Li-ion, LiFePO4, Gel, AGM, and more.

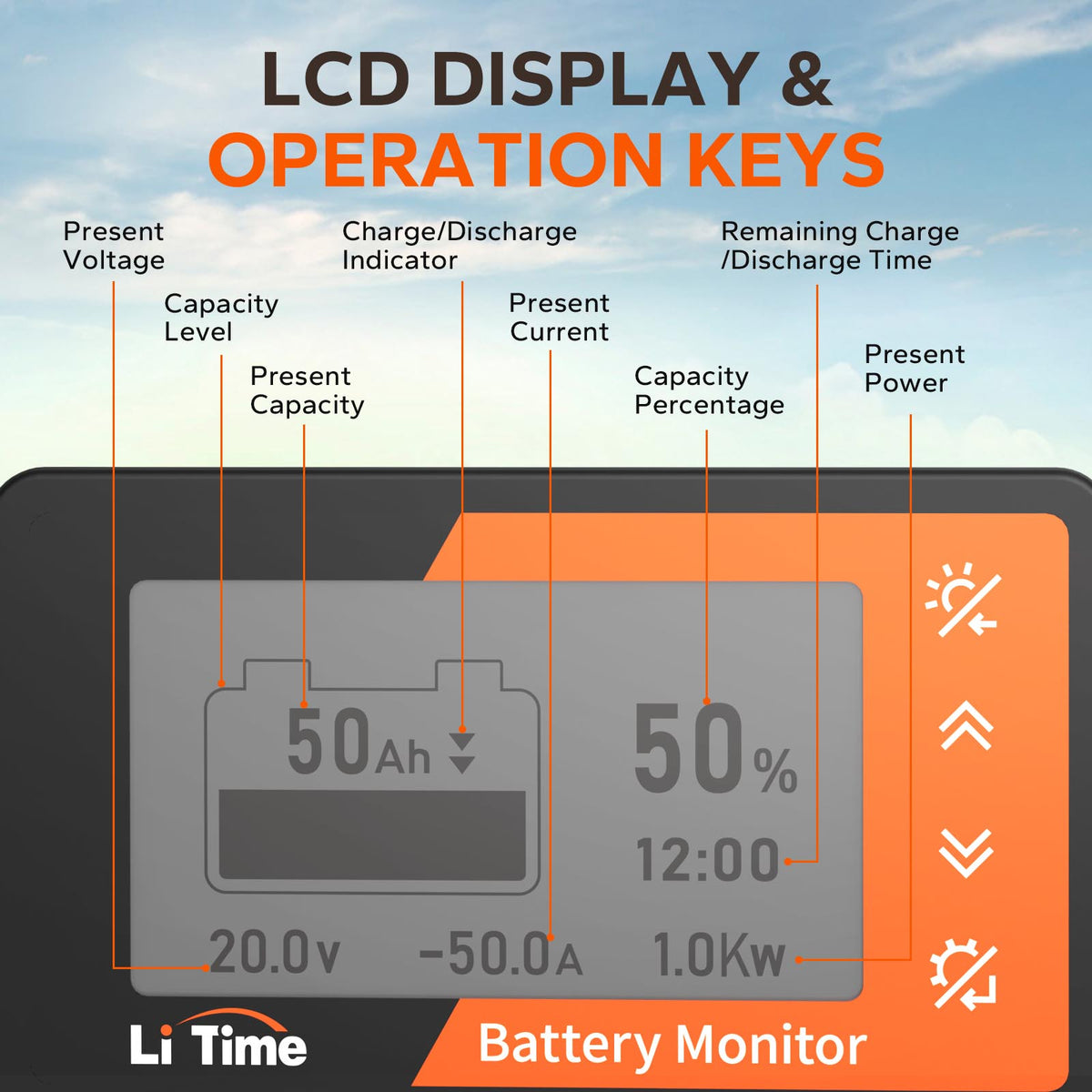

【Precise Data】The display includes battery voltage/current/power/capacity, remaining charge/discharge time, charge/discharge indicator, and capacity percent. It has a backlight for easy use at night.

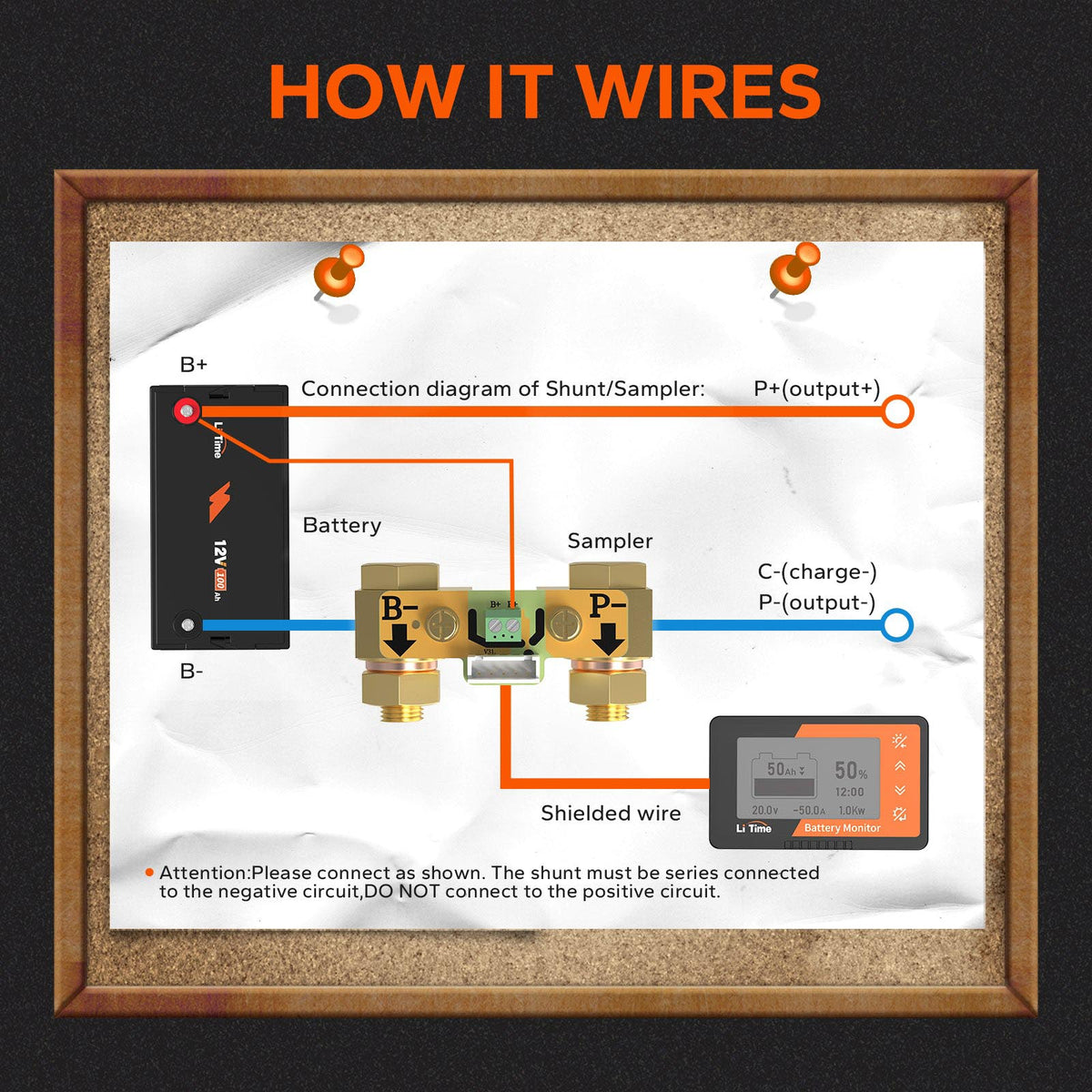

【Easy to Install】The shunt can be stably placed or mounted on a flat surface by the shunt holder. The monitor display is simple to install as it's fixed by tabs. (The manual provides very detailed installation instructions)
【Buzzer Alarm】If the voltage or capacity falls below the set value, the LCD display will flash and the buzzer will sound an alarm every 10 seconds.

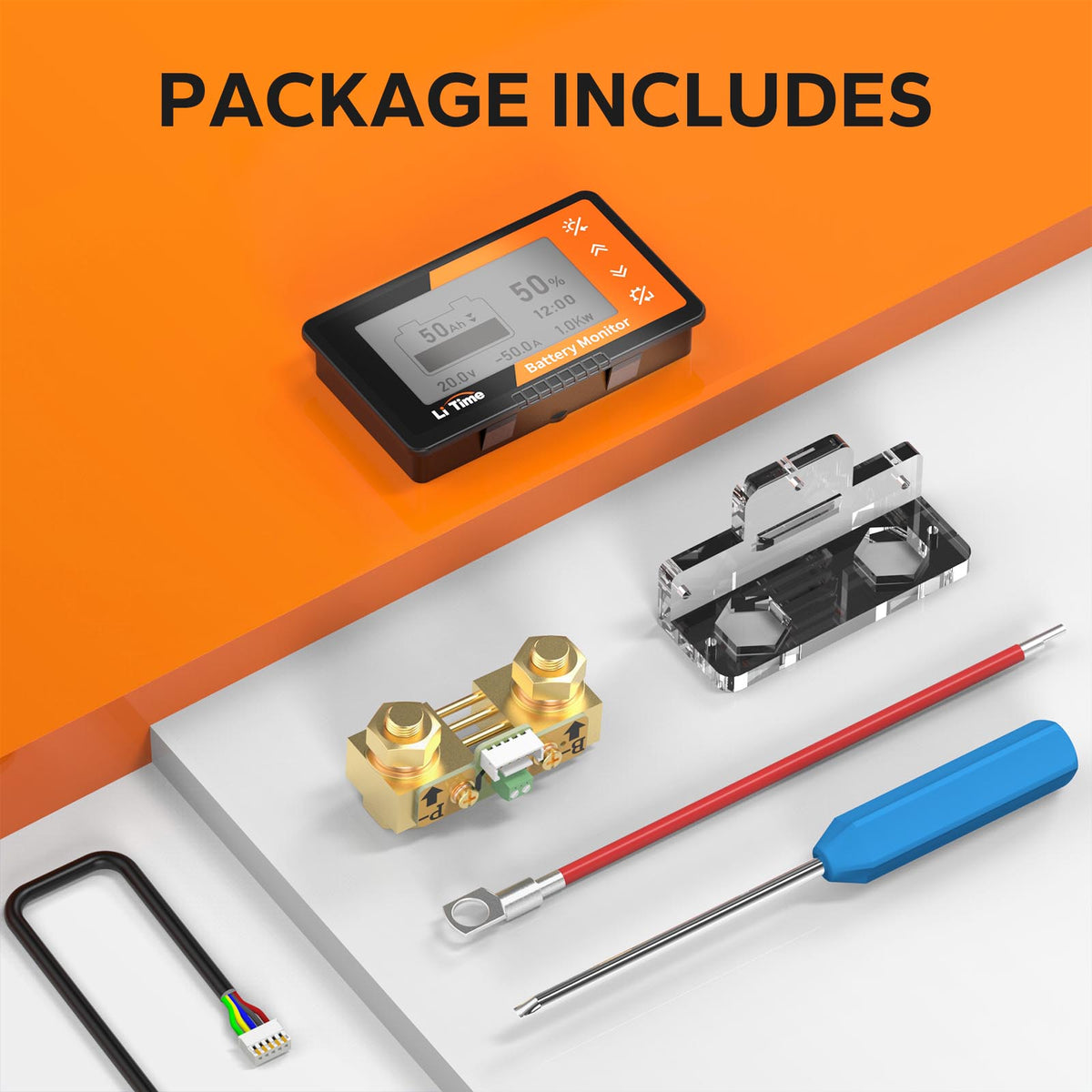

【Package Include】LCD Monitor Screen*1, 500A Shunt*1, Shunt Holder*1, 20ft Shielded Wire*1, 20AWG 3ft (1M) Power Wire*1,Screwdriver*1, Mounting Screws*3, Manual*1.
Specification Of LiTime 500A Battery Monitor With Shunt
| CHARACTERISTICS | PARAMETERS | |
|---|---|---|
| Monitoring Specification | Operating Voltage Range | 8–120V |
| Current Measurement Range | 0–500A | |
| Battery Capacity Measurement Range | 0–9999Ah | |
| Compatible Battery Voltage | 8–120V | |
| Installation & Control | Mounting Method | Bracket Mounting |

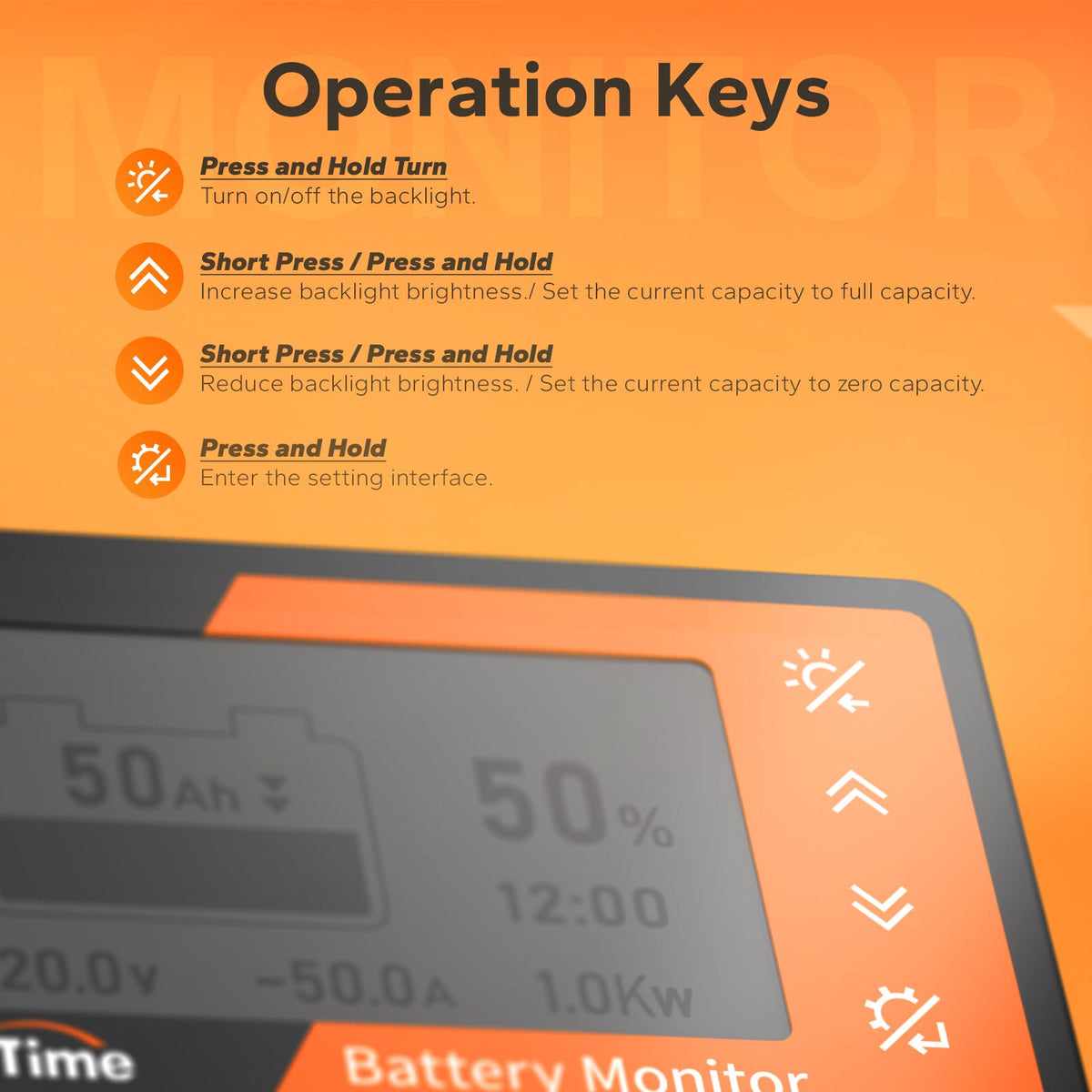

| Control Method | Button Control | |
| General Specification | Net Weight | 0.74 lbs / 0.34 kg |
| Dimensions | 100 × 61 × 18 mm / 3.94 × 2.4 × 0.71 in | |
