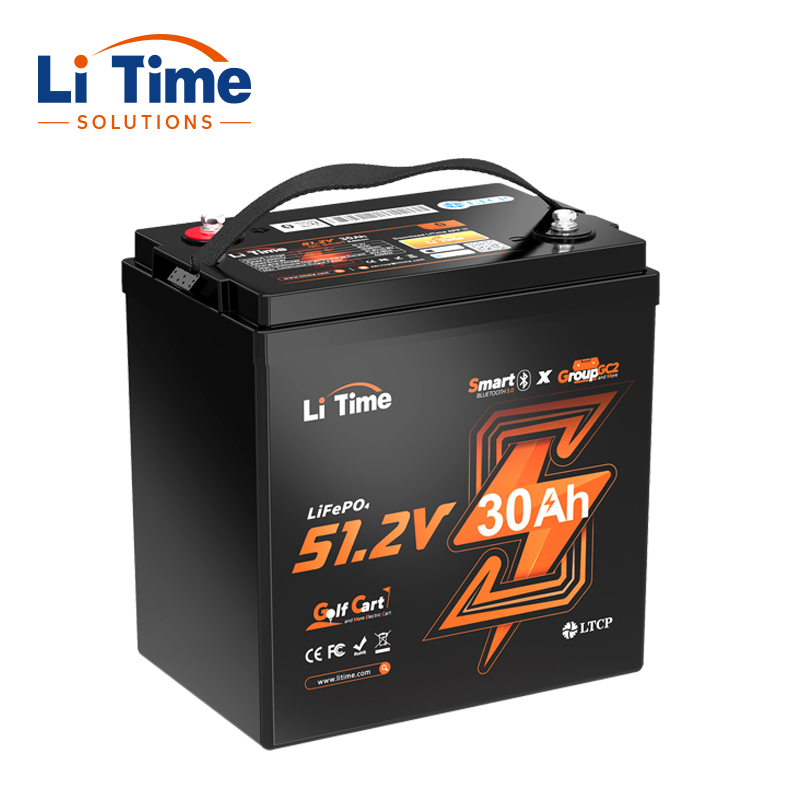

LiTime 51.2V 30Ah GC2 Smart LiFePO4 Golf Cart Battery with Bluetooth

LiTime 51.2V 30Ah GC2 Smart LiFePO4 Golf Cart Battery with Bluetooth

1536Wh Smart LiFePO4 golf cart battery designed for 2000W-3000W golf carts, replacing traditional 6V/8V GC2 lead-acid batteries.

Bluetooth 5.0 Monitoring: Easily monitor battery status through mobile devices for convenient battery management.
4000 Cycles Lifespan: LiFePO4 chemistry provides long-lasting performance and helps reduce battery replacement frequency.
4096W Max. Continuous Power: Supports up to 4096W continuous power, with 80A continuous discharge current and 300A pulse discharge current.
100A BMS Protection: Built-in protection against overcharge, overcurrent, overvoltage, short circuit and temperature-related issues.
GC2 Size Design: Designed to fit golf cart applications as a replacement for traditional 6V/8V GC2 lead-acid batteries.
Scalable 51.2V Platform: Supports up to 8 batteries in parallel for applications requiring increased capacity and power.
IP65 Protection: Durable ABS housing with IP65 protection for reliable performance in outdoor environments.
Wide Applications: Ideal for golf carts, low-speed vehicles, marine applications, outdoor power systems and energy storage systems.

Specification Of LiTime 51.2V 30Ah GC2 Smart LiFePO4 Golf Cart Battery with Bluetooth

CHARACTERISTICS	PARAMETERS
Basic Specification	Nominal Voltage	51.2V
	Nominal Capacity	30Ah
	Nominal Energy	1536Wh
	Internal Resistance	≤40mΩ
	Function	Bluetooth/Low Temp
	Max. Continuous Output Power	4096W
	BMS Board	100A
	Max. Batteries in Series and Parallel	8P1S
	System Max. Extended Power	32.768kW
	System Max. Extended Energy	12.288kWh
Charge Specification	Max. Continuous Charging Current	30A
	Recommended Charging Current	6A
	Recommended Charging Voltage	57.6±0.8V
Discharge Specification	Max. Continuous Discharging Current	80A(2.67C)
Discharge Specification	Peak Discharging Current	300A(10C)
Environment Specification	Storage Temperature Range	-10°C-50°C /14°F-122°F
	Recommended Storage Temperature	10°C-35°C /50°F-95°F
	Charging Temperature Range	0°C-50°C /32°F-122°F
	Discharging Temperature Range	-20°C-60°C /-4°F-140°F

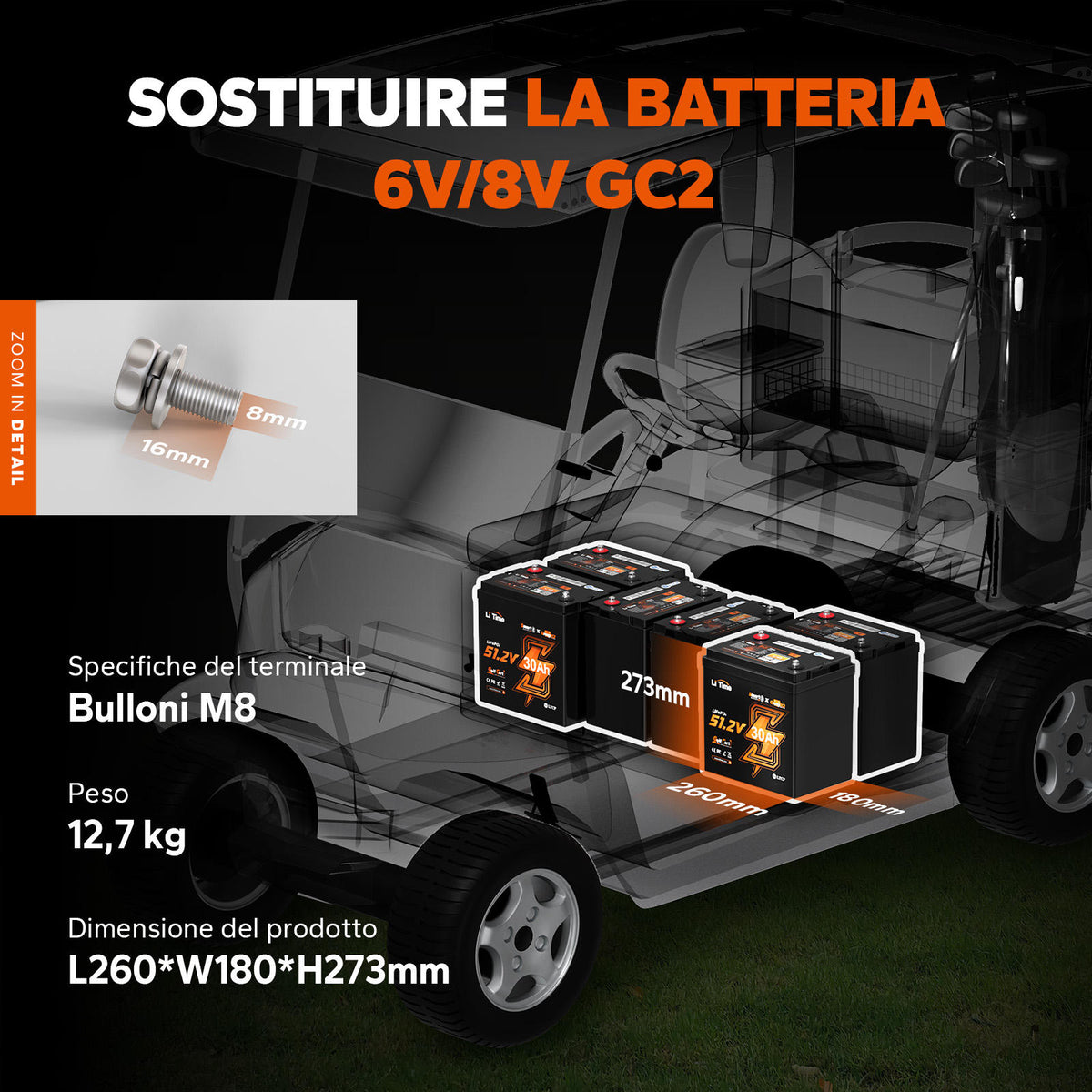

Mechanical Specification	Dimension	L10.24W7.09H10.43inch 260180265mm
	Weight	Approx.29.03lbs/13.17kg
	Terminal Type	M8*16mm
	Terminal Torque	13±1N·m
	Case Material	ABS
	IP Rating	IP65
	Cell Type-chemistry	LiFePO4
	BCI	GC2
Safety Specification	Certifications	CE,FCC,RoHS,UN38.3,UL-2271
Safety Specification	Protection	Over-temperature Over-discharge Over-current Over-voltage Short-circuit Low-temperature

Project Support & Global Services

LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers with energy products, compatible power system accessories, technical assistance, and global supply services.

Product Selection & Technical Support

Our team provides product information and technical assistance for commercial and project-based applications, including product selection, system compatibility evaluation, technical documentation, and installation guidance.

Global Supply & Overseas Delivery

Selected in-stock products may be available for shipment from LiTime overseas warehouses. Availability, shipping methods, and delivery schedules depend on the product model, quantity, inventory, and destination.

Technical Documents & Compliance

Available documentation may include product datasheets, user manuals, installation instructions, applicable certification documents, and relevant shipping documents.

Document availability and certification coverage vary by product model and destination market.

Packing & Shipment Support

Products are packed with appropriate protective materials for transportation. Bulk-order packaging and shipment arrangements can be discussed based on product type, order quantity, and destination.

Commercial Purchasing & Project Cooperation

LiTime supports bulk purchasing, distributor cooperation, and project-based supply arrangements. Our team can assist with product selection, technical documentation, order coordination, and delivery planning.

Product Liability Insurance

LiTime products are covered by AIG Product Liability Insurance, effective from May 22, 2026, subject to applicable policy terms and coverage.

After-Sales Support

LiTime provides technical assistance and after-sales support. Warranty terms and available services may vary by product model and market. Please refer to the applicable product documentation for details.

1. What Products Does LiTime Solutions Provide?

LiTime Solutions provides a range of lithium battery accessories and power system components, including chargers, inverters, DC-DC chargers, solar charge controllers, monitoring devices, and related energy solutions.

Our products are designed to support different power requirements and application scenarios.

2. How Do I Choose the Right Product for My Application?

The suitable product depends on your system voltage, power requirements, application environment, installation conditions, and compatibility requirements.

Please provide your battery model, system voltage, application, and required specifications. Our team can help recommend a suitable solution.

3. Are LiTime Products Compatible with Different Battery Systems?

Compatibility depends on the product type, voltage platform, electrical specifications, and application requirements.

Please check the product specifications or contact our team for compatibility confirmation before purchase.

4. Do You Support Wholesale and Business Customers?

Yes. LiTime Solutions supports distributors, wholesalers, dealers, installers, system integrators, and project-based customers.

We provide product support, technical documents, and supply solutions for commercial applications.

5. Can You Provide Technical Documents?

Yes. Depending on the product model, we can provide technical documents such as product specifications, user manuals, installation guides, and relevant shipping documents.

Please contact our team if you need specific documents for evaluation or projects.

6. Do You Provide OEM or Custom Solutions?

LiTime supports customization requests based on product type, order quantity, and project requirements.

Please contact our sales team with your application details and expected quantity for evaluation.

7. How Are Products Packaged for Shipment?

Products are packed with appropriate protective materials to ensure safe transportation.

For bulk orders, customized packaging and shipment arrangements can be discussed according to product type, quantity, and destination.

8. Do You Support Overseas Warehouse Delivery?

Selected products may be available from LiTime overseas warehouses.

Availability, delivery time, and shipping options depend on product model, inventory status, order quantity, and destination.

9. What After-Sales Support Does LiTime Provide?

LiTime provides technical assistance, product documentation support, and after-sales service.

Warranty terms and service availability may vary depending on product model and market.

10. How Can I Request a Quote?

Please provide your company name, product model, required quantity, application details, destination country, and any specific technical requirements.

Our team will review your requirements and provide suitable purchasing support.

Product Datasheet Download

Download the product specification sheet for technical review, project evaluation, or purchasing reference.

Download Datasheet
